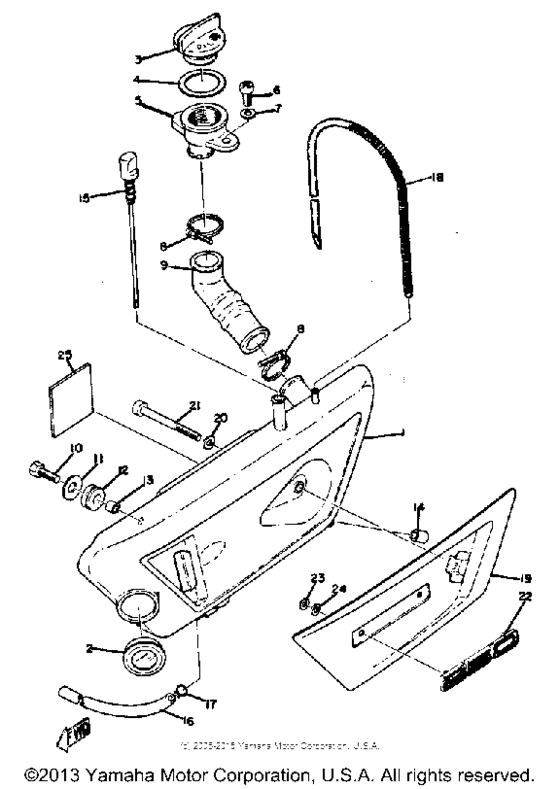

Oil tank Diagram Yamaha R3/ R5
- Year
- 1970
- Sales region
- USA
- Engine Capacity
- 500
- Model
- R5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
278-21705-00-34
Oil Tank Assembly
|
278-21705-00-34 |
— | ||
|
1
|
1
278-21705-00-71
Oil Tank Assembly
|
278-21705-00-71 |
— | ||
|
2
|
2
214-21761-00-00 Gauge, Level |
214-21761-00-00 |
from US $19.41 |
||
|
3
|
3
214-21771-00-00 Body, Cap |
214-21771-00-00 |
from US $30.58 |
||
| replacement | |||||
|
3
|
3
1A0-21771-00-00 Body, Cap |
1A0-21771-00-00 |
from US $36.75 |
||
|
4
|
4
90430-29114-00 Gasket |
90430-29114-00 |
from US $2.83 |
||
|
5
|
5
278-21752-00-00
Tube, Filler 1
|
278-21752-00-00 |
— | ||
|
6
|
6
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
8
|
8
904-60240-05-00
Clamp, Hose
|
904-60240-05-00 |
— | ||
|
9
|
9
278-21753-00-00
Boss, Connector
|
278-21753-00-00 |
— | ||
|
10
|
10
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
10
|
10
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
11
|
11
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
11
|
11
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
12
|
12
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
|
13
|
13
90387-065L7-00 Collar |
90387-065L7-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
90387-06026-00 Collar |
90387-06026-00 |
from US $1.56 |
||
|
14
|
14
437-21779-00-00 Damper, Oil Tank |
437-21779-00-00 |
from US $8.78 |
||
|
15
|
15
1A0-21792-00-00
Gauge, Oil
|
1A0-21792-00-00 |
— | ||
|
16
|
16
904-45091-22-00 Hose |
904-45091-22-00 |
from US $15.73 |
||
|
17
|
17
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
18
|
18
278-21745-00-00
Pipe, Oil Tnk Brthr
|
278-21745-00-00 |
— | ||
|
19
|
19
278-21788-00-34
Cover
|
278-21788-00-34 |
— | ||
|
19
|
19
278-21788-00-71
Cover
|
278-21788-00-71 |
— | ||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
21
|
21
98580-06565-00 Screw, Pan Head |
98580-06565-00 |
from US $7.23 |
||
|
22
|
22
278-21786-02-93
Emblem 6
|
278-21786-02-93 |
— | ||
|
22
|
22
278-21786-02-71
Emblem 6
|
278-21786-02-71 |
— | ||
|
23
|
23
90183-04005-00 Nut Spring 116283170100 |
90183-04005-00 |
from US $1.70 |
||
|
24
|
24
90202-04003-00 Washer, Plate |
90202-04003-00 |
from US $2.41 |
||
|
25
|
25
214-21268-00-00
Seal
|
214-21268-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
