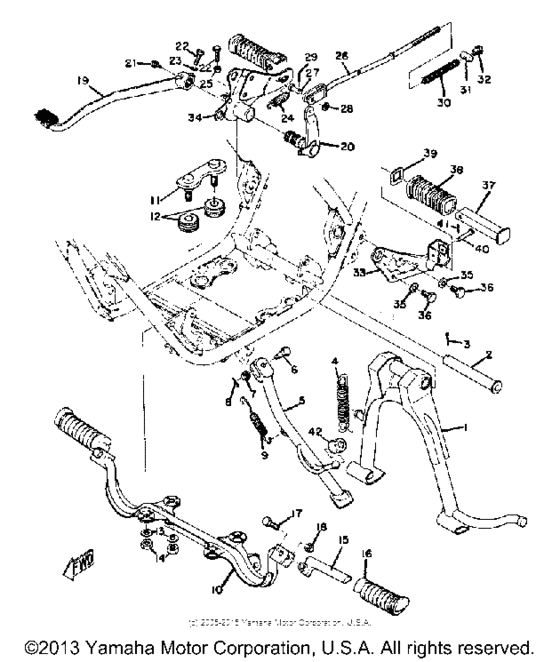

Stand - footrest - brake pedal Diagram Yamaha R3/ R5
- Year
- 1970
- Sales region
- USA
- Engine Capacity
- 500
- Model
- R5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
278-27111-00-00
Stand, Main
|
278-27111-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
278-27112-00-00
Shaft, Main Stand
|
278-27112-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
3
|
3
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
4
|
4
905-06350-58-00
Spring, Tension
|
905-06350-58-00 |
— | ||
|
5
|
5
278-27311-01-00
Stand, Side
|
278-27311-01-00 |
— | ||
|
6
|
6
90102-10006-00 Bolt, With Hole (278-27317-00)278-27317-00 |
90102-10006-00 |
from US $8.64 |
||
|
7
|
7
953-03109-00-00 Nut, Castle |
953-03109-00-00 |
from US $5.29 |
||
| replacement | |||||
|
7
|
7
953-07109-00-00 Nut, Castle |
953-07109-00-00 |
from US $4.11 |
||
|
8
|
8
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
9
|
9
905-07290-04-00 Spring, Tension (214-27316-00)214-27316-00 |
905-07290-04-00 |
US $8.22 |
||
| replacement | |||||
|
9
|
9
90506-26270-00 Spring, Tension (1L9)214-27316-00 |
90506-26270-00 |
from US $8.22 |
||
|
10
|
10
278-27412-00-00
Bracket, Footrest 1
|
278-27412-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
278-27416-00-00
Bolt, Footrest
|
278-27416-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
999-99009-61-00
Footrest Damp Set
|
999-99009-61-00 |
— | ||
|
13
|
13
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
14
|
14
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
14
|
14
95314-10600-00 Nut |
95314-10600-00 |
from US $1.45 |
||
|
15
|
15
278-27451-00-00
Footrest
|
278-27451-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
156-27413-00-00 Cover, Footrest |
156-27413-00-00 |
from US $40.62 |
||
|
17
|
17
901-09083-76-00
Bolt (157-27416-00)
157-27416-00 |
901-09083-76-00 |
— | ||
|
18
|
18
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
18
|
18
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
19
|
19
278-27211-00-33
Pedal, Brake
|
278-27211-00-33 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
1A0-27212-00-00
Shaft, Brake Pedal
|
1A0-27212-00-00 |
— | ||
|
21
|
21
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
22
|
22
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
22
|
22
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
23
|
23
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
24
|
24
905-06200-42-00
Spring, Tension
|
905-06200-42-00 |
— | ||
|
25
|
25
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
25
|
25
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
26
|
26
276-27231-00-00
Rod, Brake
|
276-27231-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
90240-06006-00 Pin, Clevis |
90240-06006-00 |
from US $3.68 |
||
|
28
|
28
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
29
|
29
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
29
|
29
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
30
|
30
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.70 |
||
|
31
|
31
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
32
|
32
90179-06411-00 Nut |
90179-06411-00 |
from US $1.34 |
||
|
33
|
33
278-21445-00-00
Stay, Muffler 1
|
278-21445-00-00 |
— | ||
|
34
|
34
360-21446-00-00
Stay, Muffler 2
|
360-21446-00-00 |
— | ||
|
35
|
35
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
36
|
36
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
36
|
36
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.05 |
||
|
36
|
36
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $1.64 |
||
|
37
|
37
168-27431-10-00
Footrest, Rear 1
|
168-27431-10-00 |
— | ||
| replacement | |||||
|
37
|
37
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
38
|
38
307-27433-00-00
Cover, Rr Footrest
RR FOOTREST |
307-27433-00-00 |
— | ||
|
39
|
39
902-09181-17-00
Washer, Spec''l Shap (168-274
168-27437 |
902-09181-17-00 |
— | ||
|
40
|
40
91701-06035-00 Pin, Clevis (2F9) |
91701-06035-00 |
from US $1.98 |
||
|
41
|
41
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.55 |
||
|
42
|
42
278-27314-00-00
Stopper
|
278-27314-00-00 |
— | ||
| replacement | |||||
|
42
|
42
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
