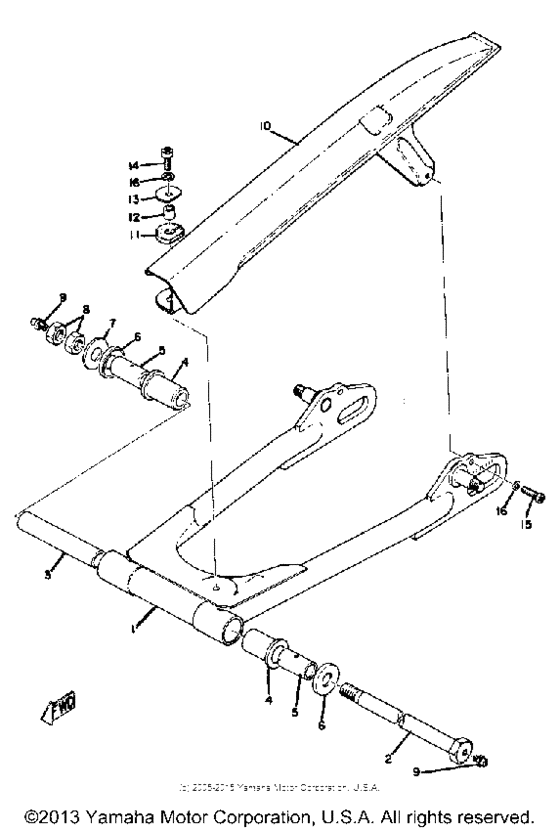

Swing arm - chain case Diagram Yamaha R3/ R5
- Year
- 1970
- Sales region
- USA
- Engine Capacity
- 500
- Model
- R5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
278-22110-00-33
Rear Arm
|
278-22110-00-33 |
— | ||
|
2
|
2
156-22141-00-00
Shaft, Pivot
|
156-22141-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
903-87161-28-00
Collar (150-22126-00)
150-22126-00 |
903-87161-28-00 |
— | ||
|
4
|
4
903-86220-18-00 Bush, Spec''l Nylon (148-22123-148-22123- |
903-86220-18-00 |
from US $29.04 |
||
|
5
|
5
903-87162-26-00
Collar (150-22124-00)
150-22124-00 |
903-87162-26-00 |
— | ||
|
6
|
6
1A0-22128-00-00
Cover, Thrust 1
|
1A0-22128-00-00 |
— | ||
|
7
|
7
240-22127-00-00 Shim (0.3T)Shim,rear arm (26-34-0.1) 0.3T |
240-22127-00-00 |
from US $8.78 |
||
|
8
|
8
901-70141-47-00
Nut, Hexagon
|
901-70141-47-00 |
— | ||
|
9
|
9
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
10
|
10
278-22311-00-93
Case, Chain
|
278-22311-00-93 |
— | ||
|
11
|
11
278-22332-00-00
Damper, Chain Case
|
278-22332-00-00 |
— | ||
|
12
|
12
90387-062N2-00 Collar |
90387-062N2-00 |
from US $1.42 |
||
|
13
|
13
902-09060-34-00
Washer, Spec''l Shap
|
902-09060-34-00 |
— | ||
|
14
|
14
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
15
|
15
98580-06018-00 Screw, Pan Head (N151) |
98580-06018-00 |
US $3.26 |
||
| replacement | |||||
|
15
|
15
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
