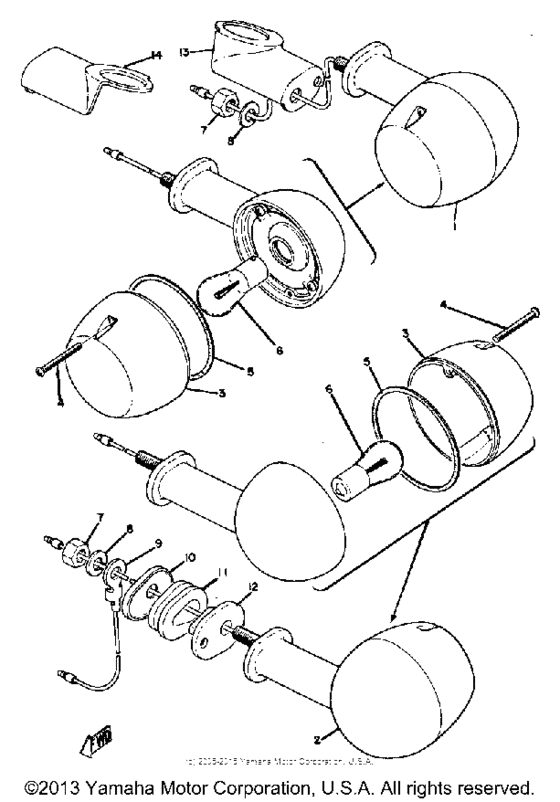

Turnsignal Diagram Yamaha R3/ R5
- Year
- 1970
- Sales region
- USA
- Engine Capacity
- 500
- Model
- R5
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
278-83310-71-93
Frt Flshr Lite Assembly
|
278-83310-71-93 |
— | ||
|
2
|
2
278-83330-76-93
R Flshr Lite Assembly
|
278-83330-76-93 |
— | ||
|
3
|
3
183-83312-70-00 Lens, Flasher |
183-83312-70-00 |
from US $6.62 |
||
|
3
|
3
211-83332-75-00
Lens, Flasher
|
211-83332-75-00 |
— | ||
|
4
|
4
183-83333-71-00 Screw, Lens Fitting |
183-83333-71-00 |
from US $5.95 |
||
|
5
|
5
183-83313-70-00 Gasket, Flshr Lens |
183-83313-70-00 |
from US $6.09 |
||
|
6
|
6
256-83311-70-XX
Bulb (12V-27W)
12V-27W |
256-83311-70-XX |
— | ||
|
7
|
7
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
8
|
8
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
9
|
9
256-84313-01-00
Wire, Earth
|
256-84313-01-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
90209-08028-00
Washer, Spec''l Shap
|
90209-08028-00 |
— | ||
|
11
|
11
256-83321-00-00
Damper, Flasher 1
|
256-83321-00-00 |
— | ||
|
12
|
12
256-83316-00-00
Collar, Flasher 1
|
256-83316-00-00 |
— | ||
|
13
|
13
278-83318-00-00
Stay, Flasher 1
PN315 |
278-83318-00-00 |
— | ||
|
14
|
14
278-83328-00-00
Stay, Flasher 2
|
278-83328-00-00 |
— | ||
