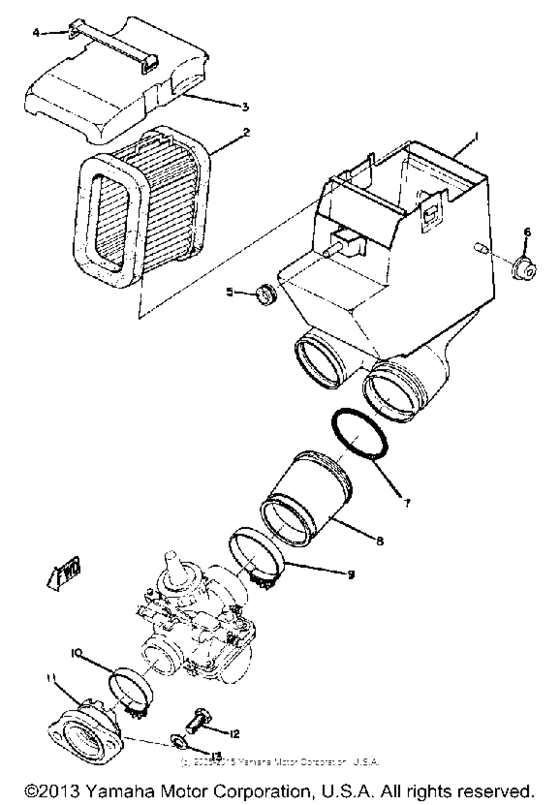

Air cleaner Diagram Yamaha R3/ R5
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 500
- Model
- R5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
278-14411-01-00
Case, Air Cleaner 1
6475R5C |
278-14411-01-00 |
— | ||
|
2
|
2
278-14451-00-00
Element, Air Clnr
|
278-14451-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
278-14412-01-00
Cap, Cleaner Case 1
475R5C |
278-14412-01-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
475R5C |
999-99999-99-00 |
— | ||
|
4
|
4
278-14459-00-00
Holder, Guide
|
278-14459-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
90480-10091-00 Grommet (214-21746-00)214-21746-00 |
90480-10091-00 |
from US $2.83 |
||
|
6
|
6
278-14426-00-00
Damper 2
|
278-14426-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
905-06061-07-00
Spring, Tension (278-14456-00)
278-14456-00 |
905-06061-07-00 |
— | ||
|
8
|
8
278-14453-00-00
Joint, Air Clnr 1
|
278-14453-00-00 |
— | ||
|
9
|
9
90460-49058-00 Clamp, Hose |
90460-49058-00 |
from US $2.98 |
||
|
10
|
10
90460-39052-00 Clamp, Hose |
90460-39052-00 |
from US $7.79 |
||
| replacement | |||||
|
10
|
10
90460-41191-00 Clamp, Hose (5R2) |
90460-41191-00 |
from US $7.79 |
||
|
11
|
11
278-13555-00-00
Manifold, Intake
|
278-13555-00-00 |
— | ||
|
12
|
12
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
12
|
12
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.05 |
||
|
12
|
12
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $1.64 |
||
|
13
|
13
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
