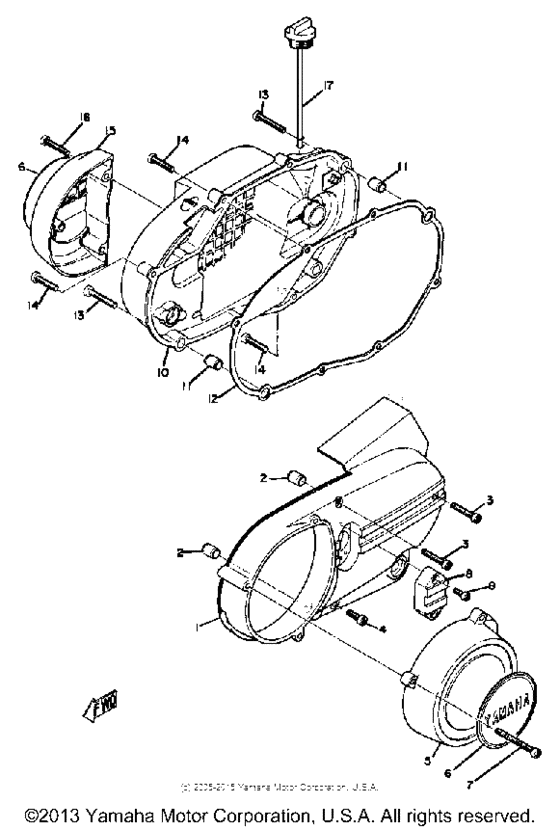

Crankcase cover Diagram Yamaha R3/ R5
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 500
- Model
- R5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
278-15411-00-00
Cover, Crankcase L
|
278-15411-00-00 |
— | ||
|
2
|
2
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
2
|
2
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
3
|
3
98506-06035-00 Screw Pan Head J |
98506-06035-00 |
from US $1.21 |
||
| replacement | |||||
|
3
|
3
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.21 |
||
|
4
|
4
98516-06020-00 Screw Pan Head |
98516-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
4
|
4
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.13 |
||
|
5
|
5
278-15415-00-00
Cover, Generator
|
278-15415-00-00 |
— | ||
|
6
|
6
278-15425-00-00
Cover, Generator R
|
278-15425-00-00 |
— | ||
|
7
|
7
98506-06060-00 Screw Pan Head |
98506-06060-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
98507-06060-00 Screw, Pan Head |
98507-06060-00 |
from US $1.34 |
||
|
8
|
8
278-15417-00-00
Cover, Cap
|
278-15417-00-00 |
— | ||
|
9
|
9
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
9
|
9
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
10
|
10
278-15421-00-00
Cover, Crankcase R
|
278-15421-00-00 |
— | ||
|
11
|
11
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
11
|
11
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
12
|
12
278-15461-02-00 Gasket, Crcs Cvr 2 |
278-15461-02-00 |
from US $21.17 |
||
| replacement | |||||
|
12
|
12
278-15461-12-00 Gasket, Crank Case Cover (R.h) |
278-15461-12-00 |
from US $37.39 |
||
|
13
|
13
98506-06040-00 Screw, Pan Head |
98506-06040-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
98507-06040-00 Screw, Pan Head |
98507-06040-00 |
from US $1.56 |
||
|
14
|
14
98516-06030-00 Screw, Pan Head |
98516-06030-00 |
US $2.13 |
||
| replacement | |||||
|
14
|
14
98517-06030-00 Screw, Pan Head |
98517-06030-00 |
from US $1.34 |
||
|
15
|
15
278-15416-00-00
Cover, Oil Pump
|
278-15416-00-00 |
— | ||
|
16
|
16
98506-06035-00 Screw Pan Head J |
98506-06035-00 |
from US $1.21 |
||
| replacement | |||||
|
16
|
16
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.21 |
||
|
17
|
17
278-15363-00-00
Plug, Oil
|
278-15363-00-00 |
— | ||
