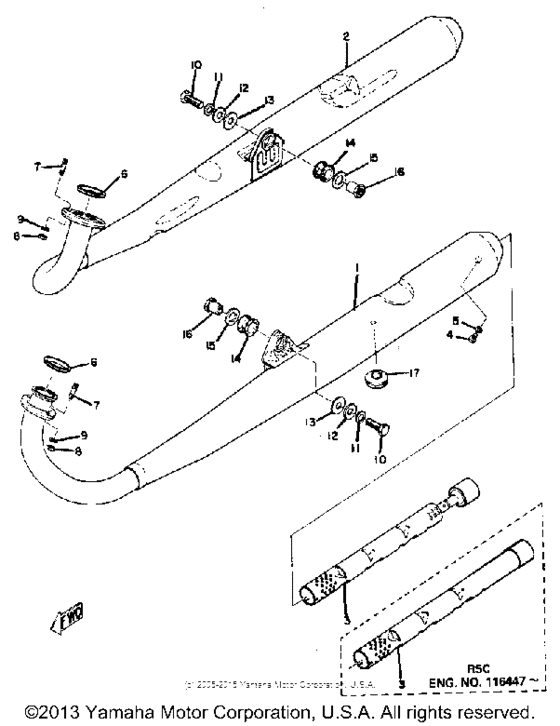

Exhaust Diagram Yamaha R3/ R5
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 500
- Model
- R5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
278-14610-01-00
Exhaust Pipe Assembly L
|
278-14610-01-00 |
— | ||
|
1
|
1
278-14610-61-00
Exhaust Pipe Assembly L
|
278-14610-61-00 |
— | ||
|
2
|
2
278-14620-51-00
Exhaust Pipe Assembly R
4475R5C |
278-14620-51-00 |
— | ||
|
2
|
2
278-14620-61-00
Exhaust Pipe Assembly R
|
278-14620-61-00 |
— | ||
|
3
|
3
278-14753-00-00
Silencer, Exhaust
|
278-14753-00-00 |
— | ||
|
3
|
3
278-14753-50-00
Silencer, Exhaust 002
002 |
278-14753-50-00 |
— | ||
|
4
|
4
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010- |
985-80060-10-00 |
from US $1.42 |
||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
6
|
6
152-14613-00-00
Gasket, Exhaust Pipe
|
152-14613-00-00 |
— | ||
| replacement | |||||
|
6
|
6
3PA-14613-10-00 Gasket, Exhaust Pipe |
3PA-14613-10-00 |
from US $9.35 |
||
|
7
|
7
90116-08166-00 Bolt, Stud |
90116-08166-00 |
from US $10.20 |
||
| replacement | |||||
|
7
|
7
90116-08408-00 Bolt, Stud |
90116-08408-00 |
from US $10.20 |
||
|
8
|
8
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
8
|
8
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
9
|
9
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
10
|
10
901-01102-57-00
Bolt, Flange
|
901-01102-57-00 |
— | ||
| replacement | |||||
|
10
|
10
95023-10035-00
Bolt
|
95023-10035-00 |
— | ||
|
11
|
11
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
12
|
12
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.07 |
||
|
13
|
13
90201-10437-00 Washer, Plate |
90201-10437-00 |
from US $1.65 |
||
| replacement | |||||
|
13
|
13
90201-105R9-00 Washer, Plate |
90201-105R9-00 |
from US $1.70 |
||
|
14
|
14
168-21639-00-00 Damper 2 |
168-21639-00-00 |
from US $2 |
||
|
15
|
15
90201-15239-00
Washer, Plate
|
90201-15239-00 |
— | ||
|
16
|
16
901-79101-23-00
Nut, Spec''l Shape
|
901-79101-23-00 |
— | ||
|
17
|
17
278-27114-00-00 Stopper, Main Stand |
278-27114-00-00 |
from US $4.68 |
||
|
18
|
18
1L9-24741-00-00 Pad, Seat |
1L9-24741-00-00 |
from US $8.36 |
||
