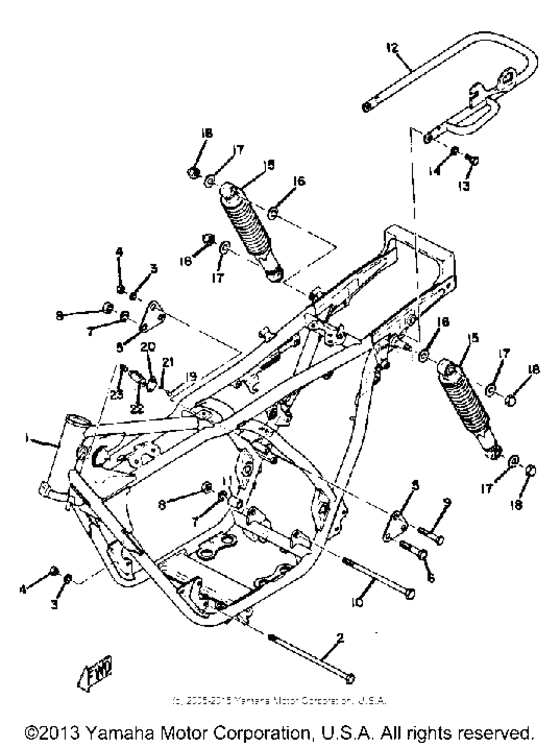

Frame - rear shocks Diagram Yamaha R3/ R5
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 500
- Model
- R5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
278-21110-00-33
Frame
|
278-21110-00-33 |
— | ||
|
2
|
2
901-05080-33-00
Bolt, Washer Based
|
901-05080-33-00 |
— | ||
|
3
|
3
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
4
|
4
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
4
|
4
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
5
|
5
248-21315-00-00
Stay, Engine 2
|
248-21315-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
97313-10055-00 Bolt, Hexagon (97322-10055) |
97313-10055-00 |
from US $4.21 |
||
| replacement | |||||
|
6
|
6
97013-10055-00 Bolt |
97013-10055-00 |
from US $6.40 |
||
|
7
|
7
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
8
|
8
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
95314-10600-00 Nut |
95314-10600-00 |
from US $1.45 |
||
|
9
|
9
97313-08055-00 Bolt (661)661 |
97313-08055-00 |
from US $4.12 |
||
| replacement | |||||
|
9
|
9
97013-08055-00 Bolt661 |
97013-08055-00 |
from US $3.55 |
||
|
10
|
10
958-21102-00-00
Bolt, Flange
|
958-21102-00-00 |
— | ||
|
11
|
11
903-87121-01-00
Collar
|
903-87121-01-00 |
— | ||
|
12
|
12
278-21645-00-00
Stay, Rear
|
278-21645-00-00 |
— | ||
|
13
|
13
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
13
|
13
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.05 |
||
|
13
|
13
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $1.64 |
||
|
14
|
14
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
15
|
15
278-22210-22-00
Shk/abs Assembly, Rear
|
278-22210-22-00 |
— | ||
|
16
|
16
90201-14218-00 Washer, Plate |
90201-14218-00 |
from US $1.70 |
||
| replacement | |||||
|
16
|
16
90201-15797-00 Washer, Plate (3X3) |
90201-15797-00 |
from US $1.66 |
||
|
17
|
17
90201-10437-00 Washer, Plate |
90201-10437-00 |
from US $1.65 |
||
| replacement | |||||
|
17
|
17
90201-105R9-00 Washer, Plate |
90201-105R9-00 |
from US $1.70 |
||
|
18
|
18
95303-10800-00 Nut |
95303-10800-00 |
US $3.12 |
||
| replacement | |||||
|
18
|
18
95380-10800-00 Nut |
95380-10800-00 |
from US $3.12 |
||
|
19
|
19
90269-04003-00 Rivet |
90269-04003-00 |
from US $2.55 |
||
|
20
|
20
134-23484-10-00 Cap, Handle Lock |
134-23484-10-00 |
from US $10.34 |
||
|
21
|
21
90206-04003-00
Washer, Wave
214-23488-00 |
90206-04003-00 |
— | ||
|
22
|
22
341-23408-01-00 Steering Lock Assembly (214-234214-234 |
341-23408-01-00 |
from US $86.63 |
||
|
23
|
23
905-02080-05-00
Spring, Conical (214-23485-00)
214-23485-00 |
905-02080-05-00 |
— | ||
