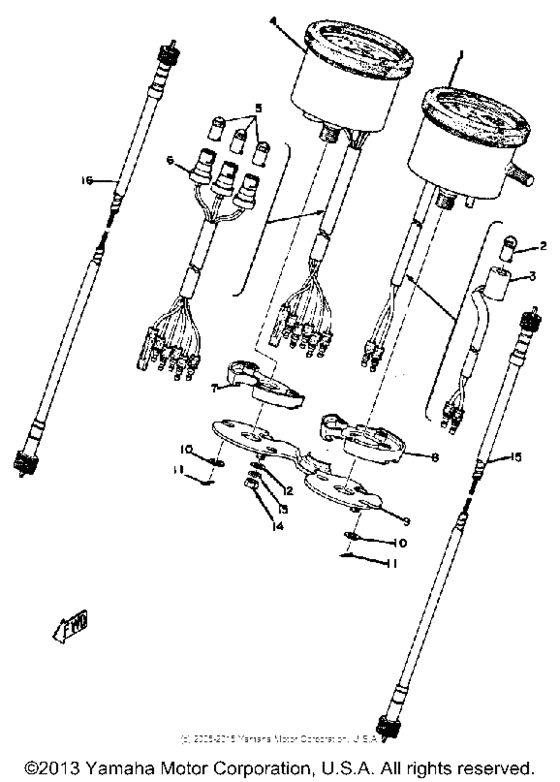

Meter Diagram Yamaha R3/ R5
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 500
- Model
- R5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
278-83570-40-00
Speedometer Assembly
|
278-83570-40-00 |
— | ||
|
2
|
2
123-83516-21-00 Bulb (12V3.4W)12V-3.4W PN315 |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
2
|
2
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W PN315 |
123-83516-21-XX |
US $63.70 |
||
|
3
|
3
278-83536-20-00
Socket, Meter
|
278-83536-20-00 |
— | ||
|
4
|
4
307-83540-00-00
Tachometer Assembly
|
307-83540-00-00 |
— | ||
|
5
|
5
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
5
|
5
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
6
|
6
278-83520-00-00
Socket Cord Assembly
|
278-83520-00-00 |
— | ||
|
7
|
7
278-83523-00-00
Damper
|
278-83523-00-00 |
— | ||
|
8
|
8
278-83526-00-00
Damper 2
|
278-83526-00-00 |
— | ||
|
9
|
9
278-83519-00-00
Bracket, Meter
|
278-83519-00-00 |
— | ||
|
10
|
10
90209-05029-00 Washer, Spec''l Shap (214-83524Washer (214-83524-00) 214-83524 |
90209-05029-00 |
from US $4.25 |
||
|
11
|
11
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
12
|
12
902-01060-38-00 Washer, Plate |
902-01060-38-00 |
from US $2.13 |
||
| replacement | |||||
|
12
|
12
90201-06431-00 Washer, Plate (371) |
90201-06431-00 |
from US $2.13 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
14
|
14
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
15
|
15
2A6-83550-01-00
Speedometer Cable
|
2A6-83550-01-00 |
— | ||
| replacement | |||||
|
15
|
15
2A6-83550-10-00
Speedometer Cable Assy
|
2A6-83550-10-00 |
— | ||
|
16
|
16
278-83560-01-00
Tachometer Cable (278-83560-00)
278-83560-00 |
278-83560-01-00 |
— | ||
