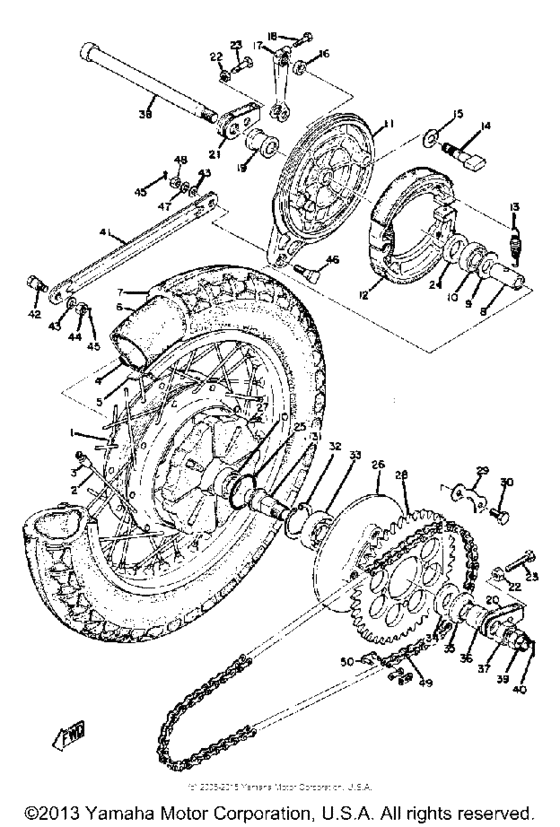

Rear wheel Diagram Yamaha R3/ R5
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 500
- Model
- R5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
278-25311-00-00
Hub, Rear
|
278-25311-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
152-25304-00-00
Spoke Set, Rear
|
152-25304-00-00 |
— | ||
|
2
|
2
278-25396-90-00
Spoke Set, Inner 2
|
278-25396-90-00 |
— | ||
|
2
|
2
278-25304-00-00
Spoke Set, Rear
|
278-25304-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
278-25397-90-00
Spoke Set, Outer 2
|
278-25397-90-00 |
— | ||
|
3
|
3
156-25398-00-00
Balancer, Wheel (15G)
15G |
156-25398-00-00 |
— | ||
| replacement | |||||
|
3
|
3
3HT-25398-00-00 Balancer, Wheel (15G)15G |
3HT-25398-00-00 |
from US $8.08 |
||
|
4
|
4
94418-18026-00
Rim 1.85X18
1.85X18 |
94418-18026-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
1.85X18 |
999-99999-99-00 |
— | ||
|
5
|
5
94325-18043-00 Band, Rim (538)2.50-18 |
94325-18043-00 |
from US $4.39 |
||
| replacement | |||||
|
5
|
5
94340-18086-00 Band, Rim (2.50-18)2.50-18 |
94340-18086-00 |
from US $4.39 |
||
|
6
|
6
94235-18085-00 Tube (2.75-18)2.75-18 |
94235-18085-00 |
US $22.55 |
||
| replacement | |||||
|
6
|
6
94232-18113-00 Tube2.75-18 |
94232-18113-00 |
from US $23.82 |
||
|
7
|
7
941-35183-06-00
3.50-18 Dunlop
|
941-35183-06-00 |
— | ||
|
8
|
8
905-60171-40-00
Spacer
|
905-60171-40-00 |
— | ||
|
9
|
9
146-25315-00-00 Flange, Spacer |
146-25315-00-00 |
from US $3.40 |
||
|
10
|
10
933-06303-09-00
Bearing
|
933-06303-09-00 |
— | ||
| replacement | |||||
|
10
|
10
93306-30317-00 Bearing |
93306-30317-00 |
from US $28.19 |
||
|
11
|
11
360-25026-10-38
Brake Shoe Plt Assembly
|
360-25026-10-38 |
— | ||
|
12
|
12
4L0-W2536-00-00 Brake Shoe Kit |
4L0-W2536-00-00 |
from US $62.45 |
||
| replacement | |||||
|
12
|
12
5R3-W253E-00-00 Brake Shoe Kit |
5R3-W253E-00-00 |
from US $62.45 |
||
|
13
|
13
90507-20002-00 Spring, Tension 2462533300 |
90507-20002-00 |
from US $2 |
||
|
14
|
14
4L0-25351-00-00 Camshaft |
4L0-25351-00-00 |
from US $29.38 |
||
|
15
|
15
148-25353-00-00 Shim, Camshaft |
148-25353-00-00 |
from US $2.98 |
||
|
16
|
16
148-25359-00-00 Seal, Camshaft |
148-25359-00-00 |
from US $2.69 |
||
|
17
|
17
214-25355-00-00 Lever, Camshaft |
214-25355-00-00 |
from US $49.05 |
||
|
18
|
18
970-11060-25-00
Bolt
97001-06025-00 PN315 |
970-11060-25-00 |
— | ||
| replacement | |||||
|
18
|
18
970-17060-25-00 Bolt97001-06025-00 PN315 |
970-17060-25-00 |
from US $1.34 |
||
|
19
|
19
148-25383-00-00
Collar, Wheel
|
148-25383-00-00 |
— | ||
|
20
|
20
1A1-25389-00-00
Puller, Chain 2
|
1A1-25389-00-00 |
— | ||
|
21
|
21
168-25389-00-00
Puller, Chain 2
|
168-25389-00-00 |
— | ||
| replacement | |||||
|
21
|
21
12R-25389-00-00
Puller, Chain 2
|
12R-25389-00-00 |
— | ||
|
22
|
22
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
22
|
22
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
23
|
23
90101-08699-00 Bolt |
90101-08699-00 |
from US $3.42 |
||
| replacements | |||||
|
23
|
23
90101-08060-00 Bolt |
90101-08060-00 |
from US $3.54 |
||
|
23
|
23
90101-08777-00 Bolt |
90101-08777-00 |
from US $1.66 |
||
|
24
|
24
93104-25008-00
Oil Seal
|
93104-25008-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
93210-55051-00 O-Ring |
93210-55051-00 |
US $2.55 |
||
| replacement | |||||
|
25
|
25
932-10545-34-00 O-Ring |
932-10545-34-00 |
from US $2.55 |
||
|
26
|
26
168-25366-00-00
Clutch, Hub
|
168-25366-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
168-25364-00-00
Damper
|
168-25364-00-00 |
— | ||
|
27
|
27
278-25364-00-00
Damper
|
278-25364-00-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
1A0-25440-20-00
Sprocket, Drivn 40T (40T)
40T 40T |
1A0-25440-20-00 |
— | ||
|
29
|
29
148-25412-00-00
Washer
|
148-25412-00-00 |
— | ||
|
30
|
30
90105-10007-00 Bolt |
90105-10007-00 |
from US $3.40 |
||
| replacement | |||||
|
30
|
30
90101-10303-00 Bolt |
90101-10303-00 |
from US $3.40 |
||
|
31
|
31
152-25387-00-00
Axle, Sprocket
|
152-25387-00-00 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
99009-52500-00 Circlip |
99009-52500-00 |
from US $4.96 |
||
|
33
|
33
93306-20503-00
Bearing
|
93306-20503-00 |
— | ||
| replacement | |||||
|
33
|
33
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
34
|
34
93102-32037-00
Oil Seal, Sd-Type
|
93102-32037-00 |
— | ||
| replacement | |||||
|
34
|
34
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
35
|
35
168-25367-00-00
Cover, Hub Dust
|
168-25367-00-00 |
— | ||
|
36
|
36
903-87234-41-00
Collar
|
903-87234-41-00 |
— | ||
|
37
|
37
901-70220-97-00
Nut, Hexagon
|
901-70220-97-00 |
— | ||
|
38
|
38
150-25381-00-00 Axle,wheel |
150-25381-00-00 |
US $58.36 |
||
| replacement | |||||
|
38
|
38
150-25381-01-00 Axle, Wheel |
150-25381-01-00 |
US $57.15 |
||
|
39
|
39
901-71160-07-00
Nut, Castle (275-25382-00)
275-25382-00 |
901-71160-07-00 |
— | ||
|
40
|
40
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
40
|
40
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
41
|
41
168-25371-00-00
Bar, Tension
|
168-25371-00-00 |
— | ||
| replacement | |||||
|
41
|
41
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
42
|
42
90109-08375-00
Bolt
168-25373-00 |
90109-08375-00 |
— | ||
| replacement | |||||
|
42
|
42
999-99999-99-00
Not Available
168-25373-00 |
999-99999-99-00 |
— | ||
|
43
|
43
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
44
|
44
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
44
|
44
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
45
|
45
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
45
|
45
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
46
|
46
90109-08184-00
Bolt
168-25378-00 |
90109-08184-00 |
— | ||
| replacement | |||||
|
46
|
46
999-99999-99-00
Not Available
168-25378-00 |
999-99999-99-00 |
— | ||
|
47
|
47
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
48
|
48
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
48
|
48
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
49
|
49
945-15250-92-00
Chain
92L |
945-15250-92-00 |
— | ||
|
50
|
50
946-15250-01-00
Joint, Chain
|
946-15250-01-00 |
— | ||
