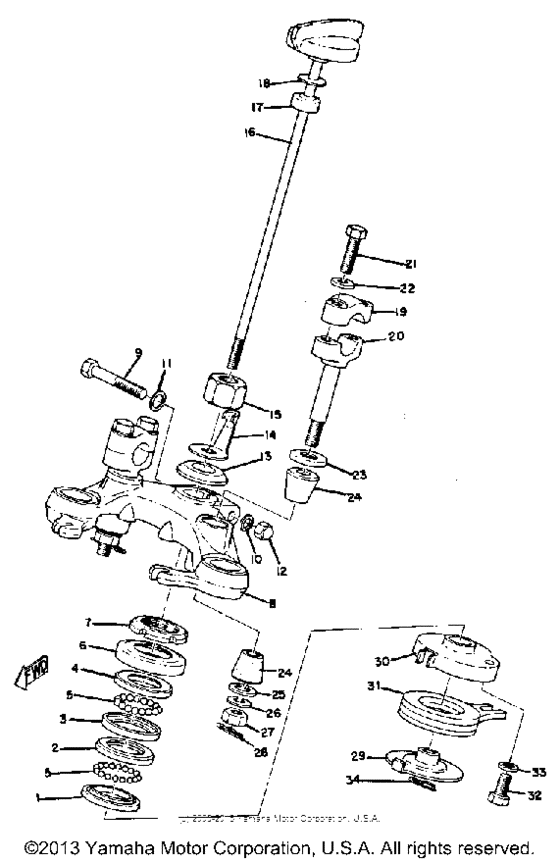

Steering Diagram Yamaha R3/ R5
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 500
- Model
- R5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $16.29 |
||
| replacement | |||||
|
1
|
1
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
2
|
2
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
|
3
|
3
183-23412-00-00 Race, Ball 2 |
183-23412-00-00 |
from US $6.09 |
||
| replacements | |||||
|
3
|
3
4FP-F3412-10-00 Race, Ball 2 |
4FP-F3412-10-00 |
from US $6.09 |
||
|
3
|
3
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
|
3
|
3
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
4
|
4
183-23411-00-00 Race, Ball 1 |
183-23411-00-00 |
from US $6.23 |
||
| replacement | |||||
|
4
|
4
4FP-F3411-20-00 Race, Ball 1 |
4FP-F3411-20-00 |
from US $6.23 |
||
|
5
|
5
93501-04011-00 Ball |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
5
|
5
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
6
|
6
136-23415-00-00 Cover, Ball Race 1 |
136-23415-00-00 |
from US $3.26 |
||
|
7
|
7
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
7
|
7
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.39 |
||
|
7
|
7
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
8
|
8
278-23435-00-00
Crown, Handle
|
278-23435-00-00 |
— | ||
|
9
|
9
97313-08055-00 Bolt (661)661 |
97313-08055-00 |
from US $4.12 |
||
| replacement | |||||
|
9
|
9
97013-08055-00 Bolt661 |
97013-08055-00 |
from US $3.55 |
||
|
10
|
10
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
11
|
11
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
12
|
12
95303-08800-00 Nut (Crown) (93501-08800-00)93501-08800-00 |
95303-08800-00 |
from US $3.12 |
||
|
13
|
13
902-09170-57-00
Washer, Spec''l Shap
|
902-09170-57-00 |
— | ||
|
14
|
14
246-23428-00-00
Spring
|
246-23428-00-00 |
— | ||
|
15
|
15
95303-16600-00
Nut (95301-16600)
95301-16600 |
95303-16600-00 |
— | ||
|
16
|
16
278-23419-00-00
Shaft, Damper
|
278-23419-00-00 |
— | ||
|
17
|
17
90202-06008-00 Washer, Plate |
90202-06008-00 |
from US $2.69 |
||
|
18
|
18
90201-06061-00 Washer, Plate |
90201-06061-00 |
from US $1.35 |
||
|
19
|
19
401-23441-00-98
Holder, Handle Upper
|
401-23441-00-98 |
— | ||
|
20
|
20
256-23442-00-98
Holder, Handle Lwr
|
256-23442-00-98 |
— | ||
|
21
|
21
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
21
|
21
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
21
|
21
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
21
|
21
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
22
|
22
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
23
|
23
90209-12102-00 Washer, Spec''l Shap |
90209-12102-00 |
from US $1.84 |
||
|
24
|
24
903-85120-20-00
Bush, Spec''l Rubber
|
903-85120-20-00 |
— | ||
|
25
|
25
90201-14218-00 Washer, Plate |
90201-14218-00 |
from US $1.70 |
||
| replacement | |||||
|
25
|
25
90201-15797-00 Washer, Plate (3X3) |
90201-15797-00 |
from US $1.66 |
||
|
26
|
26
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
27
|
27
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
27
|
27
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
28
|
28
90468-12006-00 Clip |
90468-12006-00 |
from US $1.84 |
||
|
29
|
29
169-23421-00-33
Plate, Damper 1
|
169-23421-00-33 |
— | ||
|
30
|
30
246-23423-00-00
Plate, Damper 3
|
246-23423-00-00 |
— | ||
|
31
|
31
169-23422-01-00
Plate, Damper 2
|
169-23422-01-00 |
— | ||
|
32
|
32
97313-08012-00 Bolt (661)661 |
97313-08012-00 |
from US $2.09 |
||
| replacements | |||||
|
32
|
32
999-99999-99-00
Not Available
661 |
999-99999-99-00 |
— | ||
|
32
|
32
97013-08012-00 Bolt661 |
97013-08012-00 |
from US $3.12 |
||
|
32
|
32
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
32
|
32
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
33
|
33
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
34
|
34
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
