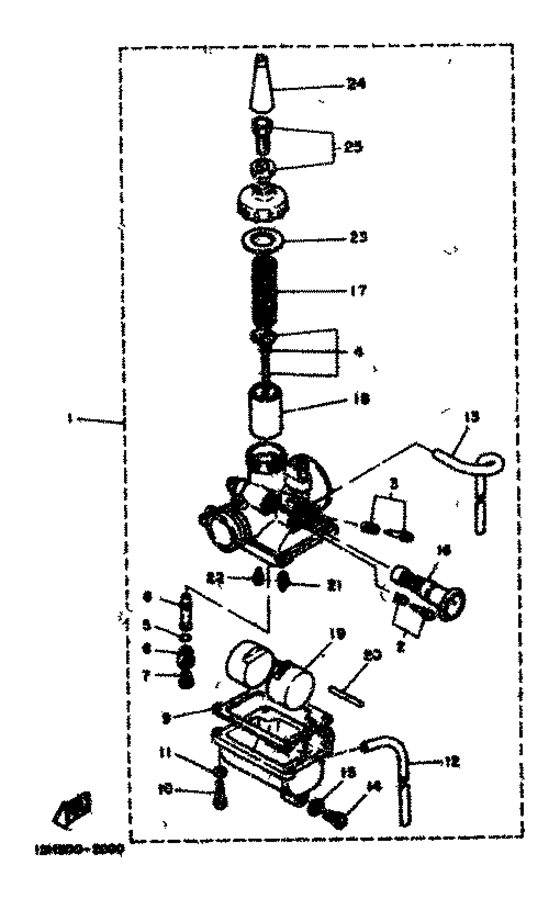

Carburetor Diagram Yamaha RD
- Year
- 1982
- Model code
- 12G
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- RD80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
12G-14101-00-00
Carburetor Assy 1
|
12G-14101-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
12G-14103-00-00 Throttle Screw Set |
12G-14103-00-00 |
from US $21.39 |
||
|
03
|
03
12G-14104-00-00 Air Screw Set |
12G-14104-00-00 |
from US $9.40 |
||
| replacement | |||||
|
03
|
03
36R-14104-00-00 Air Screw Set |
36R-14104-00-00 |
from US $9.92 |
||
|
04
|
04
12G-1490J-00-00
Needle
|
12G-1490J-00-00 |
— | ||
|
05
|
05
214-14147-00-00 O-Ring |
214-14147-00-00 |
from US $10.66 |
||
|
06
|
06
4A5-14145-00-00
Setter, Needle Jet
|
4A5-14145-00-00 |
— | ||
|
07
|
07
127-14143-30-00 Jet, Main #150 |
127-14143-30-00 |
US $14.69 |
||
|
08
|
08
2F5-14141-18-00
Nozzle, Main
|
2F5-14141-18-00 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
09
|
09
353-14184-00-00 Gasket, Float Chmbr |
353-14184-00-00 |
from US $13.18 |
||
|
10
|
10
98502-04014-00 Screw, Pan Head |
98502-04014-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
11
|
11
929-02041-00-00
Washer, Spring
|
929-02041-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
12
|
12
183-14196-00-00 Pipe, Airvent |
183-14196-00-00 |
from US $15.58 |
||
| replacement | |||||
|
12
|
12
23F-14197-00-00 Pipe, Airvent |
23F-14197-00-00 |
from US $15.58 |
||
|
13
|
13
183-14197-01-00 Pipe, Airvent |
183-14197-01-00 |
from US $18.56 |
||
|
14
|
14
98501-05008-00 Screw, Pan Head |
98501-05008-00 |
from US $1.07 |
||
| replacements | |||||
|
14
|
14
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
14
|
14
985-80050-08-00 Screw, Pan Head |
985-80050-08-00 |
from US $1.50 |
||
|
15
|
15
296-14117-00-00 Washer, Plug Screw |
296-14117-00-00 |
from US $3.68 |
||
|
16
|
16
4U5-14171-00-00 Plunger, Starter |
4U5-14171-00-00 |
from US $48.36 |
||
|
17
|
17
4U5-14131-00-00 Spring, Thrtl Valve |
4U5-14131-00-00 |
US $8.73 |
||
|
18
|
18
5L6-14112-20-00
Valve, Throttle 1
|
5L6-14112-20-00 |
— | ||
|
19
|
19
4U5-14185-00-00 Float |
4U5-14185-00-00 |
from US $42.98 |
||
|
20
|
20
353-14186-00-00 Pin, Float |
353-14186-00-00 |
from US $4.39 |
||
|
21
|
21
3L5-14190-01-00 Needle Valve Assy |
3L5-14190-01-00 |
from US $17.20 |
||
|
22
|
22
260-14142-20-00 Jet, Pilot (# 20) |
260-14142-20-00 |
from US $10.46 |
||
| replacement | |||||
|
22
|
22
260-14142-20-A0 Jet, Pilot #20 |
260-14142-20-A0 |
from US $11.21 |
||
|
23
|
23
4U5-14126-00-00 Gasket |
4U5-14126-00-00 |
from US $12.47 |
||
|
24
|
24
307-14169-10-00 Cap |
307-14169-10-00 |
from US $9.97 |
||
|
25
|
25
12G-14106-00-00 Cble Adjust Screw Set |
12G-14106-00-00 |
from US $10.63 |
||
