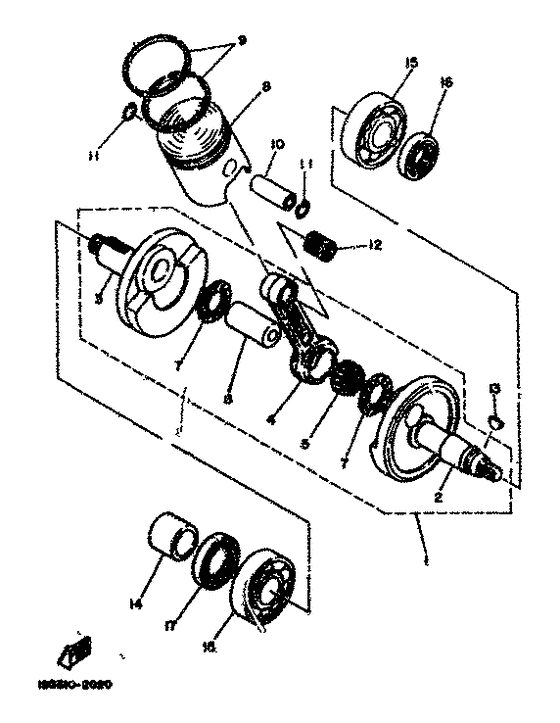

Crankshaft & Piston Diagram Yamaha RD
- Year
- 1982
- Model code
- 12G
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- RD80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5L6-11400-00-00
Crankshaft Assy
|
5L6-11400-00-00 |
— | ||
|
02
|
02
3M8-11412-00-00
Crank 1
|
3M8-11412-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
3M8-11422-00-00
Crank 2
|
3M8-11422-00-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
3R1-11651-01-00 Rod, Connecting (3R1-11651-00 |
3R1-11651-01-00 |
from US $123.10 |
||
|
05
|
05
93310-418K1-00 Bearing |
93310-418K1-00 |
from US $19.69 |
||
| replacement | |||||
|
05
|
05
93310-418C4-00 Bearing Cylinder #10 |
93310-418C4-00 |
from US $19.69 |
||
|
06
|
06
257-11681-00-00
Pin, Crank 1
|
257-11681-00-00 |
— | ||
| replacement | |||||
|
06
|
06
257-11681-10-00 Pin, Crank 1 |
257-11681-10-00 |
from US $29.75 |
||
|
07
|
07
90209-18112-00 Washer |
90209-18112-00 |
from US $3.72 |
||
|
08
|
08
3M8-11631-01-96
Piston Std
|
3M8-11631-01-96 |
— | ||
|
08
|
08
3M8-11635-01-00
Piston 1 O/s 0.25
Ap |
3M8-11635-01-00 |
— | ||
|
08
|
08
3M8-11636-01-00
Piston 2 O/s 0.50
Ap |
3M8-11636-01-00 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
Ap |
999-99999-99-00 |
— | ||
|
09
|
09
3M8-11610-02-00 Piston Ring Set (Std) |
3M8-11610-02-00 |
from US $54.23 |
||
| replacement | |||||
|
09
|
09
3M8-11610-03-00 Piston Ringset Std |
3M8-11610-03-00 |
from US $54.25 |
||
|
09
|
09
3M8-11610-12-00 Piston Ring SetAp |
3M8-11610-12-00 |
US $52.09 |
||
| replacement | |||||
|
09
|
09
3M8-11610-13-00 Piston Ringset 1StPiston ring set Ap |
3M8-11610-13-00 |
US $51.28 |
||
|
09
|
09
3M8-11610-22-00 Piston Ring SetAp |
3M8-11610-22-00 |
US $54.23 |
||
| replacement | |||||
|
09
|
09
3M8-11610-23-00
Piston Ringset 2Nd
Ap |
3M8-11610-23-00 |
— | ||
|
10
|
10
527-11633-00-00 Pin, Piston |
527-11633-00-00 |
from US $14.29 |
||
|
11
|
11
93450-13022-00 Circlip |
93450-13022-00 |
from US $1.70 |
||
|
12
|
12
93310-11268-00 Bearing |
93310-11268-00 |
from US $9.15 |
||
|
13
|
13
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.81 |
||
|
14
|
14
90387-205E9-00 Collar |
90387-205E9-00 |
from US $12.33 |
||
|
15
|
15
93306-20418-00 Bearing |
93306-20418-00 |
from US $21.96 |
||
| replacements | |||||
|
15
|
15
933-06204-68-00 Bearing(4Ed) |
933-06204-68-00 |
from US $29.27 |
||
|
15
|
15
93306-20458-00 Bearing |
93306-20458-00 |
from US $22.62 |
||
|
16
|
16
93102-20009-00 Oil SealUr |
93102-20009-00 |
from US $6.52 |
||
|
16
|
16
93102-20155-00 Oil SealUr |
93102-20155-00 |
from US $6.52 |
||
| replacement | |||||
|
16
|
16
93102-20009-00 Oil SealUr |
93102-20009-00 |
from US $6.52 |
||
|
17
|
17
93103-28011-00 Oil Seal, Sw-Type (93103-28100)Ur |
93103-28011-00 |
from US $6.40 |
||
|
17
|
17
93103-28126-00 Oil SealUr |
93103-28126-00 |
from US $7.65 |
||
| replacement | |||||
|
17
|
17
93103-28011-00 Oil Seal, Sw-Type (93103-28100)Ur |
93103-28011-00 |
from US $6.40 |
||
