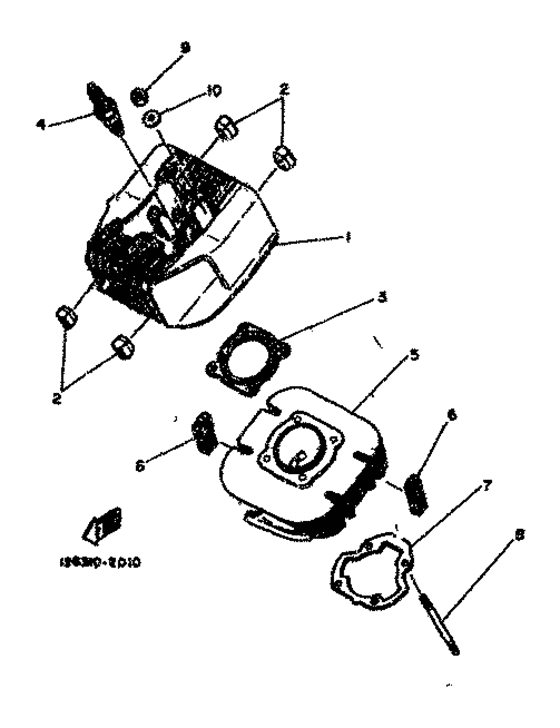

Cylinder Diagram Yamaha RD
- Year
- 1982
- Model code
- 12G
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- RD80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
12G-11111-00-00
Head, Cylinder 1
|
12G-11111-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
1T9-11161-00-00 Absorber 1 |
1T9-11161-00-00 |
US $4.53 |
||
|
03
|
03
12G-11181-00-00 Gasket, Cylinder Head 1 |
12G-11181-00-00 |
US $17.43 |
||
| replacement | |||||
|
03
|
03
3M8-11181-00-00 Gasket, Cylinder Head |
3M8-11181-00-00 |
from US $17.43 |
||
|
04
|
04
94701-00041-00 Plug, Spark (Ngk B8Hs) |
94701-00041-00 |
US $3.32 |
||
| replacements | |||||
|
04
|
04
B8H-S0000-00-00 element |
B8H-S0000-00-00 |
US $4.99 |
||
|
04
|
04
BR8-HS000-00-00 BR8HS NGK SCREW TOP PLUG 4PK (4-PACK) |
BR8-HS000-00-00 |
US $26.36 |
||
|
05
|
05
12X-11311-00-00
Cylinder 1
|
12X-11311-00-00 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
1E7-11162-00-00
Absorber 2
|
1E7-11162-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
4G3-11351-00-00 Gasket, Cylinder |
4G3-11351-00-00 |
US $9.21 |
||
| replacement | |||||
|
07
|
07
4G3-11351-01-00 Gasket, Cylinder |
4G3-11351-01-00 |
US $9.21 |
||
|
08
|
08
90116-07306-00
Bolt, Stud
|
90116-07306-00 |
— | ||
| replacement | |||||
|
08
|
08
90116-07356-00
Bolt, Stud
|
90116-07356-00 |
— | ||
|
09
|
09
90170-07019-00 Nut, Hexagon |
90170-07019-00 |
from US $3.12 |
||
|
10
|
10
90201-07653-00 Washer, Plate |
90201-07653-00 |
from US $2.41 |
||
