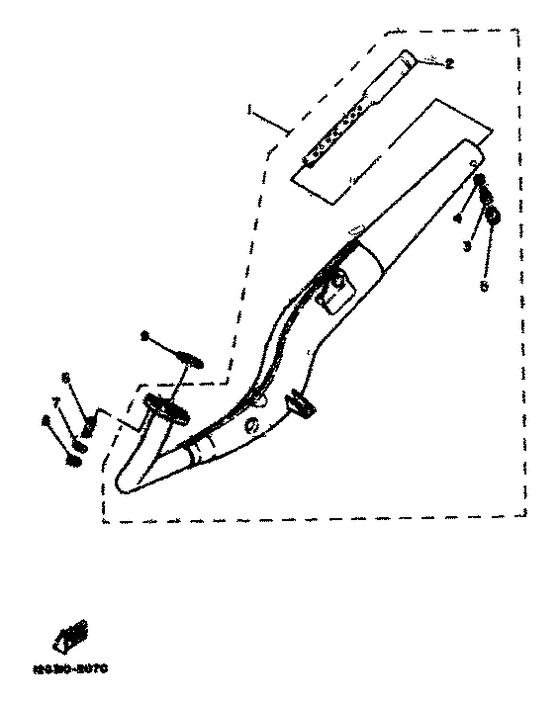

Exhaust Diagram Yamaha RD
- Year
- 1982
- Model code
- 12G
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- RD80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
12G-14710-00-00
Muffler Assy 1
|
12G-14710-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
5R2-14753-00-00
Silencer, Exhaust
|
5R2-14753-00-00 |
— | ||
| replacement | |||||
|
02
|
02
5R2-14753-01-00
Silencer, Exhaust
|
5R2-14753-01-00 |
— | ||
|
03
|
03
98501-05008-00 Screw, Pan Head |
98501-05008-00 |
from US $1.07 |
||
| replacements | |||||
|
03
|
03
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
03
|
03
985-80050-08-00 Screw, Pan Head |
985-80050-08-00 |
from US $1.66 |
||
|
04
|
04
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
04
|
04
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
05
|
05
90480-14153-00 Grommet (420) |
90480-14153-00 |
from US $2.98 |
||
|
06
|
06
90116-08166-00 Bolt, Stud |
90116-08166-00 |
from US $10.20 |
||
| replacement | |||||
|
06
|
06
90116-08408-00 Bolt, Stud |
90116-08408-00 |
from US $10.20 |
||
|
07
|
07
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
07
|
07
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
08
|
08
95301-08600-00 Nut Hexagon (738) |
95301-08600-00 |
from US $1.28 |
||
| replacements | |||||
|
08
|
08
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
08
|
08
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
09
|
09
132-14613-00-00
Gasket, Exst Pipe
|
132-14613-00-00 |
— | ||
| replacement | |||||
|
09
|
09
3MT-14613-00-00 Gasket, Exst Pipe |
3MT-14613-00-00 |
from US $4.99 |
||
