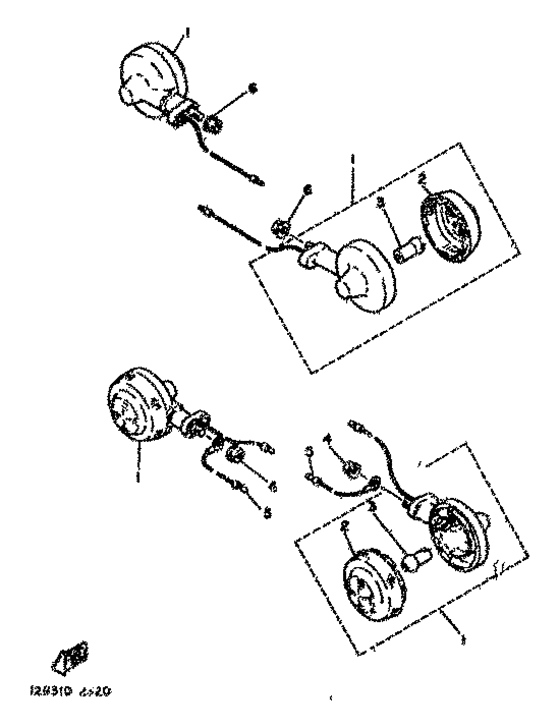

Flasher light Diagram Yamaha RD
- Year
- 1982
- Model code
- 12G
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- RD80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5J2-83330-30-00
Rear Flasher Light Assy 1
|
5J2-83330-30-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
3M7-83312-10-00 Lens, Flasher |
3M7-83312-10-00 |
from US $2.32 |
||
|
03
|
03
3K3-83311-10-00
Bulb, Flasher
|
3K3-83311-10-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
95701-08100-00 Nut, With Washer |
95701-08100-00 |
from US $1.07 |
||
| replacements | |||||
|
04
|
04
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.07 |
||
|
04
|
04
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
05
|
05
1L9-83364-00-00
Wire, Earth Lead 2
|
1L9-83364-00-00 |
— | ||
|
06
|
06
95701-08100-00 Nut, With Washer |
95701-08100-00 |
from US $1.07 |
||
| replacements | |||||
|
06
|
06
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.07 |
||
|
06
|
06
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
