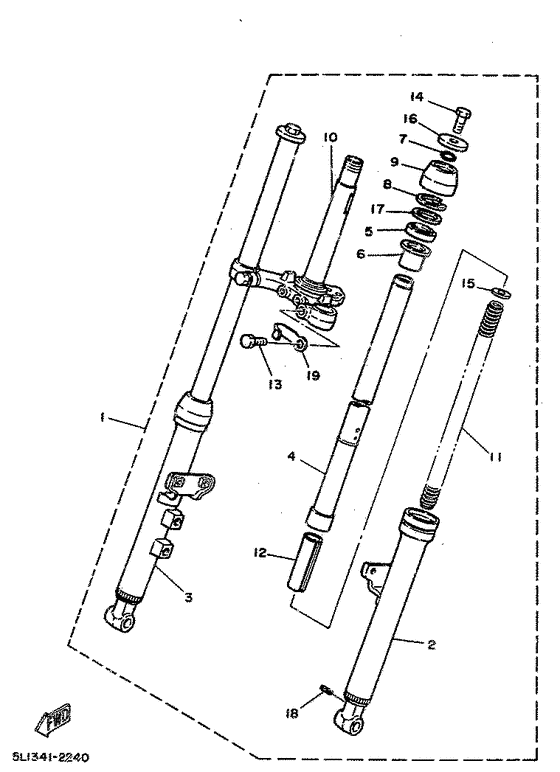

Front fork Diagram Yamaha RD
- Year
- 1982
- Model code
- 12G
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- RD80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5G0-23101-00-00
Front Fork Assy
|
5G0-23101-00-00 |
— | ||
| replacement | |||||
|
01
|
01
5G1-23101-00-00
Front Fork Assy
|
5G1-23101-00-00 |
— | ||
|
02
|
02
5G0-23126-00-98
Tube, Outer (Left)
|
5G0-23126-00-98 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
5G0-23136-00-98
Tube, Outer (Right)
|
5G0-23136-00-98 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
5G0-23124-00-00
Tube, Inner 1
|
5G0-23124-00-00 |
— | ||
|
05
|
05
2M6-23145-00-00 Oil Seal (5R6) |
2M6-23145-00-00 |
from US $12.04 |
||
| replacement | |||||
|
05
|
05
93110-27010-00 Oil Seal |
93110-27010-00 |
from US $12.04 |
||
|
06
|
06
2M6-23125-00-00
Metal, Slide 1
|
2M6-23125-00-00 |
— | ||
|
07
|
07
307-23114-00-00 Gasket |
307-23114-00-00 |
from US $5.81 |
||
|
08
|
08
2M6-23156-00-00 Ring, Snap |
2M6-23156-00-00 |
from US $4.57 |
||
|
09
|
09
2M6-23144-00-00
Seal, Dust
|
2M6-23144-00-00 |
— | ||
|
10
|
10
5G0-23340-00-33
Under Bracket Comp
|
5G0-23340-00-33 |
— | ||
| replacement | |||||
|
10
|
10
5G1-23340-00-33
Under Bracket (4U5-23340-00-
|
5G1-23340-00-33 |
— | ||
|
11
|
11
5G0-23141-00-00
Spring, Front Fork
|
5G0-23141-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
2T5-23166-00-00
Spacer, Oil Lock
|
2T5-23166-00-00 |
— | ||
| replacement | |||||
|
12
|
12
28Y-23166-00-00
Spacer, Oil Lock
|
28Y-23166-00-00 |
— | ||
|
13
|
13
5G0-23346-00-00
Bolt 1
|
5G0-23346-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
5G0-23111-00-00
Bolt, Cap
|
5G0-23111-00-00 |
— | ||
|
15
|
15
290-23149-00-00
Washer, Spring Upr
|
290-23149-00-00 |
— | ||
|
16
|
16
5G0-23112-00-00
Washer, Cap
|
5G0-23112-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
2M6-23146-00-00
Washer, Oil Seal
|
2M6-23146-00-00 |
— | ||
|
18
|
18
91609-40018-00 Pin,spring |
91609-40018-00 |
US $1.56 |
||
| replacement | |||||
|
18
|
18
91690-40018-00 Pin, Spring |
91690-40018-00 |
from US $1.56 |
||
|
19
|
19
5G0-23318-00-00
Holder, Cable 1
|
5G0-23318-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
