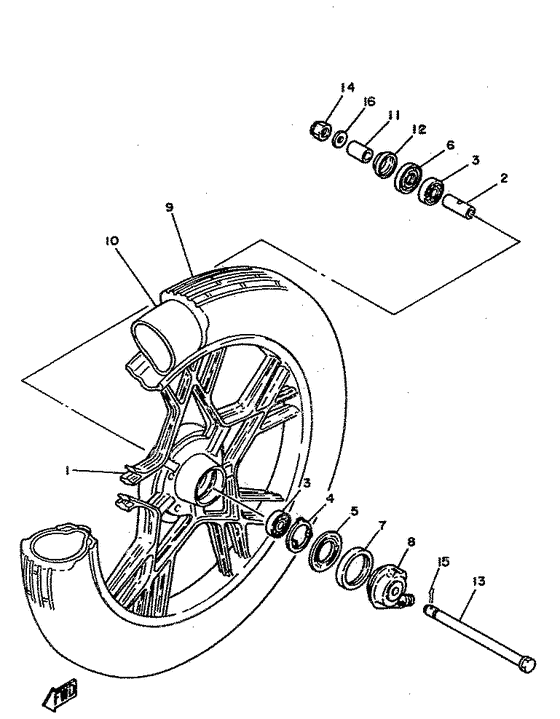

Front wheel Diagram Yamaha RD
- Year
- 1982
- Model code
- 12G
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- RD80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5G0-25168-00-8L
Cast Wheel, Front
|
5G0-25168-00-8L |
— | ||
|
02
|
02
90560-12138-00 Spacer |
90560-12138-00 |
from US $4.96 |
||
|
03
|
03
93306-30101-00 Bearing |
93306-30101-00 |
from US $9.57 |
||
|
04
|
04
341-25149-00-00 Clutch, Meter |
341-25149-00-00 |
from US $4.03 |
||
|
05
|
05
341-25846-00-00 Retainer, Clutch |
341-25846-00-00 |
from US $3.33 |
||
|
06
|
06
93106-20002-00 Oil Seal |
93106-20002-00 |
from US $8.50 |
||
| replacement | |||||
|
06
|
06
93106-20033-00 Oil Seal(3Tu) |
93106-20033-00 |
from US $8.50 |
||
|
07
|
07
93105-45017-00 Oil Seal |
93105-45017-00 |
from US $10.83 |
||
|
08
|
08
4U5-25190-00-00
Gear Unit Assembly
|
4U5-25190-00-00 |
— | ||
| replacement | |||||
|
08
|
08
4L0-25190-10-00
Gear Unit Assy
|
4L0-25190-10-00 |
— | ||
|
09
|
09
94127-18202-00
Tire
|
94127-18202-00 |
— | ||
|
10
|
10
94227-18010-00
Tube
|
94227-18010-00 |
— | ||
| replacement | |||||
|
10
|
10
94227-18195-00 Tube |
94227-18195-00 |
US $37.53 |
||
|
11
|
11
90387-12411-00 Collar |
90387-12411-00 |
US $7.34 |
||
|
12
|
12
561-25367-00-00
Cover, Hub Dust
|
561-25367-00-00 |
— | ||
|
13
|
13
427-25181-10-00 Axle, Wheel (427-25181-00) |
427-25181-10-00 |
from US $35.99 |
||
|
14
|
14
90171-12005-00 Nut, Castle |
90171-12005-00 |
from US $3.83 |
||
| replacement | |||||
|
14
|
14
90171-12039-00 Nut, Castle(36R) |
90171-12039-00 |
from US $2.27 |
||
|
15
|
15
91401-30025-00 Pin, Split |
91401-30025-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
16
|
16
92901-12600-00 Washer, Plate |
92901-12600-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
92990-12600-00 Washer, Plate |
92990-12600-00 |
from US $1.42 |
||
