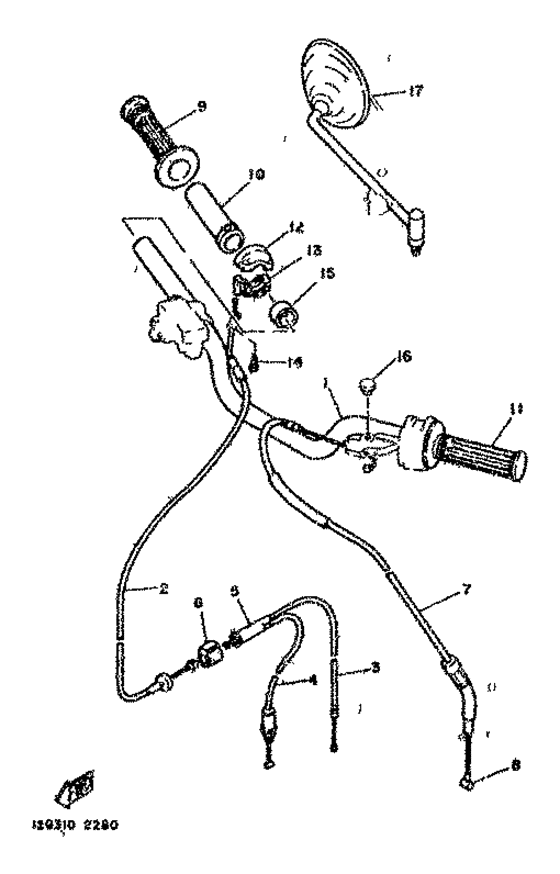

Handlebar. cable Diagram Yamaha RD
- Year
- 1982
- Model code
- 12G
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- RD80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5G0-26111-00-00
Handlebar
|
5G0-26111-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
5G0-26311-00-00
Cable, Throttle 1
|
5G0-26311-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
12G-26312-00-00
Cable, Throttle 2
|
12G-26312-00-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
4U5-26321-00-00
Cable, Pump
|
4U5-26321-00-00 |
— | ||
|
05
|
05
4U1-26261-00-00 Connector, Cable |
4U1-26261-00-00 |
from US $7.08 |
||
|
06
|
06
4G3-26339-00-00 Boot |
4G3-26339-00-00 |
from US $6.94 |
||
|
07
|
07
5G0-26335-00-00
Cable, clutch
|
5G0-26335-00-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
164-26363-00-00 End, Cable |
164-26363-00-00 |
from US $3.54 |
||
|
09
|
09
2N3-26242-00-00 Grip Rh (R.h) |
2N3-26242-00-00 |
from US $6.23 |
||
| replacement | |||||
|
09
|
09
2N3-26242-01-00 GRIP RIGHT |
2N3-26242-01-00 |
from US $9.58 |
||
|
10
|
10
3T5-26243-00-00
Tube, Thrtl Guide
|
3T5-26243-00-00 |
— | ||
|
11
|
11
2N3-26241-00-00
Grip
|
2N3-26241-00-00 |
— | ||
| replacement | |||||
|
11
|
11
2N3-26241-01-00 GRIP |
2N3-26241-01-00 |
from US $7.76 |
||
|
12
|
12
1V1-26281-00-00 Cap, Grip Upper |
1V1-26281-00-00 |
US $20.56 |
||
|
13
|
13
1V1-26282-00-00 Cap, Grip Lower |
1V1-26282-00-00 |
US $20.56 |
||
|
14
|
14
985-01050-16-00
Screw, Pan Head
|
985-01050-16-00 |
— | ||
| replacements | |||||
|
14
|
14
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
14
|
14
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
15
|
15
90387-22585-00
Collar
|
90387-22585-00 |
— | ||
|
16
|
16
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
|
17
|
17
1J7-26290-E0-00 Rear View Mirror Assy (Right)Rear view mirror assy (right) |
1J7-26290-E0-00 |
US $63.97 |
||
| replacements | |||||
|
17
|
17
1J7-26290-J0-00 Rear View Mirror Assy (Right) |
1J7-26290-J0-00 |
US $37.29 |
||
|
17
|
17
1J7-26290-G1-00 Back Mirror Assy (Right) |
1J7-26290-G1-00 |
US $37.29 |
||
