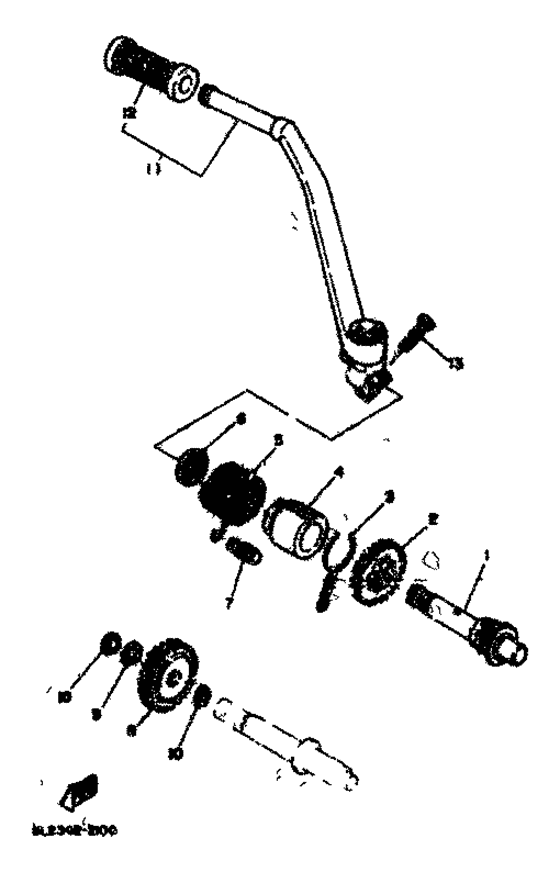

Kick starter Diagram Yamaha RD
- Year
- 1982
- Model code
- 12G
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- RD80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4U1-15660-00-00 Kick Axle Assy |
4U1-15660-00-00 |
US $123.17 |
||
| replacement | |||||
|
01
|
01
2AL-15660-00-00
Kick Axle Assembly
|
2AL-15660-00-00 |
— | ||
|
02
|
02
353-15641-00-00
Gear, Kick
|
353-15641-00-00 |
— | ||
|
03
|
03
90468-26033-00
Clip
|
90468-26033-00 |
— | ||
|
04
|
04
4U1-15664-00-00
Guide, Spring
|
4U1-15664-00-00 |
— | ||
|
05
|
05
90508-26136-00 Spring, Torsion |
90508-26136-00 |
from US $8.93 |
||
|
06
|
06
93109-15001-00 Oil Seal |
93109-15001-00 |
from US $4.11 |
||
|
07
|
07
248-15668-00-00 Stopper |
248-15668-00-00 |
from US $2.32 |
||
|
08
|
08
353-15651-00-00
Gear, Kick Idle
|
353-15651-00-00 |
— | ||
|
09
|
09
90201-12166-00 Washer, Plate |
90201-12166-00 |
from US $1.70 |
||
|
10
|
10
93410-12003-00 Circlip |
93410-12003-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
99009-12400-00 Circlip |
99009-12400-00 |
from US $1.56 |
||
|
11
|
11
5G1-15620-00-00 Kick Crank Assembly |
5G1-15620-00-00 |
from US $118.62 |
||
|
12
|
12
156-15618-01-00 Cover, Kick Lever |
156-15618-01-00 |
from US $2 |
||
|
13
|
13
97316-06025-00 Bolt |
97316-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
13
|
13
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
