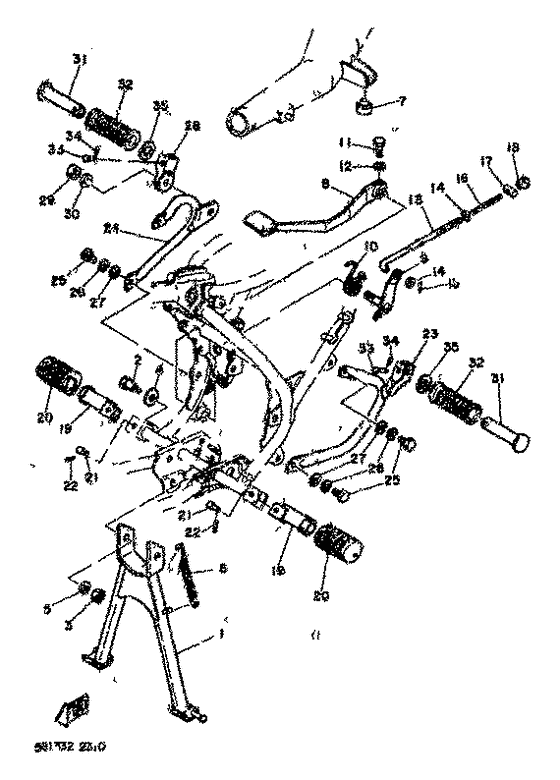

Stand & footrest Diagram Yamaha RD
- Year
- 1982
- Model code
- 12G
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- RD80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5G0-27111-01-33
Stand, Main
|
5G0-27111-01-33 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
90109-08612-00
Bolt
|
90109-08612-00 |
— | ||
|
03
|
03
95602-08100-00 Nut, U |
95602-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
03
|
03
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
04
|
04
90201-12749-00 Washer, Plate |
90201-12749-00 |
from US $1.84 |
||
| replacement | |||||
|
04
|
04
90201-12047-00 Washer, Plate |
90201-12047-00 |
from US $1.84 |
||
|
05
|
05
90201-08020-00 Washer, Plate |
90201-08020-00 |
from US $2.55 |
||
|
06
|
06
90506-29053-00
Spring, Tension
|
90506-29053-00 |
— | ||
| replacement | |||||
|
06
|
06
905-06292-73-00
Spring, Tension
|
905-06292-73-00 |
— | ||
|
07
|
07
116-27114-00-00 Stopper, Min Stand |
116-27114-00-00 |
from US $2 |
||
|
08
|
08
5G0-27211-00-90
Pedal, Brake
|
5G0-27211-00-90 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
09
|
09
5G0-27212-00-00
Shaft, Brake Pedal
|
5G0-27212-00-00 |
— | ||
|
10
|
10
90508-32487-00
Spring, Torsion
|
90508-32487-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
90109-06470-00 Bolt |
90109-06470-00 |
from US $2.69 |
||
| replacement | |||||
|
11
|
11
97007-06022-00 Bolt |
97007-06022-00 |
from US $1.34 |
||
|
12
|
12
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
13
|
13
137-27231-02-00
Rod, Brake
|
137-27231-02-00 |
— | ||
|
14
|
14
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
14
|
14
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
14
|
14
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
15
|
15
91401-20015-00 Pin. Cotter |
91401-20015-00 |
US $1.13 |
||
| replacements | |||||
|
15
|
15
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.13 |
||
|
15
|
15
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
16
|
16
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.70 |
||
|
17
|
17
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
18
|
18
90179-06176-00 Nut (525) |
90179-06176-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
90179-06411-00 Nut |
90179-06411-00 |
from US $1.34 |
||
|
19
|
19
214-27421-00-00 Footrest 2 |
214-27421-00-00 |
from US $6.62 |
||
|
20
|
20
214-27413-00-00 Cover, Footrest |
214-27413-00-00 |
from US $15.30 |
||
|
21
|
21
91701-08038-00 Pin |
91701-08038-00 |
from US $1.56 |
||
|
22
|
22
91401-20015-00 Pin. Cotter |
91401-20015-00 |
US $1.13 |
||
| replacements | |||||
|
22
|
22
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.13 |
||
|
22
|
22
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
23
|
23
5G0-27432-01-00
Bracket 1
|
5G0-27432-01-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
5G0-27442-01-00
Bracket 2
|
5G0-27442-01-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
97306-08020-00 Bolt |
97306-08020-00 |
from US $2.13 |
||
| replacement | |||||
|
25
|
25
97017-08020-00 Bolt |
97017-08020-00 |
from US $1.66 |
||
|
26
|
26
929-06081-00-00
Washer, Spring
|
929-06081-00-00 |
— | ||
| replacement | |||||
|
26
|
26
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
27
|
27
929-06086-00-00
Washer
|
929-06086-00-00 |
— | ||
| replacement | |||||
|
27
|
27
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.21 |
||
|
28
|
28
2L0-27442-01-00 Bracket |
2L0-27442-01-00 |
US $39.42 |
||
|
29
|
29
95306-10600-00 Nut |
95306-10600-00 |
from US $2.27 |
||
| replacement | |||||
|
29
|
29
95337-10600-00 Nut |
95337-10600-00 |
from US $2.27 |
||
|
30
|
30
92906-10600-00 Washer, Plate |
92906-10600-00 |
from US $1.07 |
||
| replacement | |||||
|
30
|
30
92907-10600-00 Washer, Plate |
92907-10600-00 |
from US $1.07 |
||
|
31
|
31
120-27431-00-00 Footrest, Rear 1 |
120-27431-00-00 |
from US $25.64 |
||
| replacement | |||||
|
31
|
31
2GV-27431-00-00 Footrest, Rear 1 |
2GV-27431-00-00 |
from US $6.30 |
||
|
32
|
32
120-27433-00-00 Cover, Rear Footrest |
120-27433-00-00 |
from US $2.32 |
||
|
33
|
33
91701-06035-00 Pin, Clevis (2F9) |
91701-06035-00 |
from US $1.98 |
||
|
34
|
34
91401-20015-00 Pin. Cotter |
91401-20015-00 |
US $1.13 |
||
| replacements | |||||
|
34
|
34
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.13 |
||
|
34
|
34
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
35
|
35
902-01202-79-00 Washer, Plate |
902-01202-79-00 |
from US $1.28 |
||
