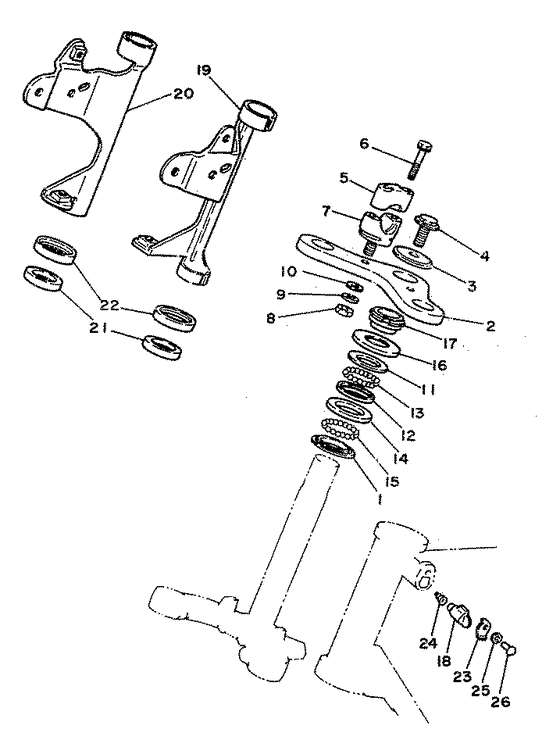

Steering Diagram Yamaha RD
- Year
- 1982
- Model code
- 12G
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- RD80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
01
|
01
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
02
|
02
185-23435-00-98
Crown, Handle
|
185-23435-00-98 |
— | ||
|
03
|
03
90201-105E4-00 Washer, Plate |
90201-105E4-00 |
from US $4.53 |
||
| replacement | |||||
|
03
|
03
90209-10160-00 Washer (1Yj) |
90209-10160-00 |
from US $4.53 |
||
|
04
|
04
90105-10201-00
Bolt, Flange
|
90105-10201-00 |
— | ||
|
05
|
05
462-23441-00-00 Holder,handle Upr |
462-23441-00-00 |
from US $14.20 |
||
| replacement | |||||
|
05
|
05
462-23441-01-00 Holder, Handle Upper |
462-23441-01-00 |
from US $17.87 |
||
|
06
|
06
90119-06046-00 Bolt, Hex |
90119-06046-00 |
from US $2.34 |
||
| replacement | |||||
|
06
|
06
97017-06035-00 Bolt |
97017-06035-00 |
from US $2.41 |
||
|
07
|
07
122-23442-02-00 Holder, Handle Lower |
122-23442-02-00 |
from US $17.87 |
||
| replacement | |||||
|
07
|
07
122-23442-03-00 Holder, Handle Lower |
122-23442-03-00 |
from US $14.40 |
||
|
08
|
08
95301-10600-00 Nut |
95301-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
08
|
08
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
|
09
|
09
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
09
|
09
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
10
|
10
92901-10600-00 Washer, Plate |
92901-10600-00 |
US $1.07 |
||
| replacement | |||||
|
10
|
10
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
11
|
11
122-23411-00-00 Race, Ball 1 |
122-23411-00-00 |
from US $8.78 |
||
| replacements | |||||
|
11
|
11
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
|
11
|
11
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
12
|
12
122-23412-00-00 Race, Ball 2 |
122-23412-00-00 |
from US $7.93 |
||
| replacements | |||||
|
12
|
12
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
|
12
|
12
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
13
|
13
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
13
|
13
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
14
|
14
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
14
|
14
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
15
|
15
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
16
|
16
122-23416-00-00 Cover, Ball Race 2 |
122-23416-00-00 |
from US $2.69 |
||
|
17
|
17
90179-25051-00 Nut |
90179-25051-00 |
from US $17.99 |
||
|
18
|
18
5L1-23408-00-00 Steering Lock Assy |
5L1-23408-00-00 |
US $77.92 |
||
| replacement | |||||
|
18
|
18
2A6-23408-00-00 Steering Lock Assy |
2A6-23408-00-00 |
from US $77.92 |
||
|
19
|
19
5L1-23327-00-33
Stay, Flasher 1
|
5L1-23327-00-33 |
— | ||
|
20
|
20
5L1-23328-00-33
Stay, Flasher 2
|
5L1-23328-00-33 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
3M7-23137-00-00
Gasket, Upper Cover 1
|
3M7-23137-00-00 |
— | ||
|
22
|
22
3M7-23385-00-00
Washer, Special 1
|
3M7-23385-00-00 |
— | ||
|
23
|
23
584-23484-01-00 Cap, Handle Lock |
584-23484-01-00 |
from US $11.86 |
||
| replacement | |||||
|
23
|
23
3DM-23484-00-00 Cap, Handle Lock |
3DM-23484-00-00 |
from US $11.05 |
||
|
24
|
24
90502-09024-00 Spring, Conical |
90502-09024-00 |
from US $2.55 |
||
|
25
|
25
90208-04029-00 Washer, Conical Spring |
90208-04029-00 |
from US $1.98 |
||
|
26
|
26
90269-04003-00 Rivet |
90269-04003-00 |
from US $2.55 |
||
