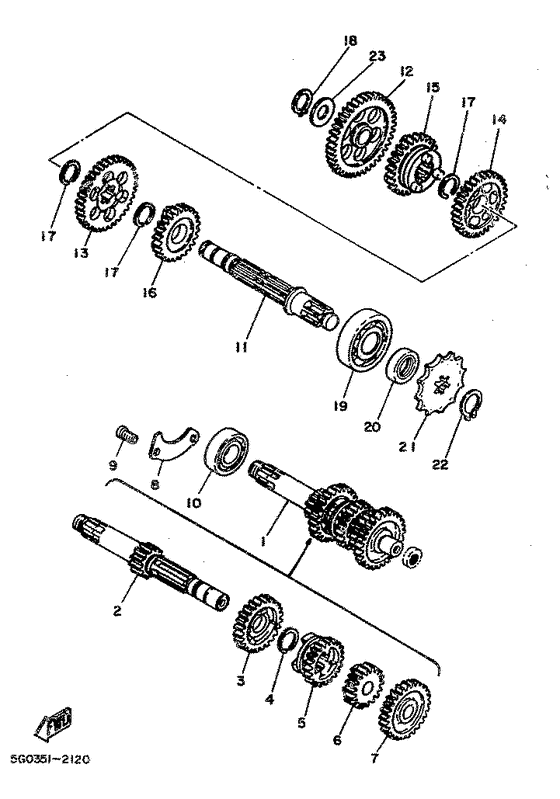

Transmission Diagram Yamaha RD
- Year
- 1982
- Model code
- 12G
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- RD80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
353-17410-10-00
Main Axle
|
353-17410-10-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
353-17411-10-00
Axle, Main
|
353-17411-10-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
353-17141-12-00 Gear, 4Th Pinion |
353-17141-12-00 |
US $93.62 |
||
|
04
|
04
93440-16030-00 Circlip |
93440-16030-00 |
from US $2.13 |
||
| replacement | |||||
|
04
|
04
93440-16089-00 Circlip (4V0) |
93440-16089-00 |
from US $2.13 |
||
|
05
|
05
353-17131-10-00 Gear, 3Rd Pinion |
353-17131-10-00 |
US $97.67 |
||
|
06
|
06
353-17121-11-00 Gear, 2Nd Pinion |
353-17121-11-00 |
US $79.45 |
||
|
07
|
07
353-17151-00-00
Gear, 5Th Pinion
|
353-17151-00-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
353-17471-00-00
Plate, Cover
|
353-17471-00-00 |
— | ||
|
09
|
09
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
09
|
09
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
10
|
10
93306-20303-00 Bearing |
93306-20303-00 |
from US $15.30 |
||
| replacement | |||||
|
10
|
10
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.30 |
||
|
11
|
11
4U1-17421-00-00
Axle, Drive
|
4U1-17421-00-00 |
— | ||
|
12
|
12
353-17211-01-00
Gear, 1St Wheel
|
353-17211-01-00 |
— | ||
|
13
|
13
353-17221-00-00
Gear, 2Nd Wheel
|
353-17221-00-00 |
— | ||
|
14
|
14
353-17231-00-00
Gear, 3Rd Wheel
|
353-17231-00-00 |
— | ||
|
15
|
15
3M8-17241-00-00
Gear, 4Th Wheel
|
3M8-17241-00-00 |
— | ||
|
16
|
16
353-17251-00-00
Gear, 5Th Wheel
|
353-17251-00-00 |
— | ||
|
17
|
17
93440-16030-00 Circlip |
93440-16030-00 |
from US $2.13 |
||
| replacement | |||||
|
17
|
17
93440-16089-00 Circlip (4V0) |
93440-16089-00 |
from US $2.13 |
||
|
18
|
18
93410-13004-00 Circlip |
93410-13004-00 |
from US $2.41 |
||
| replacement | |||||
|
18
|
18
99009-13400-00 Circlip |
99009-13400-00 |
from US $2.41 |
||
|
19
|
19
93306-30301-00 Bearing |
93306-30301-00 |
from US $2.98 |
||
| replacement | |||||
|
19
|
19
93306-30302-00 Brg,r-B 6303 47Mm 115G Nk |
93306-30302-00 |
from US $19.55 |
||
|
20
|
20
931-02171-87-00 Oil Seal |
931-02171-87-00 |
from US $7.51 |
||
|
21
|
21
257-17461-31-00 Sprocket, Drive (13T) |
257-17461-31-00 |
US $15.53 |
||
| replacements | |||||
|
21
|
21
938-11130-19-00 Sprocket,drive 13T(12N1746131) |
938-11130-19-00 |
US $15.08 |
||
|
21
|
21
93811-13020-00 Sprocket, Drive (257-17461-31)Sprocket, drive (2571746131) |
93811-13020-00 |
US $15.53 |
||
|
22
|
22
93410-16007-00 Circlip |
93410-16007-00 |
from US $1.56 |
||
| replacements | |||||
|
22
|
22
99009-16400-00 Circlip(13T) |
99009-16400-00 |
from US $1.56 |
||
|
22
|
22
93410-16006-00 Circlip |
93410-16006-00 |
from US $1.34 |
||
|
23
|
23
257-17219-00-00 Shim |
257-17219-00-00 |
from US $2.70 |
||
