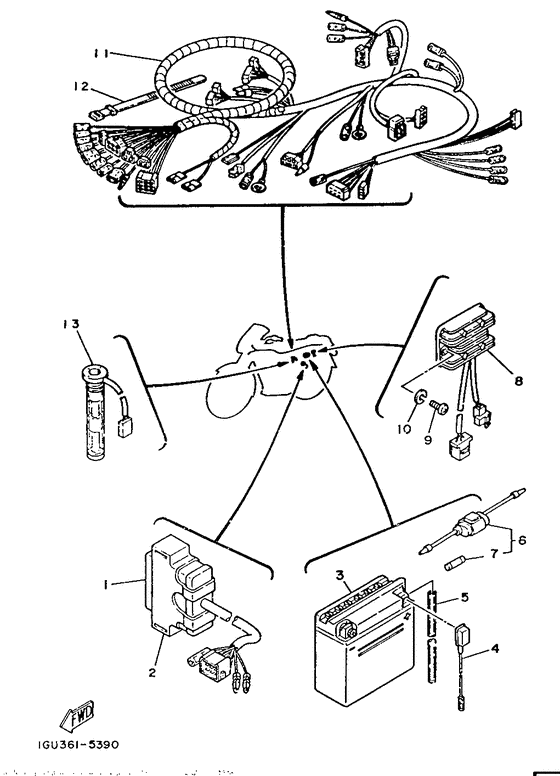

Electrical 1 Diagram Yamaha RD
- Year
- 1986
- Colour
- New Yamaha Black (NYB; 006G)
- Model code
- 1GU
- Sales region
- Switzerland (999)
- Engine Capacity
- 125
- Model
- RD125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1GU-85540-M0-00
C.d.i. Unit Assy
|
1GU-85540-M0-00 |
— | ||
|
02
|
02
1GU-85546-00-00
Band
|
1GU-85546-00-00 |
— | ||
|
03
|
03
235-82110-79-00
Battery Assy (12N5-3By)
|
235-82110-79-00 |
— | ||
| replacements | |||||
|
03
|
03
12N-53BY0-00-00
CB18A GS BATTERY
|
12N-53BY0-00-00 |
— | ||
|
03
|
03
235-82110-09-00
Battery (12N5-3B)
|
235-82110-09-00 |
— | ||
|
04
|
04
10W-82115-00-00 Wire, Plus Lead |
10W-82115-00-00 |
US $17.65 |
||
|
05
|
05
90445-08247-00 Hose (L500) |
90445-08247-00 |
US $9.57 |
||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
1E2-82150-00-00 Fuse Holder Assy |
1E2-82150-00-00 |
from US $11.67 |
||
| replacement | |||||
|
06
|
06
2UJ-82150-02-00 Fuse Holder Assy |
2UJ-82150-02-00 |
from US $9.89 |
||
|
07
|
07
148-82151-00-00 Fuse (12V-20A) |
148-82151-00-00 |
from US $6.35 |
||
| replacement | |||||
|
07
|
07
1A0-82161-00-00 Fuse (12V-20A) |
1A0-82161-00-00 |
from US $6.35 |
||
|
08
|
08
5H0-81960-A0-00
Rectifier/reg Assembly
|
5H0-81960-A0-00 |
— | ||
|
09
|
09
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
09
|
09
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.24 |
||
|
10
|
10
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
11
|
11
1GU-82590-00-00
Wire Harness Assy
|
1GU-82590-00-00 |
— | ||
|
12
|
12
7F6-82591-00-00 Band |
7F6-82591-00-00 |
from US $1.50 |
||
| replacement | |||||
|
12
|
12
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.50 |
||
|
13
|
13
4L0-85720-00-00
Oil Lvl Guage Assembly
|
4L0-85720-00-00 |
— | ||
