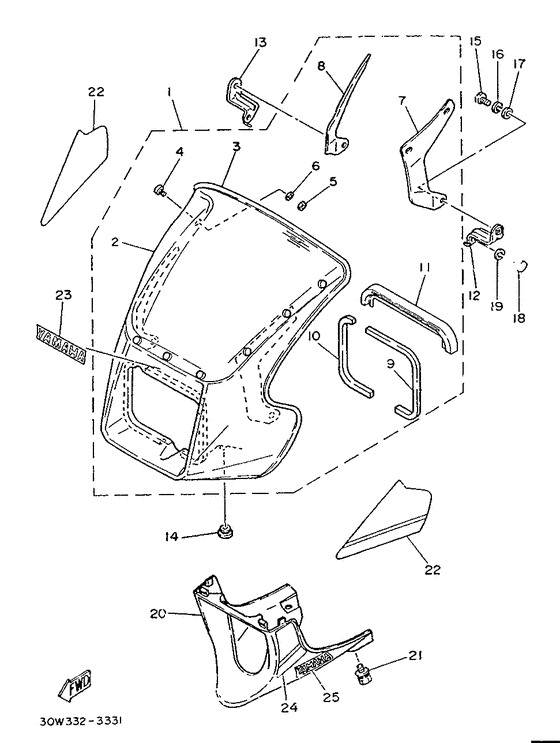

Cowling 1 Diagram Yamaha RD
- Year
- 1991
- Colour
- White (WW; 0036)
- Model code
- 1NM
- Sales region
- Spain (999)
- Engine Capacity
- 75
- Model
- RD75
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
10W-28350-01-36
Cowling Assy
Ur clean white |
10W-28350-01-36 |
— | ||
| replacement | |||||
|
01
|
01
10W-28350-21-36
Cowling Assy
Ur clean white |
10W-28350-21-36 |
— | ||
|
01
|
01
10W-28350-01-6G
Cowling Assy
Ur new yamaha black |
10W-28350-01-6G |
— | ||
| replacement | |||||
|
01
|
01
10W-28350-21-6G
Cowling Assy
Ur new yamaha black |
10W-28350-21-6G |
— | ||
|
02
|
02
10W-28381-09-00
Windshield
|
10W-28381-09-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
10W-28376-00-00
Trim
|
10W-28376-00-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
98906-04012-00 Screw, Bind |
98906-04012-00 |
US $1.56 |
||
| replacement | |||||
|
04
|
04
98907-04012-00 Screw, Binding |
98907-04012-00 |
from US $0.76 |
||
|
05
|
05
95306-04600-00 Nut |
95306-04600-00 |
from US $1.70 |
||
| replacement | |||||
|
05
|
05
95307-04600-00 Nut |
95307-04600-00 |
from US $1.70 |
||
|
06
|
06
90201-047A2-00 Washer, Plate |
90201-047A2-00 |
from US $1.70 |
||
|
07
|
07
10W-28321-00-00
Stay 1
|
10W-28321-00-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
10W-28322-00-00
Stay 2
|
10W-28322-00-00 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
09
|
09
10W-28378-00-00
Pad
|
10W-28378-00-00 |
— | ||
| replacement | |||||
|
09
|
09
55K-28378-00-00
Pad
|
55K-28378-00-00 |
— | ||
|
10
|
10
10W-28378-10-00
Pad
|
10W-28378-10-00 |
— | ||
| replacement | |||||
|
10
|
10
55K-28378-00-00
Pad
|
55K-28378-00-00 |
— | ||
|
11
|
11
10W-28372-00-00
Damper
|
10W-28372-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
10W-28356-01-00
Stay 1
|
10W-28356-01-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
10W-28357-01-00
Stay 2
|
10W-28357-01-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
90480-12014-00 Grommet |
90480-12014-00 |
from US $1.56 |
||
| replacement | |||||
|
14
|
14
90480-12320-00 Grommet |
90480-12320-00 |
from US $1.56 |
||
|
15
|
15
97306-06016-00 Bolt |
97306-06016-00 |
from US $1.21 |
||
| replacement | |||||
|
15
|
15
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
16
|
16
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
17
|
17
902-01060-59-00
Washer, Plate
|
902-01060-59-00 |
— | ||
| replacements | |||||
|
17
|
17
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
17
|
17
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
18
|
18
97306-06012-00 Bolt |
97306-06012-00 |
from US $1.21 |
||
| replacement | |||||
|
18
|
18
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
19
|
19
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
20
|
20
10W-28385-00-36
Cover, Under
Ur clean white |
10W-28385-00-36 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
Ur clean white |
999-99999-99-00 |
— | ||
|
20
|
20
10W-28385-00-6G
Cover, Under
Ur new yamaha black |
10W-28385-00-6G |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
Ur new yamaha black |
999-99999-99-00 |
— | ||
|
21
|
21
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
21
|
21
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
21
|
21
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
22
|
22
1GU-28390-00-00
Graphic Set, Cowling
Ur para w |
1GU-28390-00-00 |
— | ||
|
22
|
22
1GU-28390-10-00
Graphic Set, Cowling
Ur para nyb |
1GU-28390-10-00 |
— | ||
|
23
|
23
1GU-2163G-00-00
Emblem 1
Ur para w |
1GU-2163G-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
Ur para w |
999-99999-99-00 |
— | ||
|
23
|
23
1GU-2163G-10-00
Emblem 1
Ur para nyb |
1GU-2163G-10-00 |
— | ||
|
24
|
24
1GU-28301-00-00
Graphic Set, Lower Cover 1
Ur para w |
1GU-28301-00-00 |
— | ||
|
24
|
24
1GU-28301-10-00
Graphic Set, Lower Cover 1
Ur para nyb |
1GU-28301-10-00 |
— | ||
|
25
|
25
1GU-28315-00-00
Emblem
Ur para w |
1GU-28315-00-00 |
— | ||
|
25
|
25
1GU-28315-10-00
Emblem
Ur para nyb |
1GU-28315-10-00 |
— | ||
