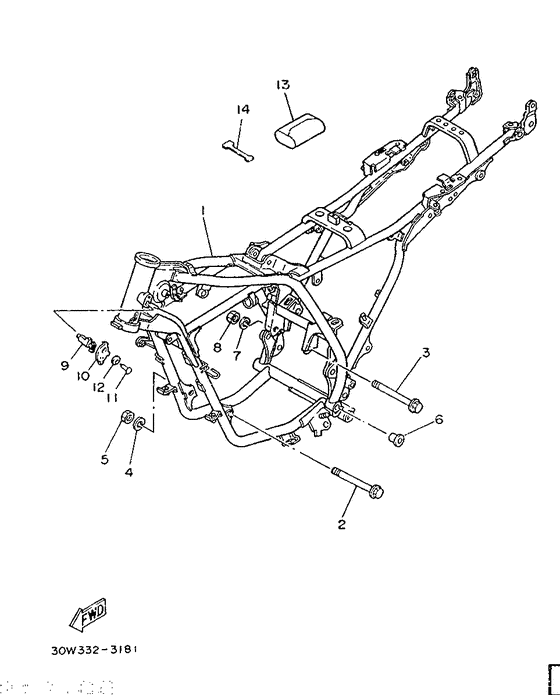

Frame Diagram Yamaha RD
- Year
- 1991
- Colour
- White (WW; 0036)
- Model code
- 1NM
- Sales region
- Spain (999)
- Engine Capacity
- 75
- Model
- RD75
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
30W-21110-01-33
Frame Comp
Yamaha black |
30W-21110-01-33 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Yamaha black |
999-99999-99-00 |
— | ||
|
02
|
02
958-21081-25-00
Bolt, Flange
|
958-21081-25-00 |
— | ||
| replacement | |||||
|
02
|
02
958-17081-25-00 Bolt, Flange |
958-17081-25-00 |
from US $5.81 |
||
|
03
|
03
90109-101A0-00 Bolt(30W) |
90109-101A0-00 |
from US $9.21 |
||
|
04
|
04
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
05
|
05
95301-08600-00 Nut Hexagon (738) |
95301-08600-00 |
from US $1.28 |
||
| replacements | |||||
|
05
|
05
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
05
|
05
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
06
|
06
90338-18122-00 Plug |
90338-18122-00 |
from US $1.63 |
||
|
07
|
07
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
07
|
07
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
08
|
08
95301-10600-00 Nut |
95301-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
08
|
08
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
|
10
|
10
134-23834-10-00
Nut 2
|
134-23834-10-00 |
— | ||
|
11
|
11
90269-04003-00 Rivet |
90269-04003-00 |
from US $2.55 |
||
|
12
|
12
90208-04029-00 Washer, Conical Spring |
90208-04029-00 |
from US $1.98 |
||
|
13
|
13
10W-28100-00-00 Tool Kit |
10W-28100-00-00 |
US $116.88 |
||
| replacement | |||||
|
13
|
13
2A6-W2810-00-00 Tool Kit |
2A6-W2810-00-00 |
from US $116.88 |
||
|
14
|
14
3M7-15361-00-00
Gauge, Level
|
3M7-15361-00-00 |
— | ||
