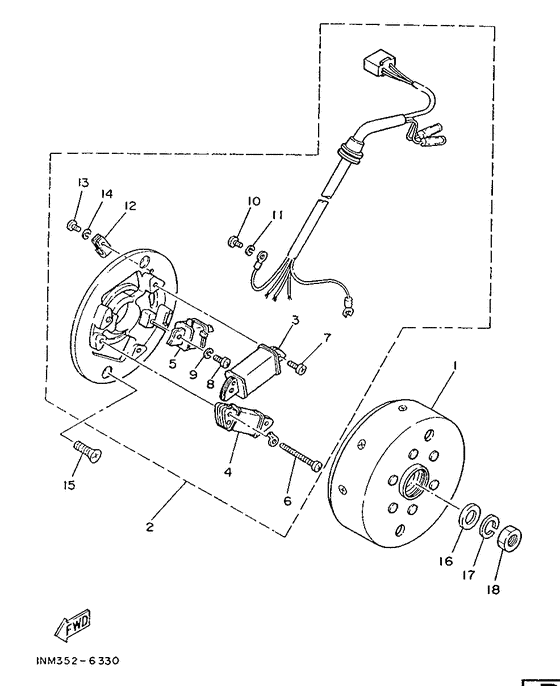

Generator Diagram Yamaha RD
- Year
- 1991
- Colour
- White (WW; 0036)
- Model code
- 1NM
- Sales region
- Spain (999)
- Engine Capacity
- 75
- Model
- RD75
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
30W-85550-M1-00
Rotor Assy
|
30W-85550-M1-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
30W-85560-M0-00
Base Assy
|
30W-85560-M0-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
37A-85520-M1-00 Coil, Charge |
37A-85520-M1-00 |
from US $94.03 |
||
| replacement | |||||
|
03
|
03
37A-85520-M2-00 COIL, CHARGE |
37A-85520-M2-00 |
US $99.59 |
||
|
04
|
04
30W-81313-M0-00
Coil, Lighting 1
|
30W-81313-M0-00 |
— | ||
|
05
|
05
4U5-85580-M0-00 Coil, Pulser |
4U5-85580-M0-00 |
from US $31.52 |
||
|
06
|
06
98511-04030-00 Screw, Pan Head |
98511-04030-00 |
US $2.13 |
||
| replacements | |||||
|
06
|
06
985-17040-30-00
Screw, Pan Head(1Ke)
|
985-17040-30-00 |
— | ||
|
06
|
06
98507-04030-00 Screw,pan Head |
98507-04030-00 |
from US $2.13 |
||
|
07
|
07
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
08
|
08
985-03040-10-00
Screw, Pan Head
|
985-03040-10-00 |
— | ||
| replacement | |||||
|
08
|
08
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
09
|
09
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
09
|
09
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
10
|
10
985-01040-06-00
Screw, Pan Head
|
985-01040-06-00 |
— | ||
| replacements | |||||
|
10
|
10
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.13 |
||
|
10
|
10
901-59041-44-00
Screw, With Washer
|
901-59041-44-00 |
— | ||
|
10
|
10
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
10
|
10
99999-04427-00 Screw,pan Head W/washer |
99999-04427-00 |
US $3.04 |
||
|
11
|
11
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
12
|
12
34X-81528-00-00
Clamp 1
|
34X-81528-00-00 |
— | ||
|
13
|
13
985-01040-06-00
Screw, Pan Head
|
985-01040-06-00 |
— | ||
| replacements | |||||
|
13
|
13
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.13 |
||
|
13
|
13
901-59041-44-00
Screw, With Washer
|
901-59041-44-00 |
— | ||
|
13
|
13
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
13
|
13
99999-04427-00 Screw,pan Head W/washer |
99999-04427-00 |
US $3.04 |
||
|
14
|
14
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
15
|
15
92701-06014-00 Screw, Flat Head |
92701-06014-00 |
from US $2.27 |
||
| replacements | |||||
|
15
|
15
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.34 |
||
|
15
|
15
98707-06014-00 Screw, Flat |
98707-06014-00 |
from US $1.34 |
||
|
16
|
16
90201-12593-00 Washer, Plate |
90201-12593-00 |
from US $4.53 |
||
|
17
|
17
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
18
|
18
90170-12175-00 Nut |
90170-12175-00 |
from US $2.55 |
||
