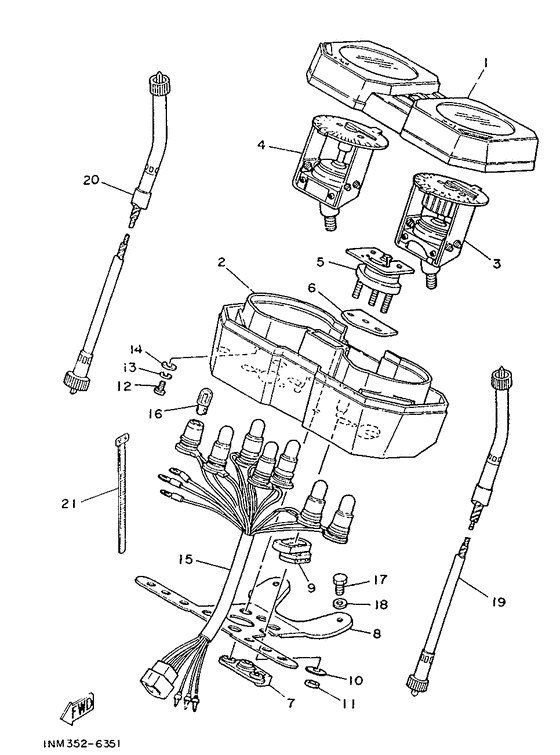

Meter Diagram Yamaha RD
- Year
- 1991
- Colour
- White (WW; 0036)
- Model code
- 1NM
- Sales region
- Spain (999)
- Engine Capacity
- 75
- Model
- RD75
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02
|
02
10W-8353F-00-00
Case, Meter Lower
|
10W-8353F-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
10X-83510-F0-00
Speedometer Assy
|
10X-83510-F0-00 |
— | ||
| replacement | |||||
|
03
|
03
10W-83510-F0-00
Speedometer Assy
|
10W-83510-F0-00 |
— | ||
|
04
|
04
10W-83540-00-00
Tachometer Assy
|
10W-83540-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
10W-83590-00-00
Water Temperature Assy
|
10W-83590-00-00 |
— | ||
| replacement | |||||
|
05
|
05
5R2-83590-00-00
Water Temperature Assy
|
5R2-83590-00-00 |
— | ||
|
06
|
06
5R2-83592-00-00
Damper
|
5R2-83592-00-00 |
— | ||
|
07
|
07
10W-83526-00-00
Damper 2
|
10W-83526-00-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
5R2-83519-00-00
Bracket, Meter
|
5R2-83519-00-00 |
— | ||
|
09
|
09
10W-83523-00-00
Damper
|
10W-83523-00-00 |
— | ||
|
10
|
10
10W-83524-00-00
Washer, Special
|
10W-83524-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
95306-05600-00 Nut |
95306-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
11
|
11
95317-05600-00 Nut |
95317-05600-00 |
from US $2.13 |
||
|
12
|
12
98506-04010-00 Screw, Pan Head |
98506-04010-00 |
from US $1.21 |
||
| replacement | |||||
|
12
|
12
98507-04010-00 Screw, Pan Head |
98507-04010-00 |
from US $1.21 |
||
|
13
|
13
92906-04100-00 Washer, Spring |
92906-04100-00 |
from US $1.21 |
||
| replacements | |||||
|
13
|
13
92907-04100-00 Washer, Spring |
92907-04100-00 |
from US $1.21 |
||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
92906-05460-00
Washer
|
92906-05460-00 |
— | ||
|
15
|
15
10W-83509-00-00
Socket Cord Assy
|
10W-83509-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
4G1-84744-00-00 Bulb (12V-3.4W T10) |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
16
|
16
4G1-84744-00-XX
Bulb (12V-3.4W T10)
|
4G1-84744-00-XX |
— | ||
|
17
|
17
97306-06016-00 Bolt |
97306-06016-00 |
from US $1.21 |
||
| replacement | |||||
|
17
|
17
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
18
|
18
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
19
|
19
4U5-83550-00-00 Spdmtr Cble |
4U5-83550-00-00 |
from US $31.37 |
||
| replacement | |||||
|
19
|
19
4U5-83550-01-00 Speedometer Cable Assy |
4U5-83550-01-00 |
from US $31.39 |
||
|
20
|
20
5R2-83560-00-00 Tachometer Cable Assy |
5R2-83560-00-00 |
US $40.62 |
||
| replacement | |||||
|
20
|
20
3SX-83560-01-00 Tachometer Cable Assy |
3SX-83560-01-00 |
US $40.62 |
||
|
21
|
21
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
21
|
21
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
