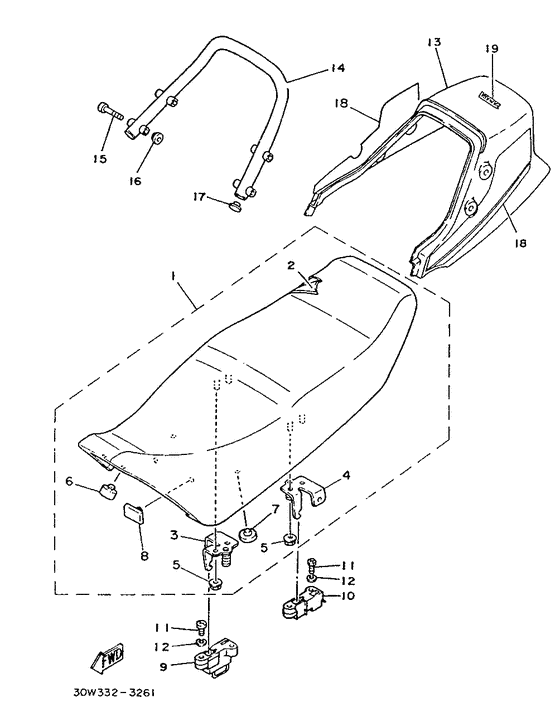

Seat. carrier Diagram Yamaha RD
- Year
- 1991
- Colour
- White (WW; 0036)
- Model code
- 1NM
- Sales region
- Spain (999)
- Engine Capacity
- 75
- Model
- RD75
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1GU-24730-00-00
Double Seat Assy
|
1GU-24730-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
1GU-24731-00-00
Cover, Seat
|
1GU-24731-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
10W-24738-00-00
Bracket, Seat
|
10W-24738-00-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
10W-24728-00-00
Bracket, Seat
|
10W-24728-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
3Y6-24735-00-00 Speed Nut |
3Y6-24735-00-00 |
from US $1.13 |
||
| replacement | |||||
|
05
|
05
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
06
|
06
107-24741-00-00
Pad, Seat
|
107-24741-00-00 |
— | ||
|
07
|
07
116-24741-00-00 Pad, Seat |
116-24741-00-00 |
from US $11.29 |
||
|
08
|
08
509-24724-00-00 Damper, Seat |
509-24724-00-00 |
from US $5.10 |
||
|
09
|
09
4L0-24705-00-00
Seat Lock Assembly
|
4L0-24705-00-00 |
— | ||
|
10
|
10
4L0-24760-00-00
Seat Lever Assembly
|
4L0-24760-00-00 |
— | ||
|
11
|
11
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
11
|
11
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
12
|
12
92902-06100-00 Washer, Spring |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
13
|
13
10W-24756-00-36
Cover, Tail
Ur clean white |
10W-24756-00-36 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
Ur clean white |
999-99999-99-00 |
— | ||
|
13
|
13
10W-24756-00-6G
Cover, Tail
Ur new yamaha black |
10W-24756-00-6G |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
Ur new yamaha black |
999-99999-99-00 |
— | ||
|
14
|
14
10W-24773-00-00
Handle, Seat
|
10W-24773-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
90149-08172-00
Screw
|
90149-08172-00 |
— | ||
| replacement | |||||
|
15
|
15
92013-08050-00
Bolt
|
92013-08050-00 |
— | ||
|
16
|
16
1T4-24796-00-00 Cover |
1T4-24796-00-00 |
from US $6.25 |
||
|
17
|
17
90338-15110-00 Plug |
90338-15110-00 |
from US $1.84 |
||
|
18
|
18
1GU-2477M-01-00
Graphic Set, Tail Cover
Ur para w |
1GU-2477M-01-00 |
— | ||
|
18
|
18
1GU-2477M-11-00
Graphic Set, Tail Cover
Ur para nyb |
1GU-2477M-11-00 |
— | ||
|
19
|
19
1GU-2163G-00-00
Emblem 1
Ur para w |
1GU-2163G-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
Ur para w |
999-99999-99-00 |
— | ||
|
19
|
19
1GU-2163G-10-00
Emblem 1
Ur para nyb |
1GU-2163G-10-00 |
— | ||
