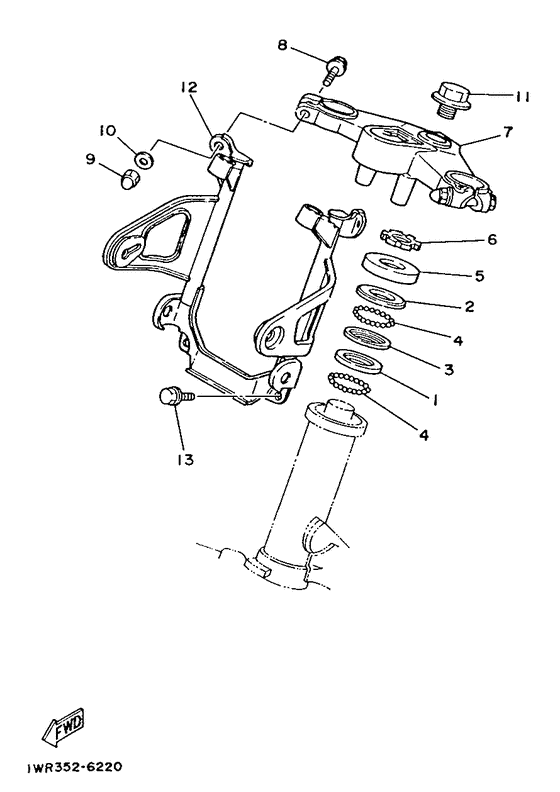

Steering Diagram Yamaha RD
- Year
- 1986
- Colour
- Silky White (SW; 00GE)
- Model code
- 1WR
- Sales region
- Spain (999)
- Engine Capacity
- 350
- Model
- RD350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
|
02
|
02
183-23411-00-00
Race, Ball 1
|
183-23411-00-00 |
— | ||
| replacement | |||||
|
02
|
02
4FP-F3411-20-00 Race, Ball 1 |
4FP-F3411-20-00 |
from US $6.94 |
||
|
03
|
03
183-23412-00-00
Race, Ball 2
|
183-23412-00-00 |
— | ||
| replacements | |||||
|
03
|
03
4FP-F3412-10-00 Race, Ball 2 |
4FP-F3412-10-00 |
from US $6.19 |
||
|
03
|
03
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
|
03
|
03
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
04
|
04
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
05
|
05
4K0-23415-00-00 Cover, Ball Race 1 |
4K0-23415-00-00 |
from US $3.26 |
||
| replacement | |||||
|
05
|
05
136-23415-00-00 Cover, Ball Race 1 |
136-23415-00-00 |
from US $3.26 |
||
|
06
|
06
90179-25495-00 Nut |
90179-25495-00 |
from US $9.92 |
||
| replacements | |||||
|
06
|
06
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
06
|
06
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
07
|
07
1UA-23455-00-98
Damper
Low gloss black |
1UA-23455-00-98 |
— | ||
|
08
|
08
91026-08050-00 Bolt |
91026-08050-00 |
US $1.56 |
||
| replacement | |||||
|
08
|
08
95817-08050-00 Bolt, Flange |
95817-08050-00 |
from US $1.66 |
||
|
09
|
09
95306-08800-00 Nut |
95306-08800-00 |
from US $1.56 |
||
| replacement | |||||
|
09
|
09
95307-08800-00 Nut |
95307-08800-00 |
from US $1.56 |
||
|
10
|
10
929-06086-00-00
Washer
|
929-06086-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.39 |
||
|
11
|
11
90105-14365-00 Bolt, Fitting 1 (4H3-23451-00) |
90105-14365-00 |
from US $9.78 |
||
|
12
|
12
1JF-23174-00-00
Stay, Headlight
|
1JF-23174-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
95026-08030-00 Bolt, Flange |
95026-08030-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
95027-08030-00 Bolt, Flange |
95027-08030-00 |
from US $1.66 |
||
