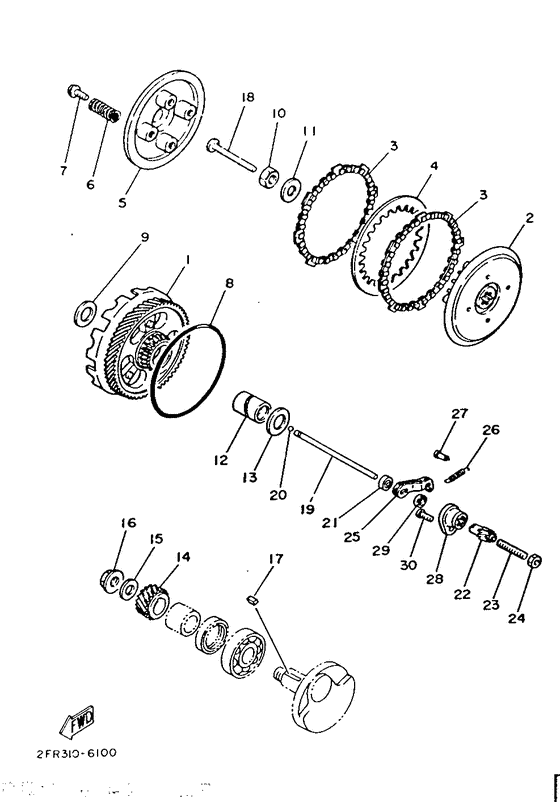

Clutch Diagram Yamaha RD
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 2FR
- Sales region
- England (999)
- Engine Capacity
- 50
- Model
- RD50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5L3-16150-00-00
Pri. Drvn Gr Comp. (19/68T) (2U
|
5L3-16150-00-00 |
— | ||
|
02
|
02
257-16371-01-00
Boss, Clutch
|
257-16371-01-00 |
— | ||
|
03
|
03
131-16321-00-00
Plate, Friction
|
131-16321-00-00 |
— | ||
| replacement | |||||
|
03
|
03
4EU-16321-00-00 Plate, Friction |
4EU-16321-00-00 |
from US $23.52 |
||
|
04
|
04
131-16324-00-00 Plate, Clutch 1 |
131-16324-00-00 |
from US $15.41 |
||
|
05
|
05
357-16351-00-00
Plate, Pressure 1
|
357-16351-00-00 |
— | ||
|
06
|
06
90501-20122-00 Spring, Compression |
90501-20122-00 |
from US $3.83 |
||
|
07
|
07
90119-05001-00 Bolt, With Washer |
90119-05001-00 |
from US $2.08 |
||
|
08
|
08
93210-99103-00 O-Ring |
93210-99103-00 |
from US $6.38 |
||
|
09
|
09
122-16164-00-00 Plate, Thrust 2 |
122-16164-00-00 |
from US $7.79 |
||
|
10
|
10
90170-12060-00 Nut |
90170-12060-00 |
from US $1.70 |
||
| replacement | |||||
|
10
|
10
90170-12337-00 Nut(37F) |
90170-12337-00 |
from US $2.31 |
||
|
11
|
11
90208-12015-00 Washer, Conical Spring |
90208-12015-00 |
US $1.70 |
||
| replacement | |||||
|
11
|
11
902-08128-00-00 Washer, Conical Spring |
902-08128-00-00 |
US $1.04 |
||
|
12
|
12
90560-17123-00 Spacer |
90560-17123-00 |
US $32.54 |
||
|
13
|
13
122-16164-00-00 Plate, Thrust 2 |
122-16164-00-00 |
from US $7.79 |
||
|
14
|
14
353-16111-01-00
Gear, Pri Drive
|
353-16111-01-00 |
— | ||
|
15
|
15
90208-12015-00 Washer, Conical Spring |
90208-12015-00 |
US $1.70 |
||
| replacement | |||||
|
15
|
15
902-08128-00-00 Washer, Conical Spring |
902-08128-00-00 |
US $1.04 |
||
|
16
|
16
901-79122-44-00
Nut
|
901-79122-44-00 |
— | ||
| replacement | |||||
|
16
|
16
90179-12659-00 Nut |
90179-12659-00 |
from US $1.81 |
||
|
17
|
17
90282-05005-00 Key, Straight |
90282-05005-00 |
from US $1.70 |
||
|
18
|
18
137-16356-00-00 Rod, Push 1 |
137-16356-00-00 |
from US $18.99 |
||
|
19
|
19
353-16357-00-00 Rod, Push 2 |
353-16357-00-00 |
from US $12.49 |
||
|
20
|
20
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
20
|
20
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
21
|
21
257-15389-00-00 Oil Seal, Sd-Type |
257-15389-00-00 |
from US $6.38 |
||
| replacement | |||||
|
21
|
21
93102-04382-00 Oil Seal, Sd-Type |
93102-04382-00 |
from US $6.94 |
||
|
22
|
22
241-16341-01-00 Screw, Push |
241-16341-01-00 |
from US $16.01 |
||
|
23
|
23
901-13060-13-00 Bolt, Set |
901-13060-13-00 |
from US $2.69 |
||
|
24
|
24
95301-06700-00 Nut |
95301-06700-00 |
from US $1.43 |
||
| replacements | |||||
|
24
|
24
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
24
|
24
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
|
25
|
25
451-16342-00-00 Lever, Push |
451-16342-00-00 |
from US $25.43 |
||
|
26
|
26
90506-07066-00 Spring, Tension |
90506-07066-00 |
from US $4.25 |
||
|
27
|
27
132-16346-00-00 Hook, Spring |
132-16346-00-00 |
from US $1.84 |
||
|
28
|
28
353-16396-00-00 Housing, Push Screw |
353-16396-00-00 |
from US $32.16 |
||
|
29
|
29
93104-10085-00 Oil Seal, So-Type |
93104-10085-00 |
from US $2.36 |
||
|
30
|
30
92501-06014-00 Screw, Pan Head (97801-06014) |
92501-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
30
|
30
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
