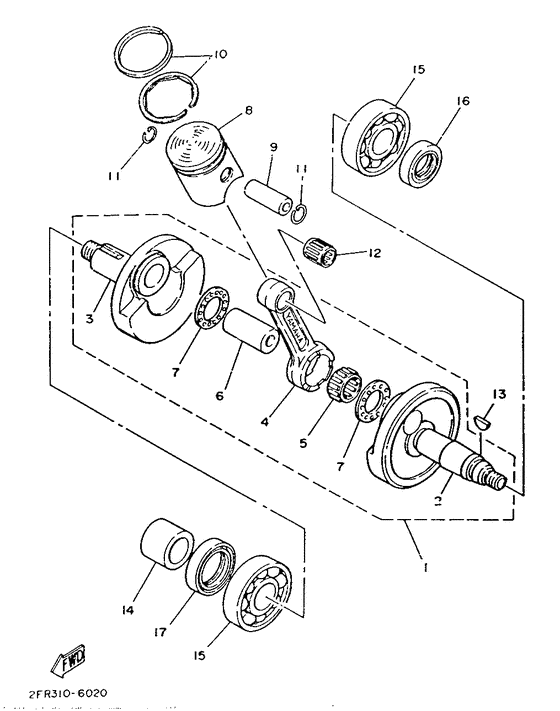

Crankshaft & Piston Diagram Yamaha RD
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 2FR
- Sales region
- England (999)
- Engine Capacity
- 50
- Model
- RD50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
U22-11400-00-00
Crankshaft Assy
|
U22-11400-00-00 |
— | ||
|
02
|
02
2U2-11412-00-00
Crank 1
|
2U2-11412-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
2U2-11422-00-00
Crank 2
|
2U2-11422-00-00 |
— | ||
|
04
|
04
3R2-11651-01-00
Rod, Connecting
|
3R2-11651-01-00 |
— | ||
|
05
|
05
93310-41809-00 Bearing |
93310-41809-00 |
from US $19.69 |
||
| replacement | |||||
|
05
|
05
93310-418C4-00 Bearing Cylinder #10 |
93310-418C4-00 |
from US $19.69 |
||
|
06
|
06
257-11681-00-00
Pin, Crank 1
|
257-11681-00-00 |
— | ||
| replacement | |||||
|
06
|
06
257-11681-10-00 Pin, Crank 1 |
257-11681-10-00 |
from US $29.75 |
||
|
07
|
07
90209-18112-00 Washer |
90209-18112-00 |
from US $3.72 |
||
|
08
|
08
5L3-11631-00-96
Piston (Std)
|
5L3-11631-00-96 |
— | ||
|
08
|
08
5L3-11635-00-00
Piston (0.25Mm O/s)
Ap |
5L3-11635-00-00 |
— | ||
|
08
|
08
5L3-11636-00-00
Piston (0.50Mm O/s)
Ap |
5L3-11636-00-00 |
— | ||
|
09
|
09
517-11633-00-00 Pin, Piston |
517-11633-00-00 |
from US $12.47 |
||
| replacement | |||||
|
09
|
09
102-11633-02-00 Pin, Piston |
102-11633-02-00 |
from US $8.84 |
||
|
10
|
10
260-11601-03-00 Piston Ring Set |
260-11601-03-00 |
from US $51.26 |
||
|
10
|
10
260-11601-13-00 Piston Ring Set (0.25Mm O/s)Ap |
260-11601-13-00 |
from US $51.26 |
||
|
10
|
10
260-11601-23-00 Piston Ring Set (0.50Mm O/s)Ap |
260-11601-23-00 |
from US $17.18 |
||
|
11
|
11
93450-13022-00 Circlip |
93450-13022-00 |
from US $1.70 |
||
|
12
|
12
93310-11268-00 Bearing |
93310-11268-00 |
from US $9.15 |
||
|
13
|
13
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.81 |
||
|
14
|
14
90387-205U9-00
Collar
|
90387-205U9-00 |
— | ||
|
15
|
15
93306-20453-00 Bearing |
93306-20453-00 |
from US $21.96 |
||
| replacements | |||||
|
15
|
15
933-06204-68-00 Bearing(4Ed) |
933-06204-68-00 |
from US $29.27 |
||
|
15
|
15
93306-20458-00 Bearing |
93306-20458-00 |
from US $22.62 |
||
|
16
|
16
93102-20009-00 Oil SealUr |
93102-20009-00 |
from US $6.52 |
||
|
16
|
16
93102-20155-00 Oil SealUr |
93102-20155-00 |
from US $6.52 |
||
| replacement | |||||
|
16
|
16
93102-20009-00 Oil SealUr |
93102-20009-00 |
from US $6.52 |
||
|
17
|
17
93103-28011-00 Oil Seal, Sw-Type (93103-28100)Ur |
93103-28011-00 |
from US $6.40 |
||
|
17
|
17
93103-28126-00 Oil SealUr |
93103-28126-00 |
from US $7.65 |
||
| replacement | |||||
|
17
|
17
93103-28011-00 Oil Seal, Sw-Type (93103-28100)Ur |
93103-28011-00 |
from US $6.40 |
||
