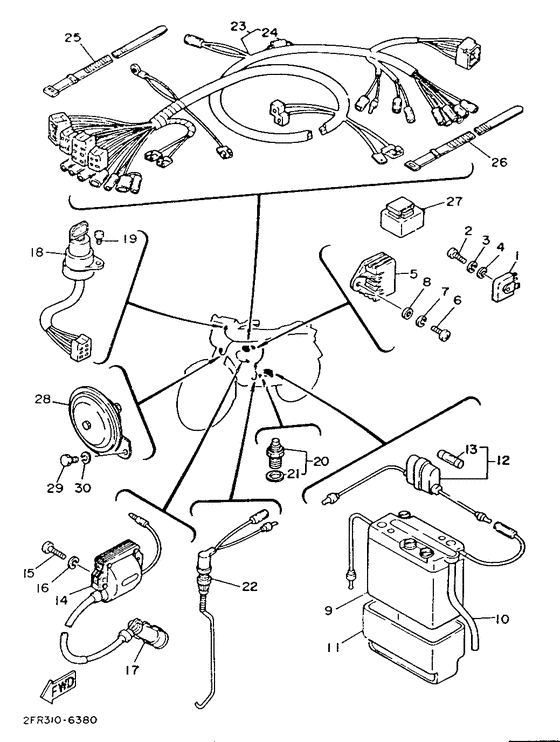

Electrical 1 Diagram Yamaha RD
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 2FR
- Sales region
- England (999)
- Engine Capacity
- 50
- Model
- RD50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
353-81970-63-00 Rectifier AssemblyStanley |
353-81970-63-00 |
from US $40.62 |
||
| replacements | |||||
|
01
|
01
353-81970-M0-00 Rectifier AssyStanley |
353-81970-M0-00 |
from US $40.62 |
||
|
01
|
01
353-81970-M1-00 Rectifier AssyStanley |
353-81970-M1-00 |
US $17.99 |
||
|
02
|
02
98501-05020-00 Screw, Pan Head |
98501-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
02
|
02
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
03
|
03
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
03
|
03
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
04
|
04
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
04
|
04
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
04
|
04
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
05
|
05
4F4-81910-60-00 Voltage Reg AssemblyStanley |
4F4-81910-60-00 |
from US $133.05 |
||
|
06
|
06
92501-06014-00 Screw, Pan Head (97801-06014) |
92501-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
06
|
06
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
07
|
07
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
07
|
07
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
08
|
08
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
08
|
08
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
08
|
08
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
08
|
08
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
09
|
09
558-82110-29-00
Battery 6N4B-2A-3
|
558-82110-29-00 |
— | ||
| replacements | |||||
|
09
|
09
6N4-B2A3Y-00-00
CB7LB GS BATTERY
|
6N4-B2A3Y-00-00 |
— | ||
|
09
|
09
6N4-B2A3G-00-00
BULK PREMIER II CABL
|
6N4-B2A3G-00-00 |
— | ||
|
09
|
09
558-82110-09-00
Battery (6N4B-2A-3)
|
558-82110-09-00 |
— | ||
|
09
|
09
6N4-B2A30-00-00
Bat 6N4B-2A-3 Yu
|
6N4-B2A30-00-00 |
— | ||
|
10
|
10
90445-08171-00
Pipe, Breather
|
90445-08171-00 |
— | ||
| replacements | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
2RH-21826-00-00
Pipe, Breather
|
2RH-21826-00-00 |
— | ||
|
11
|
11
3T2-82122-00-00
Seat, Battery
|
3T2-82122-00-00 |
— | ||
|
12
|
12
535-82150-00-00
Fuse Holder Assy
|
535-82150-00-00 |
— | ||
|
13
|
13
116-82151-00-00
Fuse (12V-10A)
|
116-82151-00-00 |
— | ||
| replacement | |||||
|
13
|
13
1A0-82151-00-00 Fuse (12V-10A) |
1A0-82151-00-00 |
from US $4.96 |
||
|
14
|
14
2M4-82310-41-00 Ignition Coil Assy |
2M4-82310-41-00 |
US $163.03 |
||
| replacement | |||||
|
14
|
14
355-82310-40-00 Ignition Coil AssemblyIgnition coil ass`y |
355-82310-40-00 |
from US $163.03 |
||
|
15
|
15
92501-06020-00 Screw, Pan Head |
92501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
16
|
16
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
17
|
17
1J7-82370-10-00 Plug Cap AssemblyWith noise suppresser |
1J7-82370-10-00 |
from US $45.18 |
||
| replacement | |||||
|
17
|
17
1J7-82370-00-00 Plug Cap AssemblyWith noise suppresser |
1J7-82370-00-00 |
from US $45.18 |
||
|
18
|
18
5A1-82508-20-00
Main Switch Assembly (4U5-82508
|
5A1-82508-20-00 |
— | ||
|
19
|
19
98901-04010-00 Screw, Bind (33V) |
98901-04010-00 |
from US $1.28 |
||
| replacement | |||||
|
19
|
19
98980-04010-00 Screw, Bind |
98980-04010-00 |
from US $1.39 |
||
|
20
|
20
341-82540-01-00
Neutral Switch Assy
|
341-82540-01-00 |
— | ||
| replacements | |||||
|
20
|
20
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
20
|
20
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $26.22 |
||
|
21
|
21
341-82543-00-00
Gasket
|
341-82543-00-00 |
— | ||
| replacement | |||||
|
21
|
21
296-82543-00-00 Gasket |
296-82543-00-00 |
from US $2.69 |
||
|
22
|
22
5G0-82530-00-00
Stop Switch Assy
|
5G0-82530-00-00 |
— | ||
| replacement | |||||
|
22
|
22
5G0-82530-02-00
Stop Switch Assy
|
5G0-82530-02-00 |
— | ||
|
23
|
23
2FR-82590-00-00
Wire Harness Assy
|
2FR-82590-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
3K7-81980-00-00 Diode Assy |
3K7-81980-00-00 |
from US $15.44 |
||
|
25
|
25
25G-83936-00-00 Band, Switch Cord |
25G-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
26
|
26
2FR-83936-00-00
Band, Switch Cord
|
2FR-83936-00-00 |
— | ||
|
27
|
27
2FR-83350-00-00
Flasher Relay Assy
|
2FR-83350-00-00 |
— | ||
|
28
|
28
5G1-83371-11-00
Horn
|
5G1-83371-11-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
97006-06012-00 Bolt |
97006-06012-00 |
from US $1.21 |
||
| replacement | |||||
|
29
|
29
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.39 |
||
|
30
|
30
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
30
|
30
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
