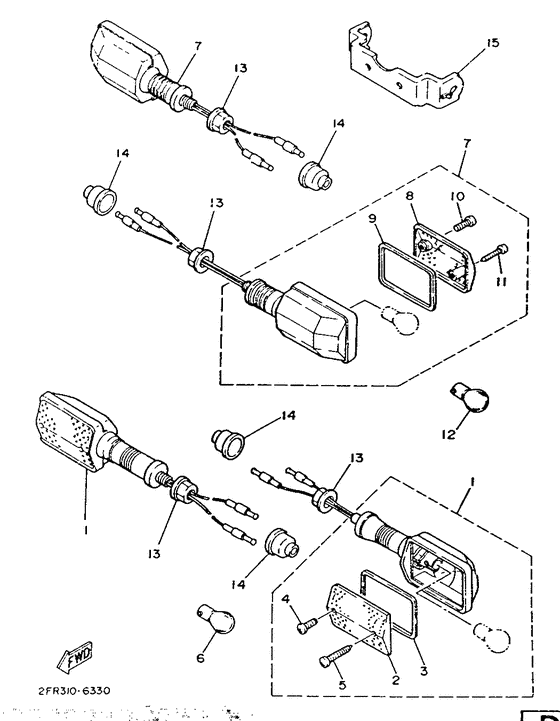

Flasher light Diagram Yamaha RD
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 2FR
- Sales region
- England (999)
- Engine Capacity
- 50
- Model
- RD50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
12V-83310-11-00
Front Flasher Light Assy 1
|
12V-83310-11-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
5Y1-83312-00-00 Lens, Flasher |
5Y1-83312-00-00 |
from US $12.19 |
||
|
03
|
03
5Y1-83313-00-00 Gasket, Flasher Lens |
5Y1-83313-00-00 |
from US $4.53 |
||
|
04
|
04
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
05
|
05
97702-40630-00 Screw, Tapping |
97702-40630-00 |
from US $2.13 |
||
| replacement | |||||
|
05
|
05
97780-40130-00 Ybs83-430 Screw,panh. Tapping |
97780-40130-00 |
from US $2.13 |
||
|
07
|
07
10V-83330-41-00
Rear Flasher Light Assy 1
|
10V-83330-41-00 |
— | ||
|
08
|
08
10V-83312-00-00 Lens, Flasher |
10V-83312-00-00 |
US $12.61 |
||
| replacement | |||||
|
08
|
08
5Y1-83312-00-00 Lens, Flasher |
5Y1-83312-00-00 |
from US $12.19 |
||
|
09
|
09
5Y1-83313-00-00 Gasket, Flasher Lens |
5Y1-83313-00-00 |
from US $4.53 |
||
|
10
|
10
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
11
|
11
97702-40630-00 Screw, Tapping |
97702-40630-00 |
from US $2.13 |
||
| replacement | |||||
|
11
|
11
97780-40130-00 Ybs83-430 Screw,panh. Tapping |
97780-40130-00 |
from US $2.13 |
||
|
13
|
13
95702-12500-00 Nut, Flange |
95702-12500-00 |
from US $1.80 |
||
| replacements | |||||
|
13
|
13
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
13
|
13
90179-12588-00 Nut, Flange |
90179-12588-00 |
from US $2.22 |
||
|
14
|
14
10V-83365-00-00 Cap |
10V-83365-00-00 |
US $5.38 |
||
| replacement | |||||
|
14
|
14
10V-83365-01-00 Cap |
10V-83365-01-00 |
from US $4.27 |
||
|
15
|
15
27L-83368-00-00
Stay, Flasher 1
|
27L-83368-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
