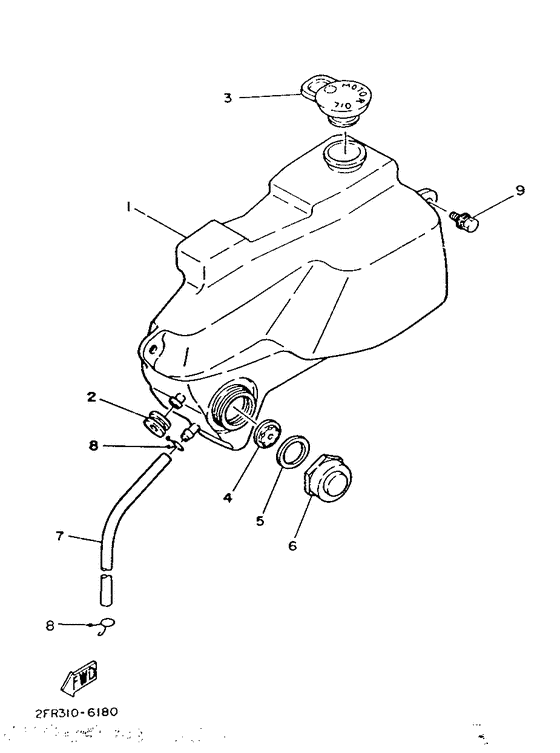

Oil tank Diagram Yamaha RD
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 2FR
- Sales region
- England (999)
- Engine Capacity
- 50
- Model
- RD50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5G0-21751-01-00
Tank, Oil
|
5G0-21751-01-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
90480-12067-00 Grommet |
90480-12067-00 |
from US $3.68 |
||
|
03
|
03
2N3-21771-01-00 Body, Cap |
2N3-21771-01-00 |
from US $14.65 |
||
| replacements | |||||
|
03
|
03
3WG-F1771-00-00
Body, Cap
|
3WG-F1771-00-00 |
— | ||
|
03
|
03
2N3-21771-02-00 BODY, CAP |
2N3-21771-02-00 |
from US $15.68 |
||
|
04
|
04
353-21761-00-00
Gauge, Level
|
353-21761-00-00 |
— | ||
|
05
|
05
353-21763-00-00
Gasket, Level Gauge
|
353-21763-00-00 |
— | ||
|
06
|
06
353-21764-00-00
Lens, Level Gauge
|
353-21764-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
90445-99251-00
Hose
|
90445-99251-00 |
— | ||
|
08
|
08
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
09
|
09
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
09
|
09
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.52 |
||
|
09
|
09
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.36 |
||
