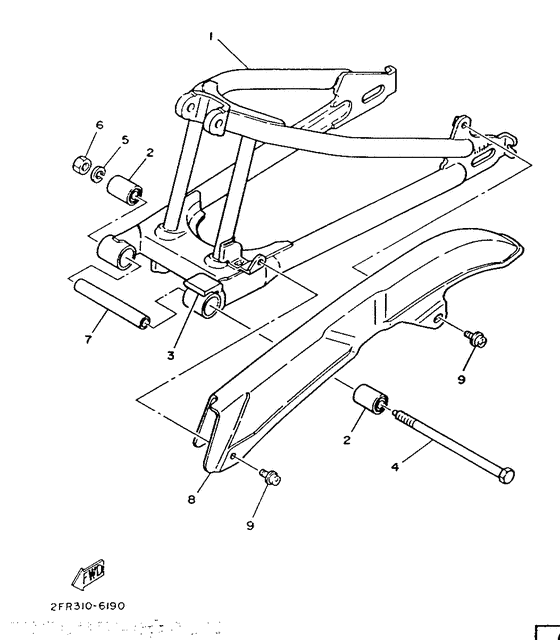

Rear arm & suspension Diagram Yamaha RD
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 2FR
- Sales region
- England (999)
- Engine Capacity
- 50
- Model
- RD50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5G0-22110-00-33
Rear Arm Comp
Yamaha black |
5G0-22110-00-33 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Yamaha black |
999-99999-99-00 |
— | ||
|
02
|
02
102-22123-00-00 Bush 1 |
102-22123-00-00 |
from US $10.73 |
||
|
03
|
03
5G0-22151-00-00
Seal, Guard
|
5G0-22151-00-00 |
— | ||
|
04
|
04
3T2-22141-01-00
Shaft, Pivot
|
3T2-22141-01-00 |
— | ||
|
05
|
05
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
05
|
05
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
06
|
06
90185-10035-00 Nut, Self-Locking |
90185-10035-00 |
from US $5.24 |
||
| replacement | |||||
|
06
|
06
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.58 |
||
|
07
|
07
903-87100-F8-00
Collar
|
903-87100-F8-00 |
— | ||
|
08
|
08
5G0-22311-00-00
Case, Chain
Black |
5G0-22311-00-00 |
— | ||
|
09
|
09
90159-06058-00 Screw, With Washer (3T2) |
90159-06058-00 |
from US $1.70 |
||
| replacement | |||||
|
09
|
09
98507-06010-00 Screw, Pan Head |
98507-06010-00 |
from US $1.07 |
||
