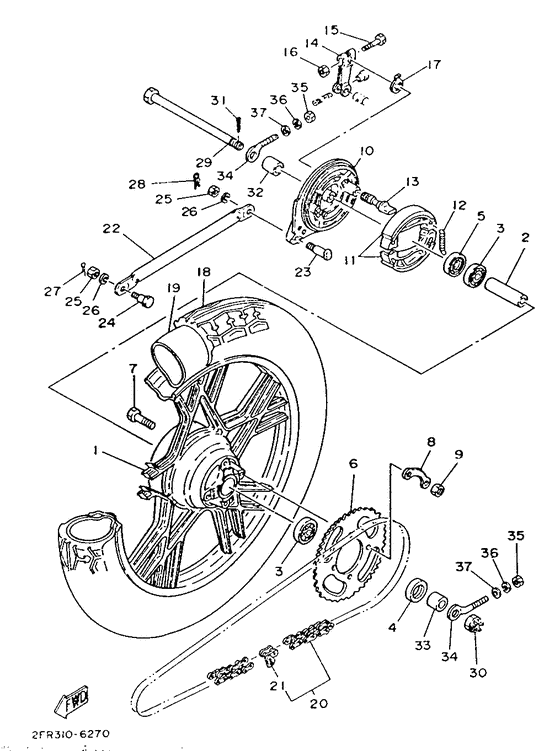

Rear wheel Diagram Yamaha RD
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 2FR
- Sales region
- England (999)
- Engine Capacity
- 50
- Model
- RD50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5G0-25338-01-8L
Cast Wheel, Rear
Nebular gold |
5G0-25338-01-8L |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Nebular gold |
999-99999-99-00 |
— | ||
|
02
|
02
90560-12170-00 Spacer |
90560-12170-00 |
from US $12.89 |
||
|
03
|
03
93306-30101-00 Bearing |
93306-30101-00 |
from US $9.57 |
||
|
04
|
04
93106-20002-00 Oil Seal |
93106-20002-00 |
from US $8.50 |
||
| replacement | |||||
|
04
|
04
93106-20033-00 Oil Seal(3Tu) |
93106-20033-00 |
from US $8.50 |
||
|
05
|
05
93104-21016-00 Oil Seal, Sd-Type |
93104-21016-00 |
from US $9.35 |
||
|
06
|
06
2U2-25446-10-33
Sprocket, Driven (46T)
|
2U2-25446-10-33 |
— | ||
| replacements | |||||
|
06
|
06
4U5-25447-10-00
Sprocket, Drvn47T (1T9-25446-10
|
4U5-25447-10-00 |
— | ||
|
06
|
06
2U2-25446-10-00
Gear, sprocket wheel
|
2U2-25446-10-00 |
— | ||
|
07
|
07
90109-08319-00 Bolt |
90109-08319-00 |
from US $7.93 |
||
|
08
|
08
102-25412-00-00 Washer, Lock |
102-25412-00-00 |
from US $2.55 |
||
| replacements | |||||
|
08
|
08
4AW-25412-00-00 Washer |
4AW-25412-00-00 |
from US $2.55 |
||
|
08
|
08
3M5-25412-00-00 Washer, Lock |
3M5-25412-00-00 |
from US $4.39 |
||
|
09
|
09
90170-08158-00 Nut, Hexagon (509) |
90170-08158-00 |
from US $2.08 |
||
|
10
|
10
1M3-25321-01-8L
Plate, Brake Shoe
Nebular gold |
1M3-25321-01-8L |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
Nebular gold |
999-99999-99-00 |
— | ||
|
11
|
11
326-W2536-00-00
Brakeshoe Set-2Pcs (326-25330-1
|
326-W2536-00-00 |
— | ||
| replacement | |||||
|
11
|
11
4BE-W253E-00-00 Brake Shoe Kit |
4BE-W253E-00-00 |
from US $27.27 |
||
|
12
|
12
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
13
|
13
3Y6-25351-00-00 Camshaft |
3Y6-25351-00-00 |
from US $27.77 |
||
| replacement | |||||
|
13
|
13
4GL-25351-00-00 Camshaft |
4GL-25351-00-00 |
from US $27.77 |
||
|
14
|
14
538-25355-00-00 Lever, Camshaft |
538-25355-00-00 |
from US $8.42 |
||
|
15
|
15
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
16
|
16
95301-06600-00 Nut, Hexagon95301-06600 |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
16
|
16
95380-06600-00 Nut, Hexagon95301-06600 |
95380-06600-00 |
from US $1.18 |
||
|
17
|
17
3Y6-2533A-01-00 Plate, Indicator |
3Y6-2533A-01-00 |
from US $2.55 |
||
| replacement | |||||
|
17
|
17
5AD-F533A-00-00
Plate, Indicator
|
5AD-F533A-00-00 |
— | ||
|
18
|
18
94127-18247-00
Tire
|
94127-18247-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
94227-18195-00 TubeDunlop |
94227-18195-00 |
US $37.53 |
||
|
20
|
20
94580-52112-00
Chain
|
94580-52112-00 |
— | ||
| replacement | |||||
|
20
|
20
945-80521-14-00
Chain Drive
|
945-80521-14-00 |
— | ||
|
21
|
21
94680-52001-00 Joint, Chain(Did 420M)Daido |
94680-52001-00 |
from US $2.98 |
||
|
22
|
22
27L-25371-00-00 Bar, Tension |
27L-25371-00-00 |
from US $33.35 |
||
|
23
|
23
90109-08183-00 Bolt |
90109-08183-00 |
from US $5.67 |
||
| replacement | |||||
|
23
|
23
90109-08816-00 Bolt |
90109-08816-00 |
US $2.55 |
||
|
24
|
24
90109-08368-00 Bolt |
90109-08368-00 |
from US $5.67 |
||
|
25
|
25
95301-08700-00 Nut |
95301-08700-00 |
US $1.42 |
||
| replacement | |||||
|
25
|
25
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
26
|
26
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
27
|
27
91401-20015-00 Pin. Cotter |
91401-20015-00 |
US $1.13 |
||
| replacements | |||||
|
27
|
27
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
27
|
27
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
28
|
28
437-83525-00-00 Clip |
437-83525-00-00 |
US $1.84 |
||
| replacement | |||||
|
28
|
28
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
29
|
29
367-25381-00-00 Axle, Wheel |
367-25381-00-00 |
from US $49.34 |
||
| replacement | |||||
|
29
|
29
367-25381-01-00 Axle, Wheel |
367-25381-01-00 |
from US $57.96 |
||
|
30
|
30
90171-12005-00 Nut, Castle |
90171-12005-00 |
from US $3.83 |
||
| replacement | |||||
|
30
|
30
90171-12039-00 Nut, Castle(36R) |
90171-12039-00 |
from US $2.27 |
||
|
31
|
31
91401-30025-00 Pin, Split |
91401-30025-00 |
from US $1.42 |
||
| replacement | |||||
|
31
|
31
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
32
|
32
90387-12412-00 Collar |
90387-12412-00 |
from US $6.09 |
||
|
33
|
33
90387-12096-00 Collar |
90387-12096-00 |
from US $6.66 |
||
| replacement | |||||
|
33
|
33
90387-120F9-00 Collar |
90387-120F9-00 |
from US $5.13 |
||
|
34
|
34
102-25389-00-00 Puller, Chain |
102-25389-00-00 |
from US $10.58 |
||
| replacements | |||||
|
34
|
34
3AC-2538G-10-00 Puller, Chain |
3AC-2538G-10-00 |
from US $10.63 |
||
|
34
|
34
4GL-2538G-10-00 Puller, Chain |
4GL-2538G-10-00 |
from US $10.34 |
||
|
35
|
35
95301-06600-00 Nut, Hexagon95301-06600 |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
35
|
35
95380-06600-00 Nut, Hexagon95301-06600 |
95380-06600-00 |
from US $1.18 |
||
|
36
|
36
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
36
|
36
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
37
|
37
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
