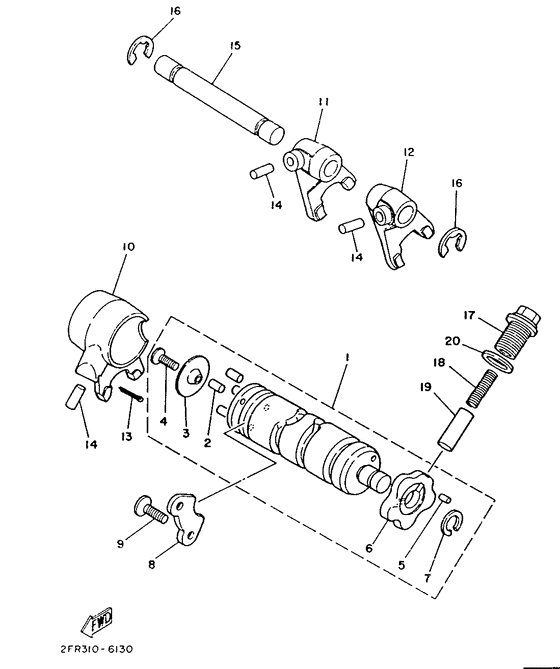

Shift Cam & Fork Diagram Yamaha RD
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 2FR
- Sales region
- England (999)
- Engine Capacity
- 50
- Model
- RD50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4U5-18540-00-00
Shift Cam Assembly
|
4U5-18540-00-00 |
— | ||
|
02
|
02
93604-10011-00 Pin, Dowel |
93604-10011-00 |
from US $1.70 |
||
|
03
|
03
214-18561-00-00
Plate, Side 1
|
214-18561-00-00 |
— | ||
|
04
|
04
98701-05012-00 Screw, Countersunk |
98701-05012-00 |
from US $1.26 |
||
| replacement | |||||
|
04
|
04
98707-05012-00 Screw, Countersunk |
98707-05012-00 |
from US $2.21 |
||
|
05
|
05
93604-08071-00 Pin, Dowel |
93604-08071-00 |
from US $1.45 |
||
|
06
|
06
353-18141-01-00
Plate, Stopper
|
353-18141-01-00 |
— | ||
|
07
|
07
93440-12026-00
Circlip, Outer
|
93440-12026-00 |
— | ||
|
08
|
08
353-18562-00-00
Plate, Stopper 2
|
353-18562-00-00 |
— | ||
|
09
|
09
92701-06012-00 Screw, Flat Head |
92701-06012-00 |
from US $2.41 |
||
| replacement | |||||
|
09
|
09
98707-06012-00 Screw, Flat Head |
98707-06012-00 |
from US $2.09 |
||
|
10
|
10
353-18511-01-00
Fork, Shift 1
|
353-18511-01-00 |
— | ||
|
11
|
11
353-18512-01-00
Fork, Shift 2
|
353-18512-01-00 |
— | ||
|
12
|
12
353-18513-01-00
Fork, Shift 3
|
353-18513-01-00 |
— | ||
|
13
|
13
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
13
|
13
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
14
|
14
93606-14081-00 Pin, Dowel |
93606-14081-00 |
from US $1.28 |
||
|
15
|
15
214-18531-00-00 Bar, Shift Fork Guide 1 |
214-18531-00-00 |
US $18.42 |
||
|
16
|
16
99001-10600-00 Circlip93430-10016 |
99001-10600-00 |
from US $1.39 |
||
| replacement | |||||
|
16
|
16
99006-10600-00 Circlip93430-10016 |
99006-10600-00 |
from US $1.39 |
||
|
17
|
17
90109-14485-00 Bolt |
90109-14485-00 |
from US $8.86 |
||
|
18
|
18
90501-09292-00
Spring, Compression
|
90501-09292-00 |
— | ||
|
19
|
19
353-18547-00-00
Stopper, Cam
|
353-18547-00-00 |
— | ||
|
20
|
20
137-15353-00-00
Gasket, Drain
|
137-15353-00-00 |
— | ||
| replacement | |||||
|
20
|
20
4F4-14766-00-00 Washer, Protector (Gasket) |
4F4-14766-00-00 |
from US $5.95 |
||
