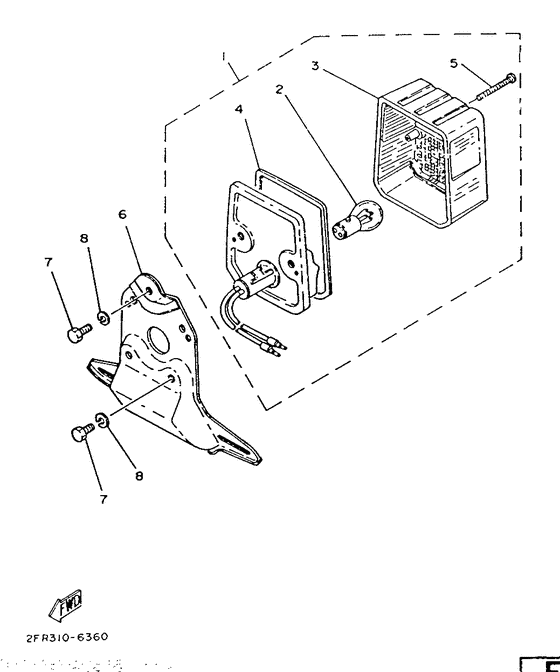

Taillight Diagram Yamaha RD
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 2FR
- Sales region
- England (999)
- Engine Capacity
- 50
- Model
- RD50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5G0-84510-E0-00
Taillight Unit Assy
|
5G0-84510-E0-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
1M8-84514-41-00
Bulb
|
1M8-84514-41-00 |
— | ||
|
03
|
03
5G0-84540-E0-00
Lens Assy
|
5G0-84540-E0-00 |
— | ||
| replacement | |||||
|
03
|
03
5G0-84540-20-00
Lens, Taillight
|
5G0-84540-20-00 |
— | ||
|
04
|
04
5G0-84545-20-00
Gasket, Lens
|
5G0-84545-20-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
98511-08050-00
Screw, Pan Head
|
98511-08050-00 |
— | ||
|
06
|
06
5G0-84551-20-98
Bracket, Licence
|
5G0-84551-20-98 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
97311-06012-00 Bolt (3U9) |
97311-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
07
|
07
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
07
|
07
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
08
|
08
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
08
|
08
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
