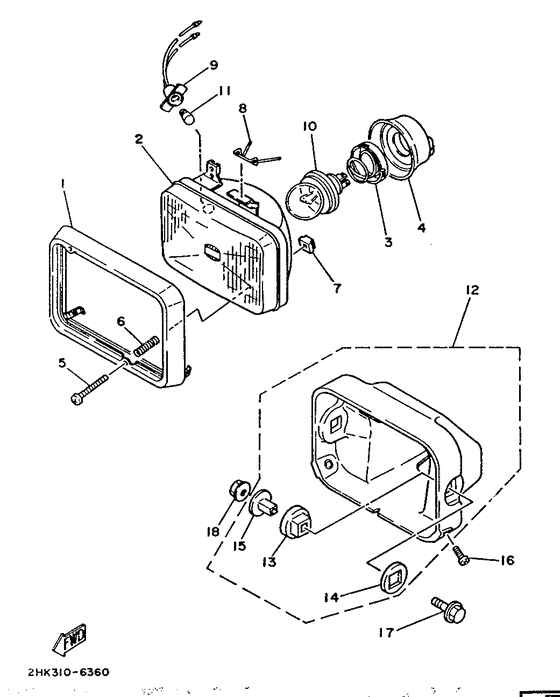

Headlight Diagram Yamaha RD
- Year
- 1986
- Colour
- New Yamaha Black (NYB; 006G)
- Model code
- 2HK
- Sales region
- England (999)
- Engine Capacity
- 125
- Model
- RD125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5G2-84315-00-00
Rim, Headlight
|
5G2-84315-00-00 |
— | ||
|
02
|
02
10W-84321-30-00
Lens Assy
|
10W-84321-30-00 |
— | ||
|
03
|
03
341-84393-40-00
Holder, Bulb (Germany)
|
341-84393-40-00 |
— | ||
|
04
|
04
533-84397-40-00 Cover |
533-84397-40-00 |
US $25.04 |
||
| replacement | |||||
|
04
|
04
46X-84396-00-00
Cover
|
46X-84396-00-00 |
— | ||
|
05
|
05
10W-84331-00-00 Screw, Rim Adjusting |
10W-84331-00-00 |
from US $1.49 |
||
| replacement | |||||
|
05
|
05
98507-04050-00 Screw, Pan Head |
98507-04050-00 |
from US $3.40 |
||
|
06
|
06
341-84332-60-00 Spring |
341-84332-60-00 |
from US $3.12 |
||
|
07
|
07
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $3.12 |
||
|
08
|
08
14T-84124-00-00 Set Spring (5G2-84324-A0) |
14T-84124-00-00 |
from US $7.08 |
||
|
09
|
09
34L-84346-00-00 Socket, Pilot Light |
34L-84346-00-00 |
US $21.11 |
||
| replacement | |||||
|
09
|
09
52E-84346-00-00 Socket, Pilot Light |
52E-84346-00-00 |
US $21.11 |
||
|
12
|
12
10W-84330-00-00
Body Assy
|
10W-84330-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
498-84163-00-00
Damper
|
498-84163-00-00 |
— | ||
|
14
|
14
1M1-84164-00-00
Damper
|
1M1-84164-00-00 |
— | ||
|
15
|
15
498-84145-60-00 Collar, Body Fitting |
498-84145-60-00 |
from US $9.81 |
||
|
16
|
16
98506-05012-00 Screw, Pan Head |
98506-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
16
|
16
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
16
|
16
976-06051-12-00
Screw, Pan Head With Washer
|
976-06051-12-00 |
— | ||
|
17
|
17
90105-08174-00 Bolt, Flange |
90105-08174-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
95027-08030-00 Bolt, Flange |
95027-08030-00 |
from US $1.56 |
||
|
18
|
18
957-02085-00-00
Nut, Flange
|
957-02085-00-00 |
— | ||
| replacements | |||||
|
18
|
18
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.07 |
||
|
18
|
18
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
18
|
18
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
