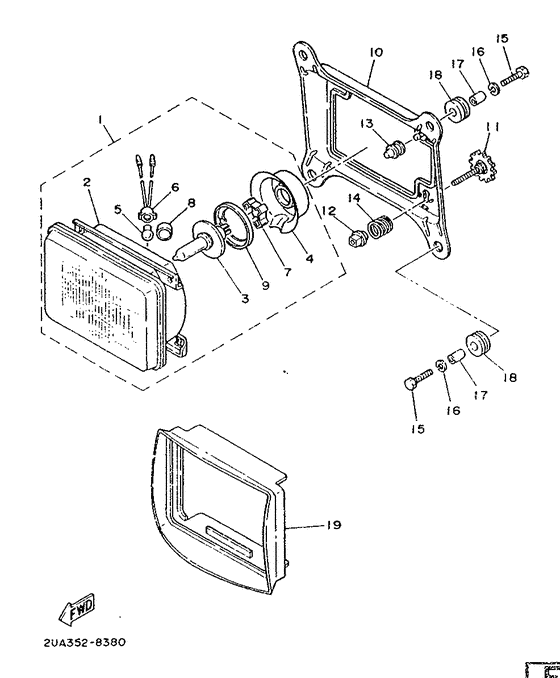

Headlight Diagram Yamaha RD
- Year
- 1988
- Colour
- Silky White (SW; 00GE)
- Model code
- 2UA
- Sales region
- Italy (999)
- Engine Capacity
- 350
- Model
- RD350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1YH-H432E-00-00
faro delantero compl
Made in brazil |
1YH-H432E-00-00 |
— | ||
|
02
|
02
1YH-H4320-01-00
Lens Assy
|
1YH-H4320-01-00 |
— | ||
|
03
|
03
1YH-H4397-01-00
Cover, Socket
|
1YH-H4397-01-00 |
— | ||
|
04
|
04
1YH-H4397-01-00
Cover, Socket
|
1YH-H4397-01-00 |
— | ||
|
05
|
05
1YH-H4347-01-00
Bulb
|
1YH-H4347-01-00 |
— | ||
|
06
|
06
1YH-H4350-01-00
Socket Cord Assy 2
|
1YH-H4350-01-00 |
— | ||
|
07
|
07
1YH-H432F-00-00
terminal, protector
|
1YH-H432F-00-00 |
— | ||
|
08
|
08
1YH-H432G-00-00
anillo protector
|
1YH-H432G-00-00 |
— | ||
|
09
|
09
1YH-H4375-01-00
Fitting Plate, Bulb
|
1YH-H4375-01-00 |
— | ||
|
10
|
10
51L-84311-00-00
Body, Headlight
|
51L-84311-00-00 |
— | ||
|
11
|
11
47X-84337-00-00
Bolt, Special
|
47X-84337-00-00 |
— | ||
|
12
|
12
51L-84334-00-00 Nut, Adjusting |
51L-84334-00-00 |
from US $10.55 |
||
|
13
|
13
51L-8431U-00-00
Holder
|
51L-8431U-00-00 |
— | ||
| replacement | |||||
|
13
|
13
3AJ-8431U-00-00 Holder |
3AJ-8431U-00-00 |
from US $8.93 |
||
|
14
|
14
51L-84332-00-00 Spring, Screw |
51L-84332-00-00 |
from US $4.96 |
||
|
15
|
15
97001-06025-00 Bolt(53L) |
97001-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
16
|
16
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
17
|
17
903-87073-91-00 Collar |
903-87073-91-00 |
from US $1.84 |
||
|
18
|
18
90480-14229-00 Grommet |
90480-14229-00 |
from US $1.66 |
||
|
19
|
19
51L-84196-01-00
Cover, Socket
|
51L-84196-01-00 |
— | ||
