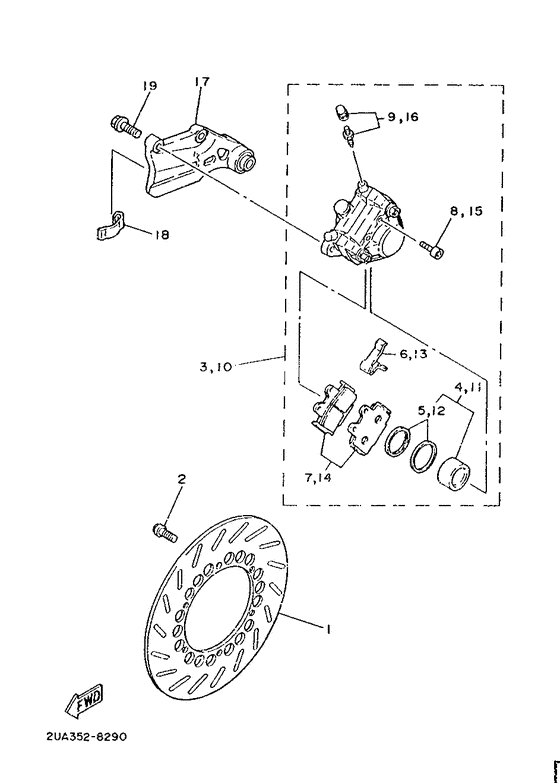

Rear brake caliper Diagram Yamaha RD
- Year
- 1988
- Colour
- Silky White (SW; 00GE)
- Model code
- 2UA
- Sales region
- Italy (999)
- Engine Capacity
- 350
- Model
- RD350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1UA-25831-00-33
Disc, Brake (Right)
Ur yamaha black |
1UA-25831-00-33 |
— | ||
|
01
|
01
1UA-25831-00-8L
Disc, Brake (Right)
Ur nebular gold |
1UA-25831-00-8L |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur nebular gold |
999-99999-99-00 |
— | ||
|
02
|
02
90149-08230-00 Bolt, Button Head |
90149-08230-00 |
from US $1.70 |
||
| replacements | |||||
|
02
|
02
92017-08020-00 Bolt, Button |
92017-08020-00 |
from US $1.07 |
||
|
02
|
02
90110-08096-00 Bolt, Hexagon Socket Head |
90110-08096-00 |
from US $1.70 |
||
|
03
|
03
1AR-25810-51-00 Caliper AssyWorm silver |
1AR-25810-51-00 |
US $394.71 |
||
| replacement | |||||
|
03
|
03
1AR-2580W-00-00 Caliper Assy, Rear 2Worm silver |
1AR-2580W-00-00 |
US $394.71 |
||
|
04
|
04
51L-W0057-00-00 Piston Assembly, Caliper |
51L-W0057-00-00 |
from US $136.92 |
||
|
05
|
05
51L-W0047-00-00 Caliper Seal Kit |
51L-W0047-00-00 |
from US $55.40 |
||
| replacement | |||||
|
05
|
05
51L-W0047-11-00 Caliper Seal Kit |
51L-W0047-11-00 |
from US $55.40 |
||
|
06
|
06
51L-25919-00-00 Support, Pad |
51L-25919-00-00 |
from US $27.34 |
||
|
07
|
07
51L-W0046-01-00 Brake Pad Kit 2 |
51L-W0046-01-00 |
from US $53.14 |
||
| replacement | |||||
|
07
|
07
4AP-W0046-00-00 Brake Pad Kit 2 |
4AP-W0046-00-00 |
from US $53.75 |
||
|
08
|
08
51L-25924-00-00 Pin, Pad |
51L-25924-00-00 |
from US $17.91 |
||
| replacement | |||||
|
08
|
08
4FL-25924-00-00 Pin, Pad |
4FL-25924-00-00 |
from US $22.95 |
||
|
09
|
09
51L-W0048-00-00
Bleed Screw Kit
|
51L-W0048-00-00 |
— | ||
| replacement | |||||
|
09
|
09
15B-W0048-00-00 Bleed Screw Kit |
15B-W0048-00-00 |
from US $8.08 |
||
|
10
|
10
1XG-25810-50-00 Caliper AssyNebular gold |
1XG-25810-50-00 |
US $394.71 |
||
| replacement | |||||
|
10
|
10
1XG-2580W-00-00 Caliper Assy, Rear 2Nebular gold |
1XG-2580W-00-00 |
US $394.71 |
||
|
11
|
11
51L-W0057-00-00 Piston Assembly, Caliper |
51L-W0057-00-00 |
from US $136.92 |
||
|
12
|
12
51L-W0047-00-00 Caliper Seal Kit |
51L-W0047-00-00 |
from US $55.40 |
||
| replacement | |||||
|
12
|
12
51L-W0047-11-00 Caliper Seal Kit |
51L-W0047-11-00 |
from US $55.40 |
||
|
13
|
13
51L-25919-00-00 Support, Pad |
51L-25919-00-00 |
from US $27.34 |
||
|
14
|
14
51L-W0046-01-00 Brake Pad Kit 2 |
51L-W0046-01-00 |
from US $53.14 |
||
| replacement | |||||
|
14
|
14
4AP-W0046-00-00 Brake Pad Kit 2 |
4AP-W0046-00-00 |
from US $53.75 |
||
|
15
|
15
51L-25924-00-00 Pin, Pad |
51L-25924-00-00 |
from US $17.91 |
||
| replacement | |||||
|
15
|
15
4FL-25924-00-00 Pin, Pad |
4FL-25924-00-00 |
from US $22.95 |
||
|
16
|
16
51L-W0048-00-00
Bleed Screw Kit
|
51L-W0048-00-00 |
— | ||
| replacement | |||||
|
16
|
16
15B-W0048-00-00 Bleed Screw Kit |
15B-W0048-00-00 |
from US $8.08 |
||
|
17
|
17
51L-25919-00-98
Support, Pad
Low gloss black |
51L-25919-00-98 |
— | ||
|
18
|
18
33M-25927-00-00
Spring, Support
|
33M-25927-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
90105-10363-00 Bolt, Flange |
90105-10363-00 |
from US $1.84 |
||
| replacements | |||||
|
19
|
19
901-05106-38-00 Bolt, Flange |
901-05106-38-00 |
from US $2.13 |
||
|
19
|
19
90105-10634-00 Bolt, Flange |
90105-10634-00 |
from US $1.84 |
||
