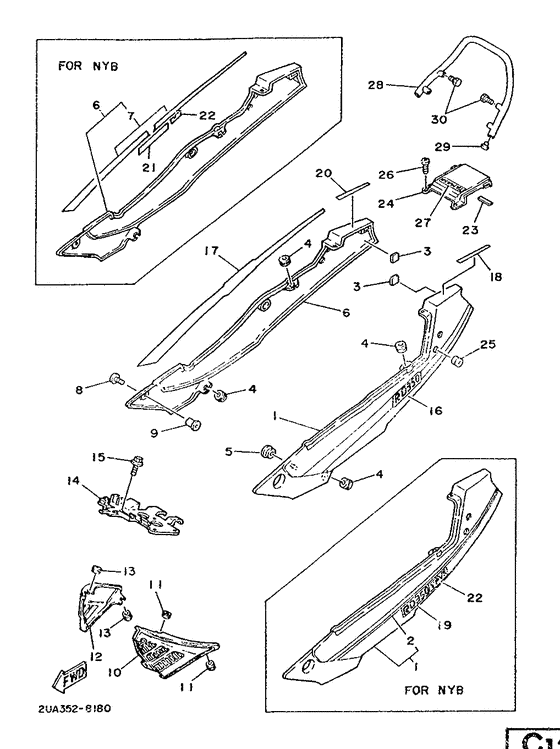

Side cover Diagram Yamaha RD
- Year
- 1988
- Colour
- Silky White (SW; 00GE)
- Model code
- 2UA
- Sales region
- Italy (999)
- Engine Capacity
- 350
- Model
- RD350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1UA-21711-00-0X
Cover, Side 1
Ur new yamaha black/midnight s |
1UA-21711-00-0X |
— | ||
|
01
|
01
1UA-21711-00-GE
Cover, Side 1
Ur silky white |
1UA-21711-00-GE |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur silky white |
999-99999-99-00 |
— | ||
|
02
|
02
2UA-2173E-00-00
Graphic 1
Para nyb |
2UA-2173E-00-00 |
— | ||
|
03
|
03
4J2-21778-00-00 CapPara nyb |
4J2-21778-00-00 |
from US $1.84 |
||
| replacement | |||||
|
03
|
03
1WG-2143A-00-00 CapPara nyb |
1WG-2143A-00-00 |
from US $5.67 |
||
|
04
|
04
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.66 |
||
|
05
|
05
90480-13426-00 Grommet |
90480-13426-00 |
from US $1.84 |
||
| replacement | |||||
|
05
|
05
90480-13567-00 Grommet |
90480-13567-00 |
from US $1.84 |
||
|
06
|
06
1UA-21721-00-0X
Cover, Side 2
Ur new yamaaha black/midnight |
1UA-21721-00-0X |
— | ||
|
06
|
06
1UA-21721-00-GE
Cover, Side 2
Ur silky white |
1UA-21721-00-GE |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
Ur silky white |
999-99999-99-00 |
— | ||
|
07
|
07
2UA-2173F-00-00
Graphic 2
Para nyb |
2UA-2173F-00-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
Para nyb |
999-99999-99-00 |
— | ||
|
08
|
08
90110-06090-00 Bolt, Hexagon Socket Head |
90110-06090-00 |
from US $1.84 |
||
| replacement | |||||
|
08
|
08
92017-06016-00 Bolt, Button Head |
92017-06016-00 |
from US $1.56 |
||
|
09
|
09
90179-06520-00 Nut |
90179-06520-00 |
from US $5.81 |
||
|
10
|
10
1UA-21731-01-00 Cover, Side 3 |
1UA-21731-01-00 |
US $63.54 |
||
|
11
|
11
90480-12320-00 Grommet |
90480-12320-00 |
from US $1.56 |
||
|
12
|
12
29L-21741-00-00
Cover, Side 4
|
29L-21741-00-00 |
— | ||
|
13
|
13
90480-12320-00 Grommet |
90480-12320-00 |
from US $1.56 |
||
|
14
|
14
1UA-21243-00-00
Plate, Bridge
|
1UA-21243-00-00 |
— | ||
|
15
|
15
90119-06042-00 Bolt, With Washer |
90119-06042-00 |
from US $1.70 |
||
| replacements | |||||
|
15
|
15
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
15
|
15
90119-06117-00 Bolt, With Washer |
90119-06117-00 |
from US $1.70 |
||
|
16
|
16
1WT-2173E-00-00
Graphic 1
Para sw |
1WT-2173E-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
Para sw |
999-99999-99-00 |
— | ||
|
17
|
17
1WT-2173F-00-00
Graphic 2
Parasw |
1WT-2173F-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
Parasw |
999-99999-99-00 |
— | ||
|
18
|
18
1WT-2174G-00-00
Graphic 3
Parasw |
1WT-2174G-00-00 |
— | ||
|
19
|
19
2UA-21781-00-00
Emblem 1
Para nyb |
2UA-21781-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
Para nyb |
999-99999-99-00 |
— | ||
|
20
|
20
1WT-2174H-00-00
Graphic 4
Para sw |
1WT-2174H-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
Para sw |
999-99999-99-00 |
— | ||
|
21
|
21
2UA-21782-00-00
Emblem 2
Para nyb |
2UA-21782-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
Para nyb |
999-99999-99-00 |
— | ||
|
22
|
22
2UA-21786-00-00
Emblem 6
Para nyb |
2UA-21786-00-00 |
— | ||
|
23
|
23
50W-2639G-00-00 Seal |
50W-2639G-00-00 |
from US $4.39 |
||
| replacement | |||||
|
23
|
23
3AJ-28371-00-00 Damper |
3AJ-28371-00-00 |
from US $4.39 |
||
|
24
|
24
1UA-21651-00-7M
Cover, Rear Fender
Ur midnight silver |
1UA-21651-00-7M |
— | ||
|
24
|
24
1UA-21651-00-AJ
Cover, Rear Fender
Ur stormy red |
1UA-21651-00-AJ |
— | ||
|
25
|
25
90480-19453-00 Grommet |
90480-19453-00 |
US $5.53 |
||
|
26
|
26
98906-06016-00 Screw, Bind |
98906-06016-00 |
from US $1.56 |
||
| replacement | |||||
|
26
|
26
98907-06016-00 Screw, Bind |
98907-06016-00 |
from US $1.56 |
||
|
27
|
27
99231-00020-00 Emblem, YamahaUr para sw |
99231-00020-00 |
from US $8.08 |
||
| replacement | |||||
|
27
|
27
99241-00080-00 Emblem, YamahaUr para sw |
99241-00080-00 |
from US $8.08 |
||
|
27
|
27
99236-00020-00 Emblem, Yamaha (Silver)Ur para nyb |
99236-00020-00 |
from US $9.07 |
||
| replacement | |||||
|
27
|
27
992-46000-80-00 Emblem (YAMAHA)Ur para nyb |
992-46000-80-00 |
from US $9.07 |
||
|
28
|
28
1UA-21645-00-00
Stay, Rear
|
1UA-21645-00-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
1J3-24742-00-00 Grommet |
1J3-24742-00-00 |
from US $4.82 |
||
|
30
|
30
98006-08035-00 Bolt (1Wt) |
98006-08035-00 |
US $2.13 |
||
| replacement | |||||
|
30
|
30
97017-08035-00 Bolt |
97017-08035-00 |
from US $2.13 |
||
