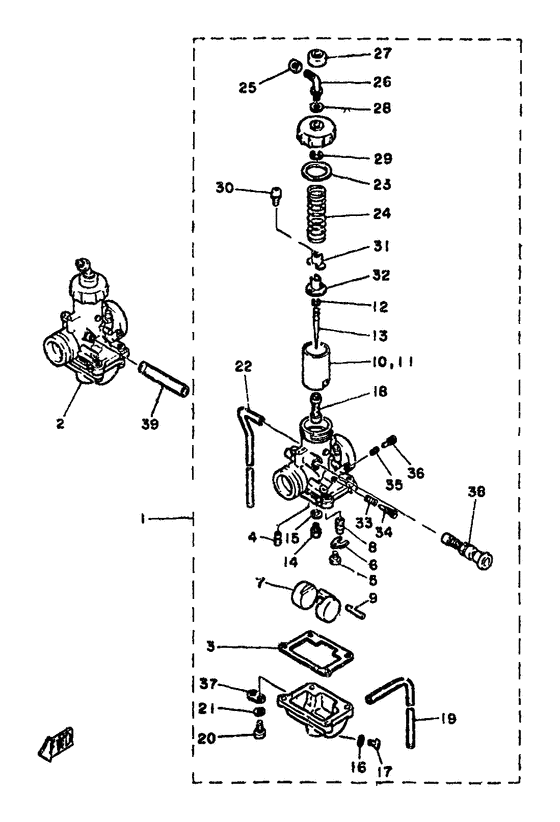

Carburetor Diagram Yamaha RD
- Year
- 1982
- Model code
- 4L0
- Sales region
- Europe (General) (999)
- Engine Capacity
- 350
- Model
- RD350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-14101-01-00
Carburetor Assy 1
|
4L0-14101-01-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
4L0-14102-01-00
Carburetor Assy 2
|
4L0-14102-01-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
304-14184-00-00 Gasket, Float Chamber |
304-14184-00-00 |
from US $2.98 |
||
|
4
|
4
260-14142-22-00 Jet, Pilot (# 22.5) |
260-14142-22-00 |
from US $8.06 |
||
| replacement | |||||
|
4
|
4
260-14142-22-A0 Jet, Pilot #22.5 |
260-14142-22-A0 |
from US $11.50 |
||
|
5
|
5
985-02040-08-00
Screw, Pan Head
|
985-02040-08-00 |
— | ||
| replacement | |||||
|
5
|
5
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
6
|
6
2H0-14146-00-00 Plate |
2H0-14146-00-00 |
from US $10.42 |
||
|
7
|
7
4L0-14185-00-00 Float |
4L0-14185-00-00 |
from US $58.99 |
||
|
8
|
8
4L0-14190-25-00 Needle Valve Assy |
4L0-14190-25-00 |
US $137.47 |
||
|
9
|
9
537-14186-00-00 Pin, Float |
537-14186-00-00 |
from US $2.13 |
||
|
10
|
10
4L0-14112-20-00
Valve, Throttle 1
|
4L0-14112-20-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
4L0-14113-20-00
Valve, Throttle 2
|
4L0-14113-20-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
164-14137-00-00
Clip
|
164-14137-00-00 |
— | ||
| replacement | |||||
|
12
|
12
3FA-14137-00-00 Clip |
3FA-14137-00-00 |
from US $2.69 |
||
|
13
|
13
4L0-14116-01-00
Needle
|
4L0-14116-01-00 |
— | ||
|
14
|
14
137-14143-42-00 Jet, Main #210 (210)Ur |
137-14143-42-00 |
from US $11.95 |
||
| replacement | |||||
|
14
|
14
137-14143-42-A1 Jet, Main #210 (210)Ur |
137-14143-42-A1 |
from US $12.94 |
||
|
14
|
14
137-14143-44-00 Jet, Main (#220)Ur |
137-14143-44-00 |
from US $12.96 |
||
| replacement | |||||
|
14
|
14
137-14143-44-A1 Jet, Main 220 (220)Ur |
137-14143-44-A1 |
from US $8.94 |
||
|
14
|
14
137-14143-46-00
Jet, Main
Ur |
137-14143-46-00 |
— | ||
| replacement | |||||
|
14
|
14
137-14143-46-A1 Jet, Main (#230)Ur |
137-14143-46-A1 |
from US $12.80 |
||
|
15
|
15
137-14153-00-00 Washer,main Jet |
137-14153-00-00 |
from US $2.98 |
||
|
16
|
16
296-14117-00-00 Washer, Plug Screw |
296-14117-00-00 |
from US $3.68 |
||
|
17
|
17
98501-05008-00 Screw, Pan Head |
98501-05008-00 |
from US $1.07 |
||
| replacements | |||||
|
17
|
17
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
17
|
17
985-80050-08-00 Screw, Pan Head |
985-80050-08-00 |
from US $1.50 |
||
|
18
|
18
4L0-14141-42-00 Nozzle, Main |
4L0-14141-42-00 |
from US $25.42 |
||
|
19
|
19
4L0-14196-00-00 Pipe, Overflow |
4L0-14196-00-00 |
US $17.80 |
||
|
20
|
20
985-01040-16-00
Screw, Pan Head
|
985-01040-16-00 |
— | ||
| replacement | |||||
|
20
|
20
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.13 |
||
|
21
|
21
929-02041-00-00
Washer, Spring
|
929-02041-00-00 |
— | ||
| replacement | |||||
|
21
|
21
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
22
|
22
4L0-14197-00-00 Pipe |
4L0-14197-00-00 |
from US $3.98 |
||
|
23
|
23
2A6-14126-00-00 Gasket |
2A6-14126-00-00 |
from US $18.14 |
||
|
24
|
24
4L0-14131-00-00
Spring, Throttle Valve
|
4L0-14131-00-00 |
— | ||
|
25
|
25
802-14161-00-00 Nut, Cable Adjusting |
802-14161-00-00 |
from US $2 |
||
|
26
|
26
1T9-14155-00-00 Guide, Cable |
1T9-14155-00-00 |
from US $26.84 |
||
| replacement | |||||
|
26
|
26
10X-14106-00-00 Cable Adjust Screw Set |
10X-14106-00-00 |
from US $27.34 |
||
|
27
|
27
1M1-14169-00-00 Cap |
1M1-14169-00-00 |
from US $7.97 |
||
| replacement | |||||
|
27
|
27
3X3-14169-00-00 Cap |
3X3-14169-00-00 |
from US $13.60 |
||
|
28
|
28
509-14198-00-00 Gasket |
509-14198-00-00 |
from US $13.60 |
||
|
29
|
29
363-14137-00-00 Clip |
363-14137-00-00 |
from US $12.13 |
||
|
30
|
30
97602-03108-00 Screw, Pan Head |
97602-03108-00 |
from US $1.21 |
||
| replacement | |||||
|
30
|
30
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
31
|
31
2Y1-14136-00-00
Seat, Spring
|
2Y1-14136-00-00 |
— | ||
|
32
|
32
509-14274-00-00
Connector
|
509-14274-00-00 |
— | ||
|
33
|
33
137-14133-00-00 Spring, Throttle Stop |
137-14133-00-00 |
from US $5.10 |
||
|
34
|
34
2A0-14122-00-00 Screw, Throttle |
2A0-14122-00-00 |
from US $29.48 |
||
| replacement | |||||
|
34
|
34
23X-14103-00-00 Throttle Screw Set |
23X-14103-00-00 |
from US $31.17 |
||
|
35
|
35
174-14134-00-00 Spring, Air Adjusting |
174-14134-00-00 |
from US $7.79 |
||
|
36
|
36
353-14123-00-00 Screw, Air Adjusting |
353-14123-00-00 |
from US $9.40 |
||
| replacement | |||||
|
36
|
36
36R-14104-00-00 Air Screw Set |
36R-14104-00-00 |
from US $9.92 |
||
|
37
|
37
500-14146-00-00 Plate |
500-14146-00-00 |
from US $5.10 |
||
|
38
|
38
4U5-14171-00-00 Plunger, Starter |
4U5-14171-00-00 |
from US $48.36 |
||
|
39
|
39
90445-09012-00 Hose (L420) |
90445-09012-00 |
from US $6.52 |
||
| replacements | |||||
|
39
|
39
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
39
|
39
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
