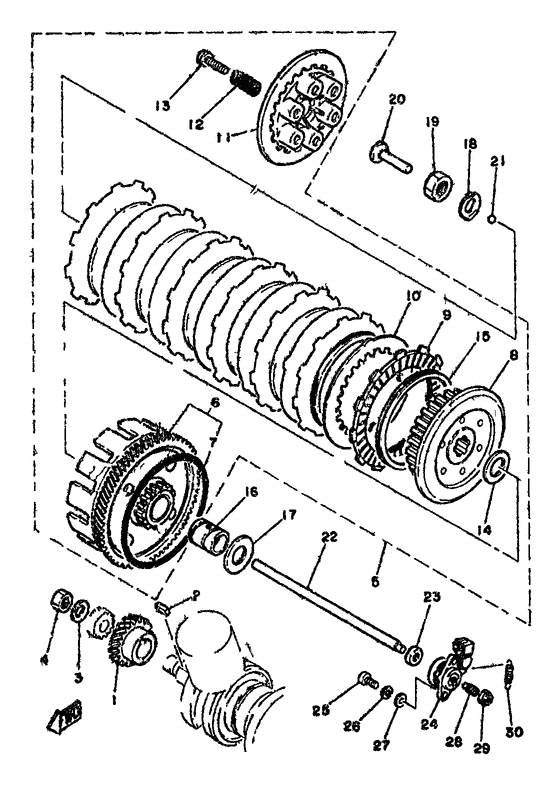

Clutch Diagram Yamaha RD
- Year
- 1982
- Model code
- 4L0
- Sales region
- Europe (General) (999)
- Engine Capacity
- 350
- Model
- RD350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-16111-00-00 Gear, Primary Drive |
4L0-16111-00-00 |
from US $49.94 |
||
| replacement | |||||
|
1
|
1
4L0-16111-00-YX Gear, Primary Drive |
4L0-16111-00-YX |
from US $79.36 |
||
|
2
|
2
90282-07023-00 Key, Straight (584) |
90282-07023-00 |
from US $5.24 |
||
|
3
|
3
90208-16019-00 Washer, Conical Spring |
90208-16019-00 |
from US $1.70 |
||
|
4
|
4
90170-16182-00 Nut |
90170-16182-00 |
from US $3.12 |
||
| replacement | |||||
|
4
|
4
90170-16425-00 Nut |
90170-16425-00 |
from US $3.12 |
||
|
5
|
5
4L0-16300-01-00
Clutch Assy
|
4L0-16300-01-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
4L0-16150-02-00 Primary Driven Gear Comp |
4L0-16150-02-00 |
US $444.66 |
||
| replacements | |||||
|
6
|
6
31K-16150-10-00 Primary Driven Gear Comp |
31K-16150-10-00 |
from US $312.66 |
||
|
6
|
6
31K-16150-11-00 Primary Driven Gear Comp |
31K-16150-11-00 |
from US $374.26 |
||
|
7
|
7
93211-10232-00 O-Ring |
93211-10232-00 |
from US $6.30 |
||
|
8
|
8
1A0-16371-00-00 Boss, Clutch |
1A0-16371-00-00 |
from US $42.66 |
||
|
9
|
9
4L0-16321-00-00 Plate, Friction |
4L0-16321-00-00 |
US $21.11 |
||
| replacement | |||||
|
9
|
9
5Y1-16331-01-00 Plate, Friction 2 |
5Y1-16331-01-00 |
from US $13.24 |
||
|
10
|
10
498-16325-00-00 Plate, Clutch 2 |
498-16325-00-00 |
from US $7.94 |
||
|
11
|
11
1A0-16351-00-00
Plate, Pressure 1
|
1A0-16351-00-00 |
— | ||
|
12
|
12
90501-23428-00 Spring, Compression |
90501-23428-00 |
from US $6.66 |
||
| replacement | |||||
|
12
|
12
90501-234L3-00 Spring, Compression |
90501-234L3-00 |
from US $6.66 |
||
|
13
|
13
90159-06010-00 Screw, With Washer |
90159-06010-00 |
from US $1.56 |
||
|
14
|
14
360-16154-00-00 Plate, Thrust 1 |
360-16154-00-00 |
from US $5.96 |
||
|
15
|
15
278-16367-00-00 Ring, Cushion |
278-16367-00-00 |
from US $4.30 |
||
|
16
|
16
278-16181-01-00 Spacer 1 |
278-16181-01-00 |
from US $18.52 |
||
|
17
|
17
360-16154-00-00 Plate, Thrust 1 |
360-16154-00-00 |
from US $5.96 |
||
|
18
|
18
90215-18131-00 Washer, Lock |
90215-18131-00 |
from US $4.82 |
||
|
19
|
19
90170-18089-00
Nut Hexagon 156161740000
|
90170-18089-00 |
— | ||
|
20
|
20
174-16356-00-00 Rod, Push 1 |
174-16356-00-00 |
from US $14.59 |
||
|
21
|
21
93505-16006-00 Ball |
93505-16006-00 |
from US $1.70 |
||
|
22
|
22
328-16357-00-00 Rod, Push 2 |
328-16357-00-00 |
from US $29.89 |
||
|
23
|
23
237-15389-00-00 Seal, Push Rod |
237-15389-00-00 |
from US $4.68 |
||
| replacement | |||||
|
23
|
23
93109-08061-00 Oil Seal |
93109-08061-00 |
from US $2.98 |
||
|
24
|
24
4L0-16340-01-00
Push Lever Assy
|
4L0-16340-01-00 |
— | ||
|
25
|
25
985-01050-16-00
Screw, Pan Head
|
985-01050-16-00 |
— | ||
| replacements | |||||
|
25
|
25
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.07 |
||
|
25
|
25
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
26
|
26
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
26
|
26
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
27
|
27
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
27
|
27
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
27
|
27
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
28
|
28
90113-08021-00 Bolt, Set |
90113-08021-00 |
from US $4.53 |
||
|
29
|
29
90179-08179-00 Nut |
90179-08179-00 |
from US $4.39 |
||
|
30
|
30
905-06092-32-00
Spring, Tension
|
905-06092-32-00 |
— | ||
| replacement | |||||
|
30
|
30
90506-11488-00 Spring, Tension |
90506-11488-00 |
from US $6.38 |
||
