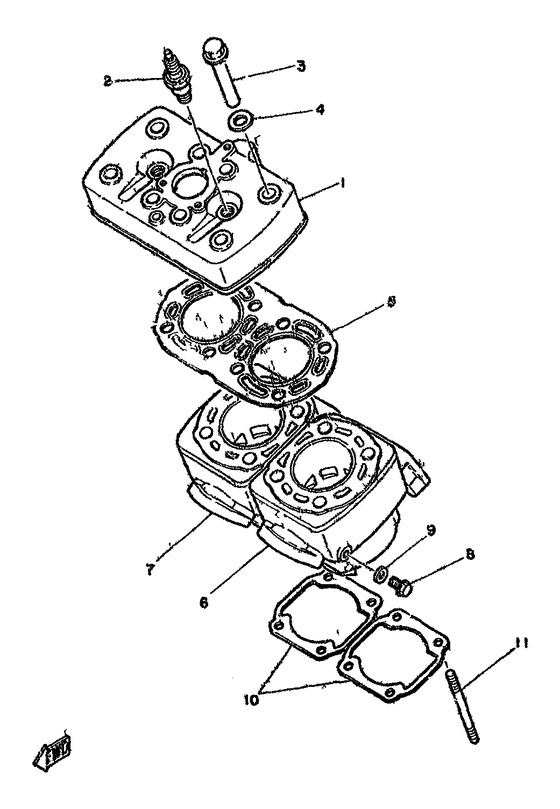

Cylinder head Diagram Yamaha RD
- Year
- 1982
- Model code
- 4L0
- Sales region
- Europe (General) (999)
- Engine Capacity
- 350
- Model
- RD350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-11111-00-00
Head, Cylinder 1
|
4L0-11111-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
94701-00045-00 Plug, Spark (B8Es) |
94701-00045-00 |
US $4.96 |
||
| replacement | |||||
|
2
|
2
BR8-ES000-00-00 Spark plug BR8ES |
BR8-ES000-00-00 |
US $20.32 |
||
|
3
|
3
90179-08314-00 Nut |
90179-08314-00 |
from US $10.08 |
||
|
4
|
4
90201-122A7-00 Washer, Plate (4L0) |
90201-122A7-00 |
from US $1.84 |
||
| replacements | |||||
|
4
|
4
90201-12047-00 Washer, Plate |
90201-12047-00 |
from US $1.84 |
||
|
4
|
4
90201-12749-00 Washer, Plate |
90201-12749-00 |
from US $1.84 |
||
|
5
|
5
4L0-11181-00-00 Gasket, Cylinder Head 1 |
4L0-11181-00-00 |
US $113.71 |
||
| replacement | |||||
|
5
|
5
4L0-11181-09-00 Gasket, Cylinder Head 1 |
4L0-11181-09-00 |
US $113.71 |
||
|
6
|
6
4L0-11311-10-00
Cylinder 1
|
4L0-11311-10-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
4L0-11321-10-00
Cylinder 2
|
4L0-11321-10-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
90105-08163-00 Bolt, Flange |
90105-08163-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
95027-08012-00 Bolt, Flange |
95027-08012-00 |
from US $1.56 |
||
|
9
|
9
90201-082A6-00 Washer, Plate |
90201-082A6-00 |
from US $1.34 |
||
|
10
|
10
278-11351-01-00 Gasket, Cylinder |
278-11351-01-00 |
from US $8.36 |
||
| replacement | |||||
|
10
|
10
278-11351-11-00 Gasket, Cylinder |
278-11351-11-00 |
from US $6.46 |
||
|
11
|
11
90116-08219-00 Bolt, Stud |
90116-08219-00 |
US $16.58 |
||
