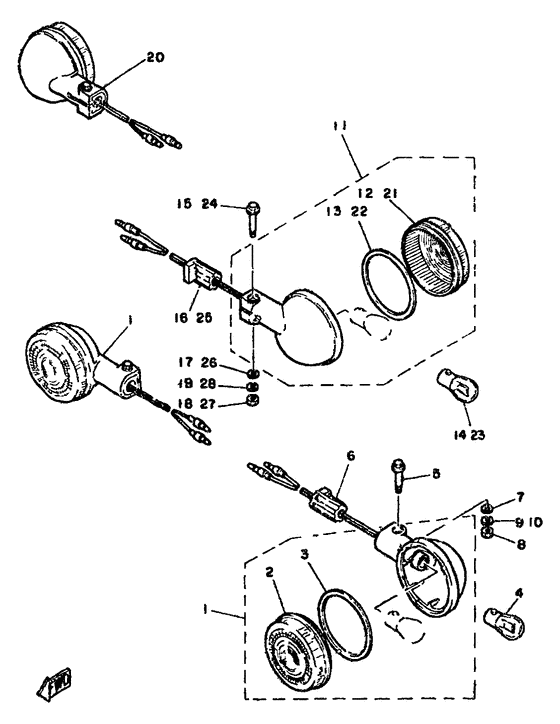

Flasher light Diagram Yamaha RD
- Year
- 1982
- Model code
- 4L0
- Sales region
- Europe (General) (999)
- Engine Capacity
- 350
- Model
- RD350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-83310-40-00 Front Flasher Light Assy 1 |
4L0-83310-40-00 |
US $86.07 |
||
|
2
|
2
3Y6-83312-00-00 Lens, Flasher |
3Y6-83312-00-00 |
from US $10.48 |
||
|
3
|
3
3Y6-83313-00-00 Gasket, Flshr Lens |
3Y6-83313-00-00 |
from US $4.39 |
||
|
5
|
5
3Y6-83317-00-00
Bolt, Flasher 1
|
3Y6-83317-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
4L0-83321-00-00 Damper, Flasher 1 |
4L0-83321-00-00 |
from US $12.89 |
||
|
7
|
7
929-06056-00-00
Washer, Plate
|
929-06056-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
8
|
8
95306-05600-00 Nut |
95306-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
8
|
8
95317-05600-00 Nut |
95317-05600-00 |
from US $2.13 |
||
|
9
|
9
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
10
|
10
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
11
|
11
4L0-83330-40-00 Rear Flasher Light Assy 1 |
4L0-83330-40-00 |
US $86.07 |
||
|
12
|
12
4L0-83332-00-00
Lens, Flasher
|
4L0-83332-00-00 |
— | ||
|
13
|
13
3Y6-83313-00-00 Gasket, Flshr Lens |
3Y6-83313-00-00 |
from US $4.39 |
||
|
15
|
15
3Y6-83317-00-00
Bolt, Flasher 1
|
3Y6-83317-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
4L0-83321-00-00 Damper, Flasher 1 |
4L0-83321-00-00 |
from US $12.89 |
||
|
17
|
17
929-06056-00-00
Washer, Plate
|
929-06056-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
18
|
18
95306-05600-00 Nut |
95306-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
18
|
18
95317-05600-00 Nut |
95317-05600-00 |
from US $2.13 |
||
|
19
|
19
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
20
|
20
4L0-83340-40-00 Flasher Light Assy 2 |
4L0-83340-40-00 |
US $86.07 |
||
| replacement | |||||
|
20
|
20
4L0-83330-40-00 Rear Flasher Light Assy 1 |
4L0-83330-40-00 |
US $86.07 |
||
|
21
|
21
4L0-83332-00-00
Lens, Flasher
|
4L0-83332-00-00 |
— | ||
|
22
|
22
3Y6-83313-00-00 Gasket, Flshr Lens |
3Y6-83313-00-00 |
from US $4.39 |
||
|
24
|
24
3Y6-83317-00-00
Bolt, Flasher 1
|
3Y6-83317-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
4L0-83321-00-00 Damper, Flasher 1 |
4L0-83321-00-00 |
from US $12.89 |
||
|
26
|
26
929-06056-00-00
Washer, Plate
|
929-06056-00-00 |
— | ||
| replacement | |||||
|
26
|
26
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
27
|
27
95306-05600-00 Nut |
95306-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
27
|
27
95317-05600-00 Nut |
95317-05600-00 |
from US $2.13 |
||
|
28
|
28
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
28
|
28
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
