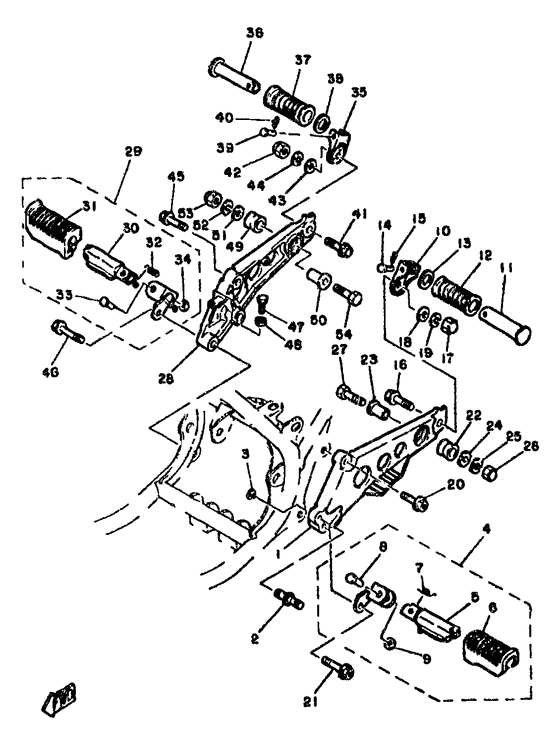

Footrest Diagram Yamaha RD
- Year
- 1982
- Model code
- 4L0
- Sales region
- Europe (General) (999)
- Engine Capacity
- 350
- Model
- RD350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-27442-00-00
Bracket 2
|
4L0-27442-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
4L0-27427-00-00
Shaft
|
4L0-27427-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
93430-10016-00 Circlip |
93430-10016-00 |
from US $1.35 |
||
| replacement | |||||
|
3
|
3
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
4
|
4
4L0-27410-00-00 Front Footrest Assy (Left) |
4L0-27410-00-00 |
US $163.03 |
||
|
5
|
5
1T3-27451-00-00 Footrest, Bracket Left |
1T3-27451-00-00 |
US $34.34 |
||
| replacement | |||||
|
5
|
5
3CK-27451-00-00
Footrest
|
3CK-27451-00-00 |
— | ||
|
6
|
6
1J7-27413-01-00 Cover, Footrest |
1J7-27413-01-00 |
from US $32.76 |
||
| replacement | |||||
|
6
|
6
4L0-27423-00-00 Cover, Footrest |
4L0-27423-00-00 |
from US $36.06 |
||
|
7
|
7
90508-20023-00 Spring, Torsion |
90508-20023-00 |
from US $1.70 |
||
|
8
|
8
90243-08006-00 Pin |
90243-08006-00 |
from US $4.68 |
||
|
9
|
9
90201-06042-00 Washer, Plate |
90201-06042-00 |
from US $1.70 |
||
|
10
|
10
4L0-27432-00-00
Bracket 1
|
4L0-27432-00-00 |
— | ||
|
11
|
11
120-27431-00-00 Footrest, Rear 1 |
120-27431-00-00 |
from US $25.64 |
||
| replacement | |||||
|
11
|
11
2GV-27431-00-00 Footrest, Rear 1 |
2GV-27431-00-00 |
from US $6.30 |
||
|
12
|
12
120-27433-00-00 Cover, Rear Footrest |
120-27433-00-00 |
from US $2.32 |
||
|
13
|
13
902-01202-79-00 Washer, Plate |
902-01202-79-00 |
from US $1.28 |
||
|
14
|
14
91701-06035-00 Pin, Clevis (2F9) |
91701-06035-00 |
from US $1.98 |
||
|
15
|
15
914-01160-12-00
Pin, Cotter
|
914-01160-12-00 |
— | ||
| replacement | |||||
|
15
|
15
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.55 |
||
|
16
|
16
95811-10035-00 Bolt, Flange (4L0) |
95811-10035-00 |
from US $1.56 |
||
| replacements | |||||
|
16
|
16
90105-10115-00 Bolt, Flange |
90105-10115-00 |
from US $6.52 |
||
|
16
|
16
90105-10289-00 Bolt, Washer Based |
90105-10289-00 |
US $6.52 |
||
|
16
|
16
958-17100-35-00 Bolt, Flange |
958-17100-35-00 |
from US $1.56 |
||
|
17
|
17
90176-10009-00 Nut, Cap (371) |
90176-10009-00 |
from US $1.56 |
||
|
18
|
18
92901-10200-00 Washer |
92901-10200-00 |
from US $0.90 |
||
| replacement | |||||
|
18
|
18
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.07 |
||
|
19
|
19
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
19
|
19
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
20
|
20
90105-10164-00
Bolt, Flange
|
90105-10164-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
90105-10036-00 Bolt, Flange |
90105-10036-00 |
from US $4.25 |
||
|
22
|
22
2H7-27414-00-00 Damper, Footrest |
2H7-27414-00-00 |
from US $5.10 |
||
|
23
|
23
90387-10636-00 Collar |
90387-10636-00 |
from US $7.79 |
||
|
24
|
24
90201-10669-00 Washer, Plate |
90201-10669-00 |
from US $1.28 |
||
|
25
|
25
92903-10100-00 Washer, Spring |
92903-10100-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
26
|
26
90176-10009-00 Nut, Cap (371) |
90176-10009-00 |
from US $1.56 |
||
|
27
|
27
90101-10065-00 Bolt |
90101-10065-00 |
from US $3.11 |
||
| replacement | |||||
|
27
|
27
90101-10568-00 Bolt (21V) |
90101-10568-00 |
from US $4.53 |
||
|
28
|
28
4L0-27443-00-00
Bracket 3
|
4L0-27443-00-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
4L0-27420-00-00 Front Footrest Assy (Right) |
4L0-27420-00-00 |
US $163.03 |
||
|
30
|
30
3N6-27461-00-00
Footrest
|
3N6-27461-00-00 |
— | ||
|
31
|
31
4L0-27423-00-00 Cover, Footrest |
4L0-27423-00-00 |
from US $36.06 |
||
|
32
|
32
90506-16208-00
Spring, Tension
|
90506-16208-00 |
— | ||
|
33
|
33
90243-08006-00 Pin |
90243-08006-00 |
from US $4.68 |
||
|
34
|
34
90201-06042-00 Washer, Plate |
90201-06042-00 |
from US $1.70 |
||
|
35
|
35
4L0-27432-00-00
Bracket 1
|
4L0-27432-00-00 |
— | ||
|
36
|
36
120-27431-00-00 Footrest, Rear 1 |
120-27431-00-00 |
from US $25.64 |
||
| replacement | |||||
|
36
|
36
2GV-27431-00-00 Footrest, Rear 1 |
2GV-27431-00-00 |
from US $6.30 |
||
|
37
|
37
120-27433-00-00 Cover, Rear Footrest |
120-27433-00-00 |
from US $2.32 |
||
|
38
|
38
902-01202-79-00 Washer, Plate |
902-01202-79-00 |
from US $1.28 |
||
|
39
|
39
91701-06035-00 Pin, Clevis (2F9) |
91701-06035-00 |
from US $1.98 |
||
|
40
|
40
914-01160-12-00
Pin, Cotter
|
914-01160-12-00 |
— | ||
| replacement | |||||
|
40
|
40
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.55 |
||
|
41
|
41
95811-10035-00 Bolt, Flange (4L0) |
95811-10035-00 |
from US $1.56 |
||
| replacements | |||||
|
41
|
41
90105-10115-00 Bolt, Flange |
90105-10115-00 |
from US $6.52 |
||
|
41
|
41
90105-10289-00 Bolt, Washer Based |
90105-10289-00 |
US $6.52 |
||
|
41
|
41
958-17100-35-00 Bolt, Flange |
958-17100-35-00 |
from US $1.56 |
||
|
42
|
42
90176-10009-00 Nut, Cap (371) |
90176-10009-00 |
from US $1.56 |
||
|
43
|
43
92901-10200-00 Washer |
92901-10200-00 |
from US $0.90 |
||
| replacement | |||||
|
43
|
43
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.07 |
||
|
44
|
44
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
44
|
44
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
45
|
45
90105-10164-00
Bolt, Flange
|
90105-10164-00 |
— | ||
| replacement | |||||
|
45
|
45
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
46
|
46
90105-10036-00 Bolt, Flange |
90105-10036-00 |
from US $4.25 |
||
|
47
|
47
901-01062-88-00
Bolt, Hexagon (360)
|
901-01062-88-00 |
— | ||
| replacement | |||||
|
47
|
47
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
48
|
48
95301-06700-00 Nut |
95301-06700-00 |
from US $1.43 |
||
| replacements | |||||
|
48
|
48
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
48
|
48
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
|
49
|
49
2H7-27414-00-00 Damper, Footrest |
2H7-27414-00-00 |
from US $5.10 |
||
|
50
|
50
90387-10636-00 Collar |
90387-10636-00 |
from US $7.79 |
||
|
51
|
51
90201-10669-00 Washer, Plate |
90201-10669-00 |
from US $1.28 |
||
|
52
|
52
92903-10100-00 Washer, Spring |
92903-10100-00 |
from US $1.56 |
||
| replacement | |||||
|
52
|
52
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
53
|
53
90176-10009-00 Nut, Cap (371) |
90176-10009-00 |
from US $1.56 |
||
|
54
|
54
90101-10065-00 Bolt |
90101-10065-00 |
from US $3.11 |
||
| replacement | |||||
|
54
|
54
90101-10568-00 Bolt (21V) |
90101-10568-00 |
from US $4.53 |
||
