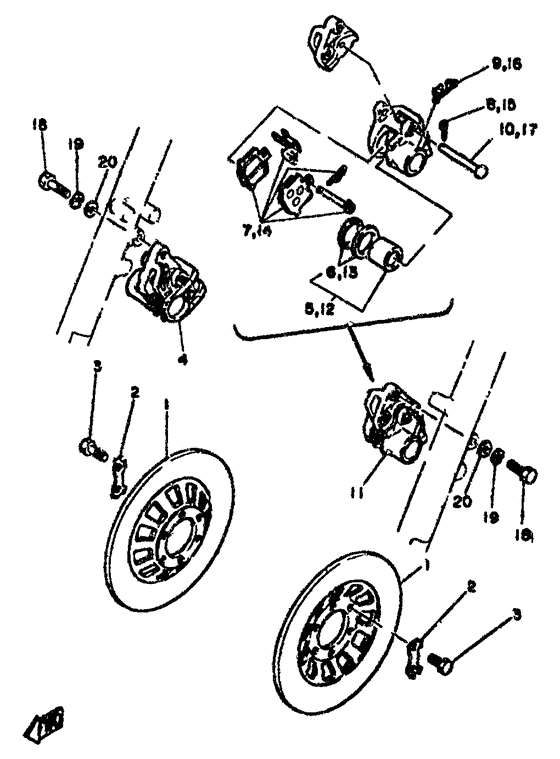

Front brake caliper Diagram Yamaha RD
- Year
- 1982
- Model code
- 4L0
- Sales region
- Europe (General) (999)
- Engine Capacity
- 350
- Model
- RD350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1L9-25831-00-00
Disc, Brake (Right)
|
1L9-25831-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
1J3-25834-01-00 Washer, Lock |
1J3-25834-01-00 |
from US $9.22 |
||
|
3
|
3
90101-08312-00 Bolt |
90101-08312-00 |
from US $4.39 |
||
|
4
|
4
4L0-25810-20-00
Caliper Assy
|
4L0-25810-20-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
4W1-W0057-00-00 Piston Assembly, Caliper |
4W1-W0057-00-00 |
from US $154.74 |
||
|
6
|
6
4L0-W0047-01-00 Caliper Seal Kit |
4L0-W0047-01-00 |
from US $50.90 |
||
|
7
|
7
4W1-W0045-00-00 Brake Pad Kit,front |
4W1-W0045-00-00 |
from US $51.48 |
||
| replacement | |||||
|
7
|
7
23W-W0045-02-00 Brake Pad Kit |
23W-W0045-02-00 |
from US $59.26 |
||
|
8
|
8
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.13 |
||
|
9
|
9
1J3-W0048-00-00 Bleed Screw Kit |
1J3-W0048-00-00 |
from US $14.45 |
||
|
10
|
10
4W1-25914-00-00
Pin, Slide
|
4W1-25914-00-00 |
— | ||
|
11
|
11
4L0-25810-30-00
Caliper Assy
|
4L0-25810-30-00 |
— | ||
|
12
|
12
4W1-W0057-00-00 Piston Assembly, Caliper |
4W1-W0057-00-00 |
from US $154.74 |
||
|
13
|
13
4L0-W0047-01-00 Caliper Seal Kit |
4L0-W0047-01-00 |
from US $50.90 |
||
|
14
|
14
4W1-W0045-10-00 Brake Pad Kit,front |
4W1-W0045-10-00 |
from US $51.48 |
||
| replacement | |||||
|
14
|
14
23W-W0045-02-00 Brake Pad Kit |
23W-W0045-02-00 |
from US $59.26 |
||
|
15
|
15
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.13 |
||
|
16
|
16
1J3-W0048-00-00 Bleed Screw Kit |
1J3-W0048-00-00 |
from US $14.45 |
||
|
17
|
17
4W1-25914-00-00
Pin, Slide
|
4W1-25914-00-00 |
— | ||
|
18
|
18
90101-10308-00 Bolt, Washer Based |
90101-10308-00 |
from US $5.67 |
||
|
19
|
19
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
19
|
19
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
20
|
20
92901-10200-00 Washer |
92901-10200-00 |
from US $0.90 |
||
| replacement | |||||
|
20
|
20
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.07 |
||
