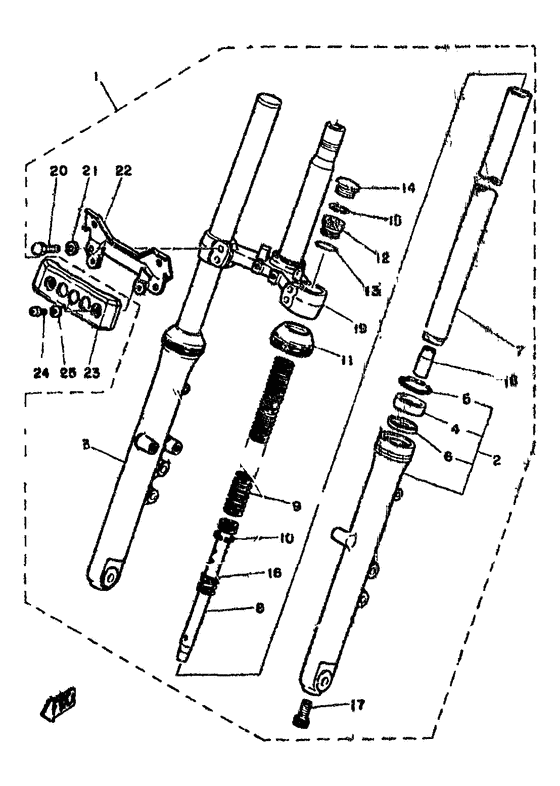

Front fork Diagram Yamaha RD
- Year
- 1982
- Model code
- 4L0
- Sales region
- Europe (General) (999)
- Engine Capacity
- 350
- Model
- RD350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-23101-00-00
Front Fork Assy
|
4L0-23101-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
4L0-23126-00-38
Tube, Outer (L.h)
|
4L0-23126-00-38 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
4L0-23136-00-38
Tube, Outer 2
|
4L0-23136-00-38 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
4L0-23145-00-00
Oil Seal
|
4L0-23145-00-00 |
— | ||
| replacement | |||||
|
4
|
4
4L0-W2312-00-00 Oil Seal Set |
4L0-W2312-00-00 |
from US $32.02 |
||
|
5
|
5
2A6-23156-00-00 Clip, Oil Seal |
2A6-23156-00-00 |
from US $10.06 |
||
|
6
|
6
4L0-23118-00-00 Spacer |
4L0-23118-00-00 |
US $48.22 |
||
| replacement | |||||
|
6
|
6
4L0-W2312-00-00 Oil Seal Set |
4L0-W2312-00-00 |
from US $32.02 |
||
|
7
|
7
4L0-23110-00-00 Inner Tube Comp.1 |
4L0-23110-00-00 |
US $441.94 |
||
|
8
|
8
4L0-23173-00-00
Spindle, Taper
|
4L0-23173-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
4L0-23141-00-00
Spring, Front Fork
|
4L0-23141-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
1E7-23157-00-00 Ring, Piston Front Fork |
1E7-23157-00-00 |
from US $8.80 |
||
|
11
|
11
4L0-23144-00-00 Seal, Dust |
4L0-23144-00-00 |
US $63.55 |
||
|
12
|
12
1L9-23111-00-00 Seat, Spring |
1L9-23111-00-00 |
from US $15.58 |
||
|
13
|
13
1L9-23114-00-00 Gasket |
1L9-23114-00-00 |
from US $4.96 |
||
|
14
|
14
4L0-23154-00-00 Cap |
4L0-23154-00-00 |
US $22.95 |
||
|
15
|
15
1L9-23183-00-00 Circlip |
1L9-23183-00-00 |
from US $4.11 |
||
|
16
|
16
1E7-23151-00-00
Spring, Rebound
|
1E7-23151-00-00 |
— | ||
|
17
|
17
3M7-23181-00-00 Bolt, Hexagon Socket Head |
3M7-23181-00-00 |
from US $8.08 |
||
|
18
|
18
1L9-23166-00-00 Taper, Spindle |
1L9-23166-00-00 |
US $15.58 |
||
|
19
|
19
4L0-23340-00-90
Under Bracket Comp
|
4L0-23340-00-90 |
— | ||
|
20
|
20
97313-08035-00 Bolt |
97313-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
20
|
20
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
21
|
21
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
21
|
21
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
22
|
22
4L0-23377-01-00
Bracket, Horn
|
4L0-23377-01-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
4L0-23122-00-00
Cover, Outer 1
|
4L0-23122-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
985-06050-16-00
Screw, Pan Head
|
985-06050-16-00 |
— | ||
| replacements | |||||
|
24
|
24
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
24
|
24
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
25
|
25
929-06056-00-00
Washer, Plate
|
929-06056-00-00 |
— | ||
| replacement | |||||
|
25
|
25
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
